CaddxFPV Ascent GT Pro VRX

Name: CaddxFPV Ascent GT Pro VRX
Brand: Baltic Drones
SKU: WN02-FP008
Price: 255.55 EUR
Availability: OutOfStock

CaddxFPV Ascent GT Pro VRX

Prekės ženklas: CaddxFPV

€255,55

-% Išparduota

Mokesčiai įtraukti.

Upon request

Kiekis

Detailed information

Žiūrėti visą informaciją

Aprašymas
Susiję failai
Diskusija

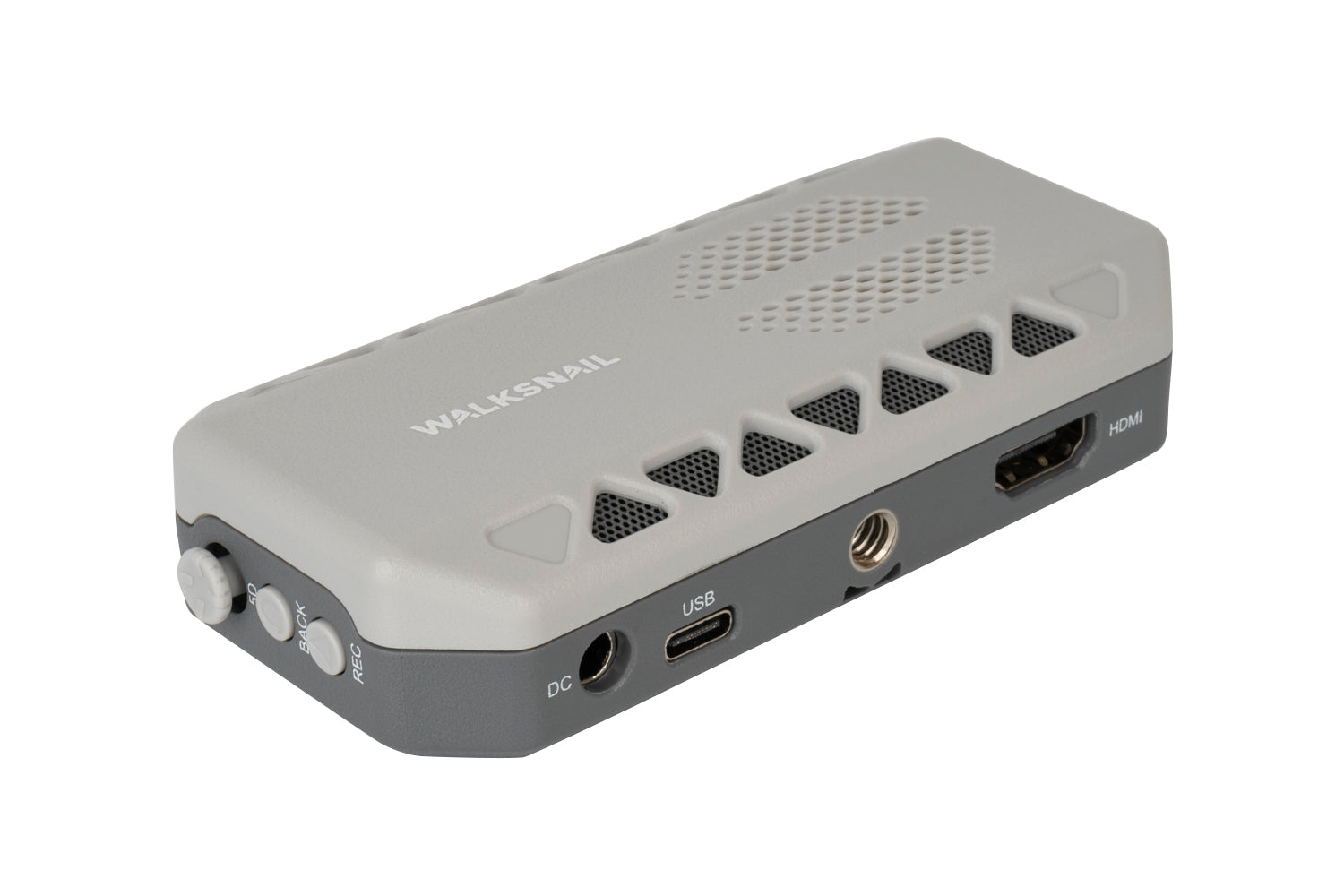

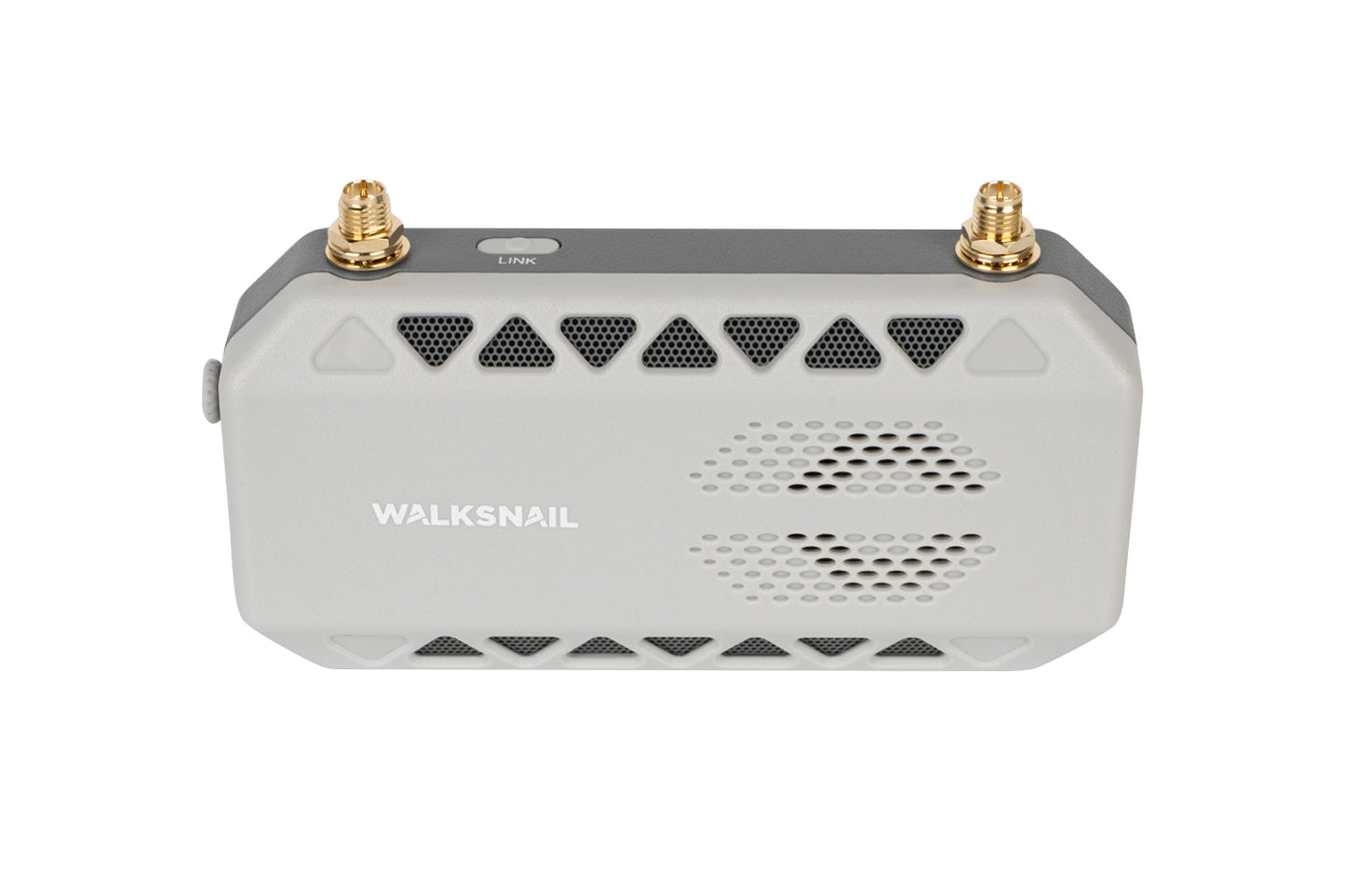

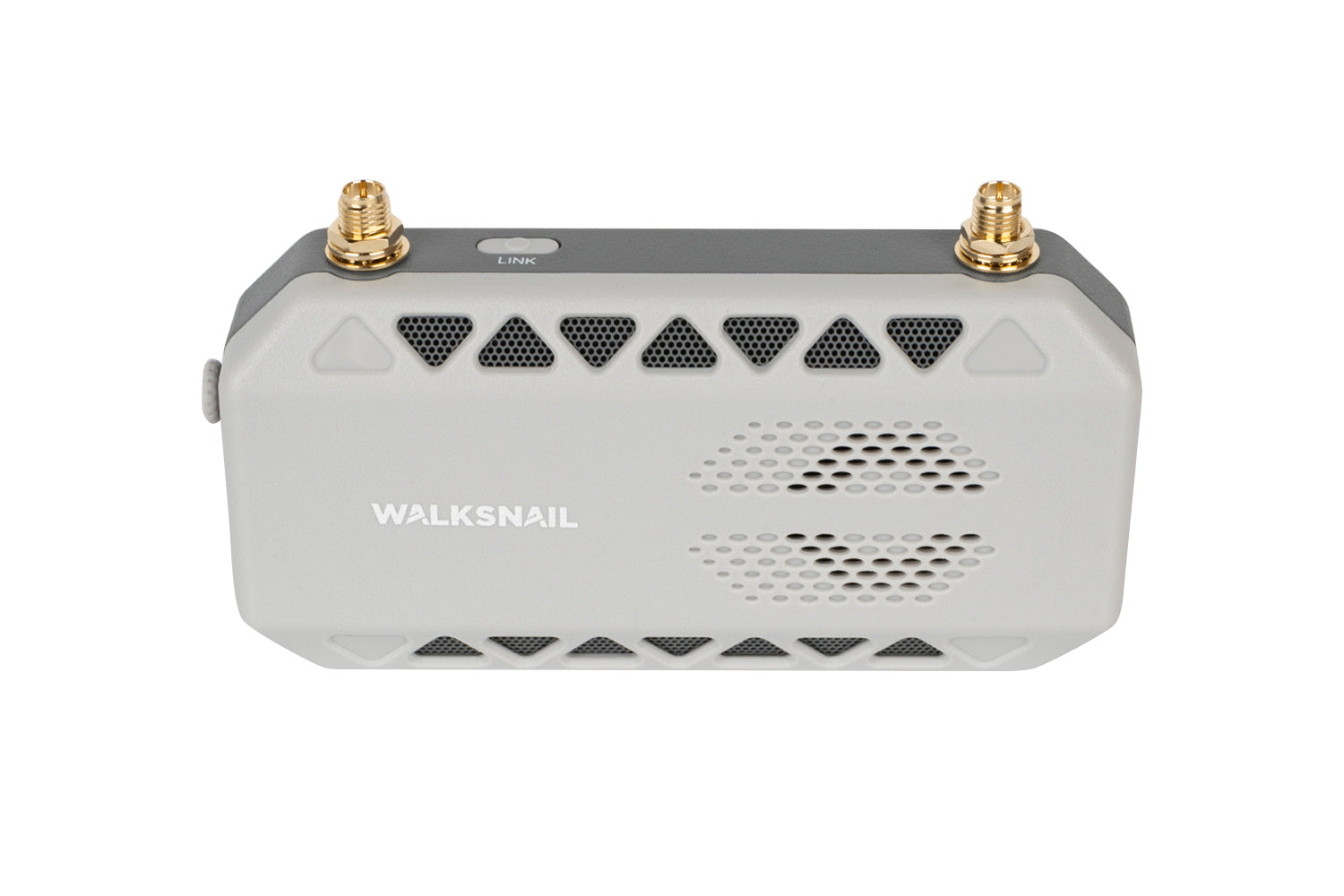

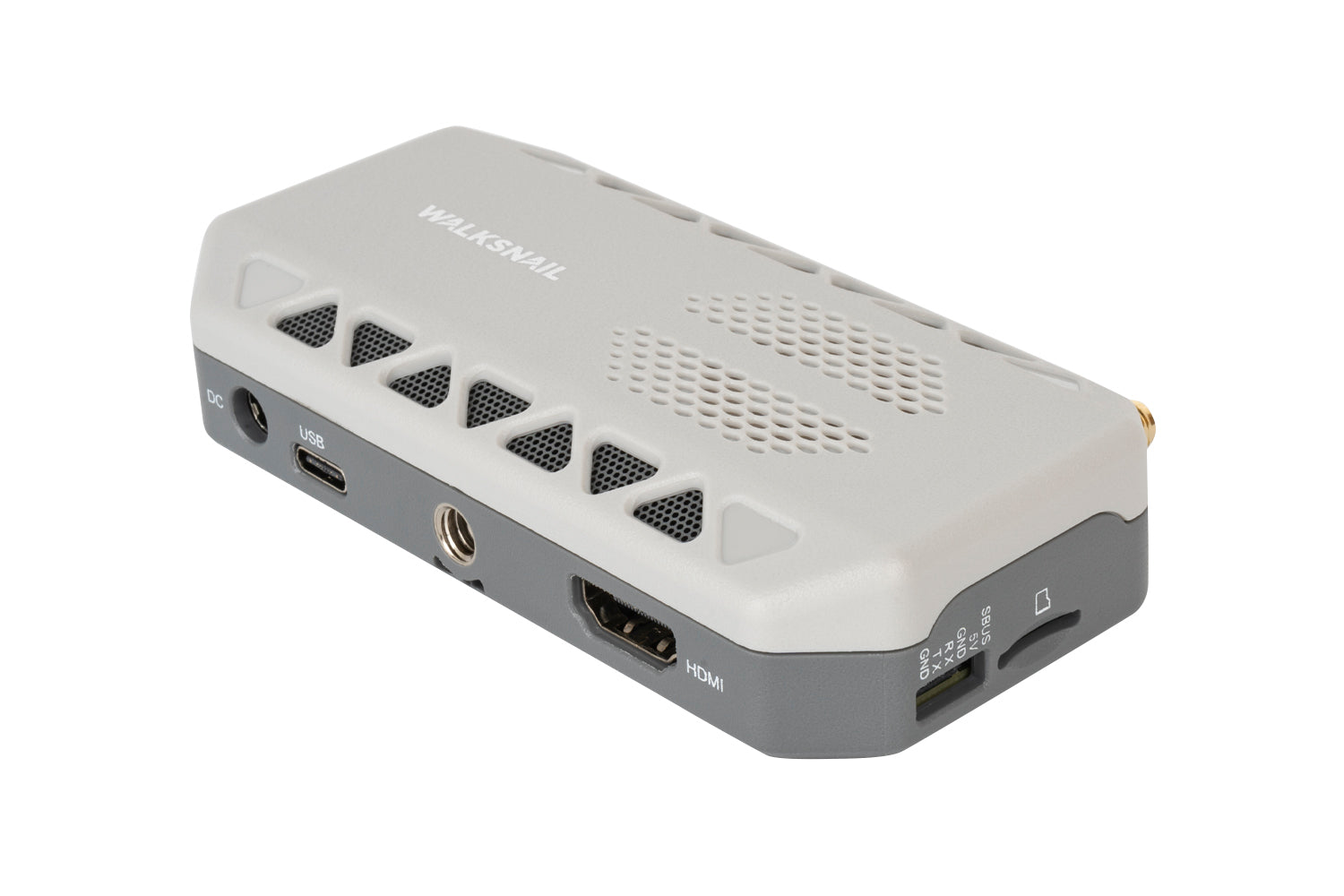

VRX CaddxFPV Ascent GT Pro

The VRX CaddxFPV Ascent GT Pro is a professional-grade ground video receiver for the Ascent HD system, delivering rock-solid signal stability, crisp 1080p HD output, and intelligent channel management across an ultra-wide 4.90–6.40 GHz band. Designed for pilots who demand reliability, clarity, and zero-lag responsiveness, it integrates advanced autohopping, DVR recording, and real-time telemetry into a compact, field-ready module.

Features:
- Ultra-Wide 4.90–6.40 GHz Frequency Range — Ensures stable reception from all Ascent HD VTX units, even in crowded multi-pilot environments.
- 42 Selectable Channels — Quickly switch between drones without signal clashes or delays.
- 1080p/60fps & 720p/60fps HDMI Output — Clean, high-definition video feed for FPV goggles, monitors, or broadcasting setups.
- Advanced Autohopping — Automatically identifies the cleanest frequency and adjusts bandwidth (2.5/5/10/20/40 MHz) for maximum stability.
- Built-In DVR — Record live flights directly to a microSD card (up to 256GB) for playback or post-flight analysis.
- Real-Time System Telemetry — Displays voltage, bitrate, signal strength, latency, SD card status, and more.
- Low Battery Warnings — Alerts you if the receiver or transmitter is running low, preventing unexpected signal loss.
- Intuitive Controls — Navigate settings with 5D joystick, link, back, and record buttons—no PC required.
- LHCP RP-SMA Antennas Included — 2 dBi Red Bird antennas provide strong, stable circular-polarized reception.
- Wide Voltage Support (7.4–25.2 V) — Easily integrates into any ground station or goggles setup.
- Compatible With Ascent/Cine Goggles & Avatar HD Cameras — Fully optimized for the Walksnail ecosystem.

VRX Specifications:
Communication Frequency: 4.90~6.40GHz
Transmitter Power(EIRP): 5.8GHz:< 35dbm, FCC:<20dBm, CE<14dBm,
SRRC:<20dBm
Transmission Bandwidth: 2.5/5/10/20/40MHz
I/O Interface: HDMI, MicroSD Card, DC5.5x2.1 mm
HDMI Out: 1080P60/50fps, 720P60/50fpS
Power Input: 7.4~25.2V
Storage: microSD up to 256GB
Channel: 42
Power Output: 4000mW
Auto Frequency Hopping: support
Auto Bandwidth: support
System: Acsent HD system
Weight: 117.9g
Dimension: 114.3x64x24mm

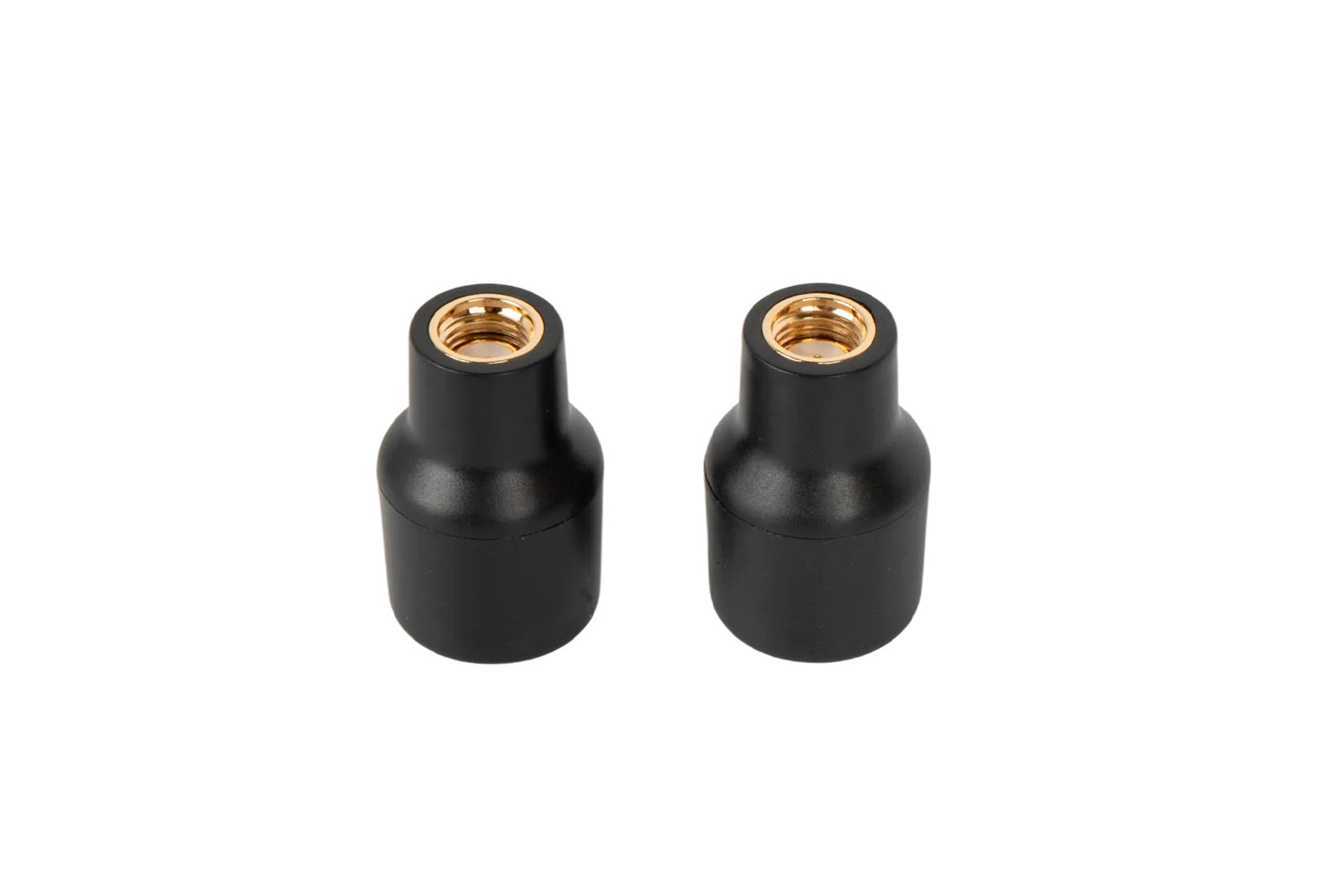

Antennas: LHCP RP-SMA (Red Bird, 2dBi)

Antenna specifications:
Model: Red bird
Polarization: LHCP
Bandwidth: 5.6GHz-6.0GHz
Average Gain: 2dBi
Radiation Efficiency: >97%
VSWR: <1 .3
Cross-Polar Rejection: -15to-30dB
Connector: RP - SMAx2
Dimension: 24.8x15.3mm
Weight: 3.5g

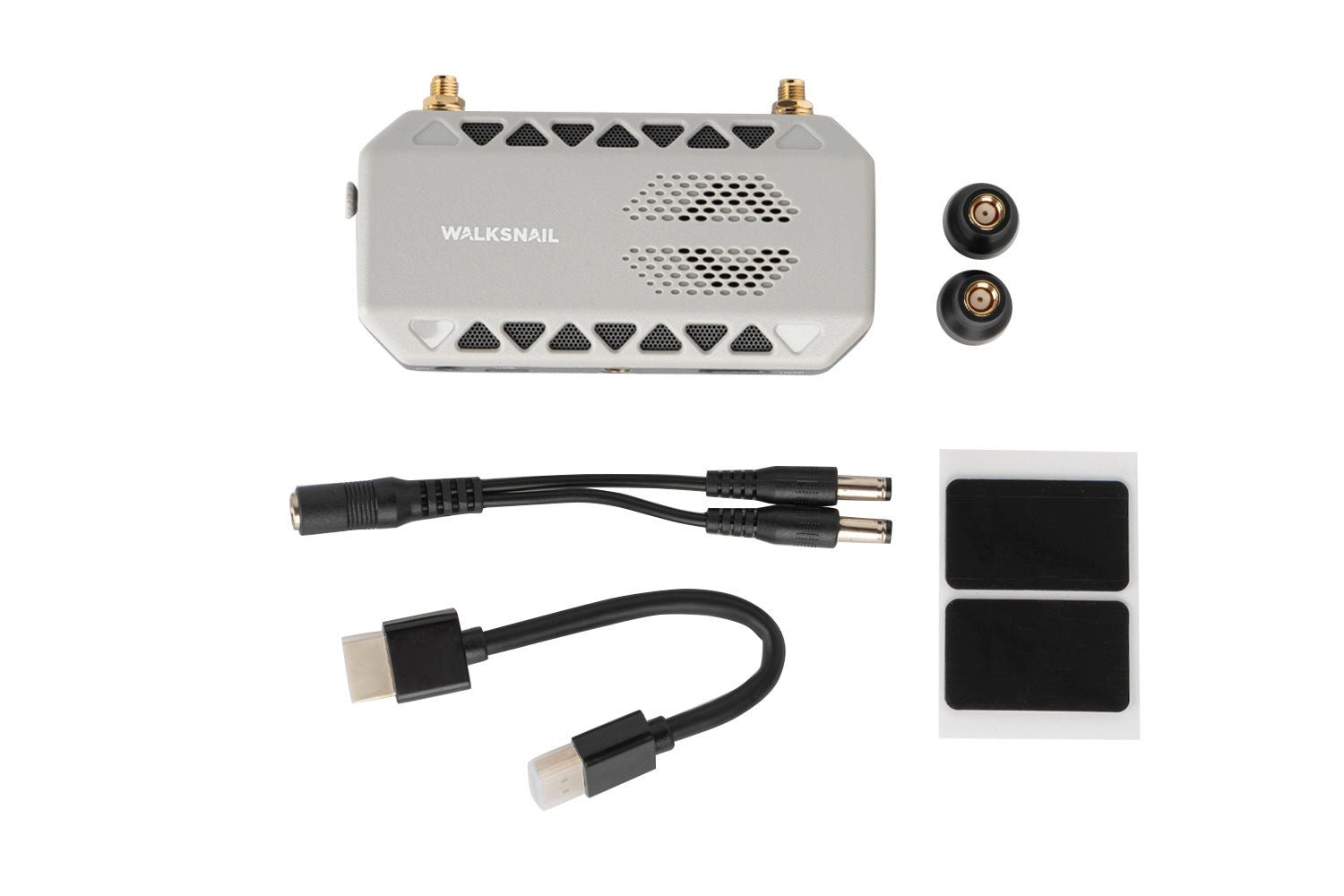

Package includes:
1x VRX CaddxFPV Walksnail Ascent GT Pro
2x LHCP Red Bird RP-SMA Antennas (2 dBi)
