• Stack Pilotix F722 V2&Bettle 3060 AM32 60A
    • photo 2024 11 11 11 42 41
    1 6

    Code: 5103

    Stack Pilotix F722 V2&Bettle 3060 AM32 60A

    Stack Pilotix F722 V2&Bettle 3060 AM32 60A

    Prekės ženklas: Pilotix

    €103,82
    €103,82 €103,82
    -0% Išparduota
    Mokesčiai įtraukti.
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Žiūrėti visą informaciją
    • Aprašymas
    • Susiję failai
    • Diskusija

    Stack Pilotix F722 V2&Bettle 3060 AM32 60A

    • CPU : STM32F722RET6
    • Giroskopas : ICM42688P
    • Barometras : BMP280
    • Juodoji dėžė : 16 MB
    • OSD : Taip
    • Variklio apkrovos lygis : 8 kanalai
    • UART : 5 kanalai
    • LED juostelė : Be
    • Garsinis signalas : Taip
    • BEC įtampa : 4,5 V / 2 A, 5 V / 2,5 A, 9 V / 3 A
    • Adresas : ELRS/CRSF/S.BUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX

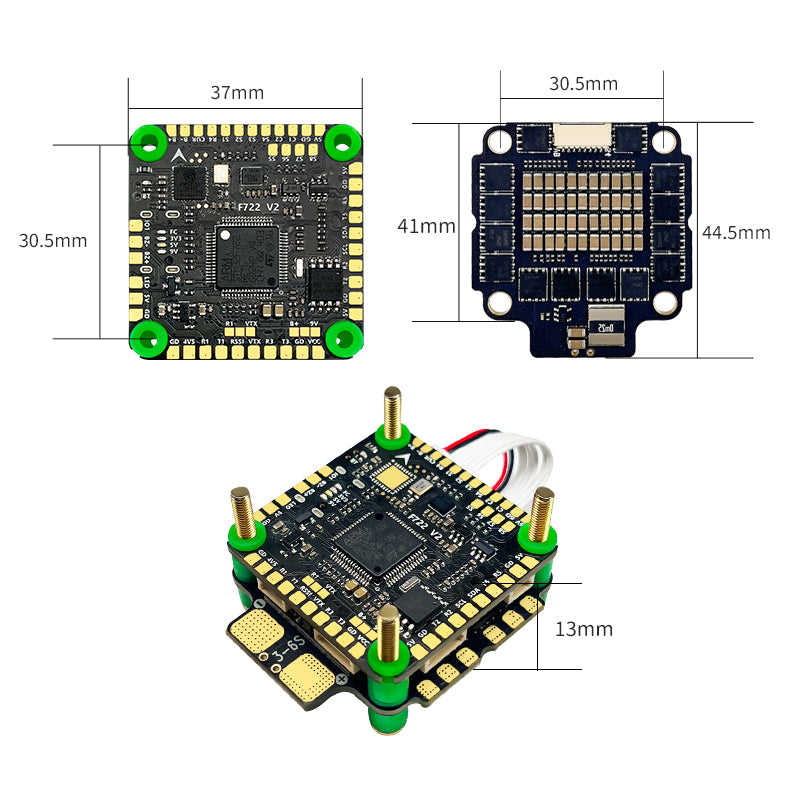

    • Matmenys : 37 mm x 37 mm
    • Svoris : 9,4 g
    • Montažo dydis : 30,5 mm x 30,5 mm
    • Programinė įranga : AOCODARCF722V2

    3060 elektroninis reguliatorius (ESC)

    • Nuolatinis „Proud“ : 60A x4
    • „Burst Peak Proud“ : 70A x4
    • Išjungtas signalas : Dshot300 / Dshot600 / PWM / dvikryptis Dshot
    • Telemetrija : Podporováno
    • Měřič Průtoku : Podporováno
    • Įkroviklis : 3-6S Lipo
    • Programinės įrangos pavadinimas : AM32_AORC_AT421A
    • Pracovní Teplota : 20°C ~ +85°C
    • Praktinis aukštis : 20% ~ 95%
    • Skladovací Teplota : 20°C ~ +70°C
    • Svoris : 13,9 g
    • Montavimas : M3 30,5 mm x 30,5 mm
    • Matmenys : 41 mm x 44,5 mm

    Obsah balení

    • 1x F722 V2 Řídící Jednotka (FC)
    • 1x Bettle 3060 ESC
    • 2x 8PIN SH1.0 kabelis
