Digital AirSpeed Sensor Kit TBS ASI2C

Name: Digital AirSpeed Sensor Kit TBS ASI2C
Brand: Baltic Drones
SKU: 7063
Price: 53.18 EUR
Availability: OutOfStock

Digital AirSpeed Sensor Kit TBS ASI2C

Prekės ženklas: TBS

€53,18

-% Išparduota

Mokesčiai įtraukti.

Upon request

Kiekis

Detailed information

Žiūrėti visą informaciją

Aprašymas
Susiję failai
Diskusija

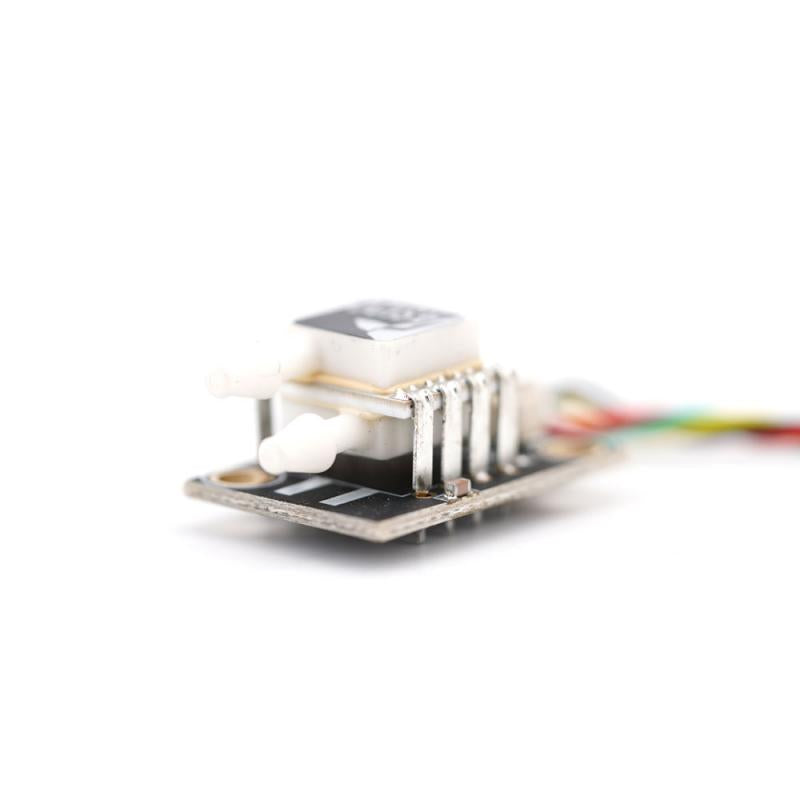

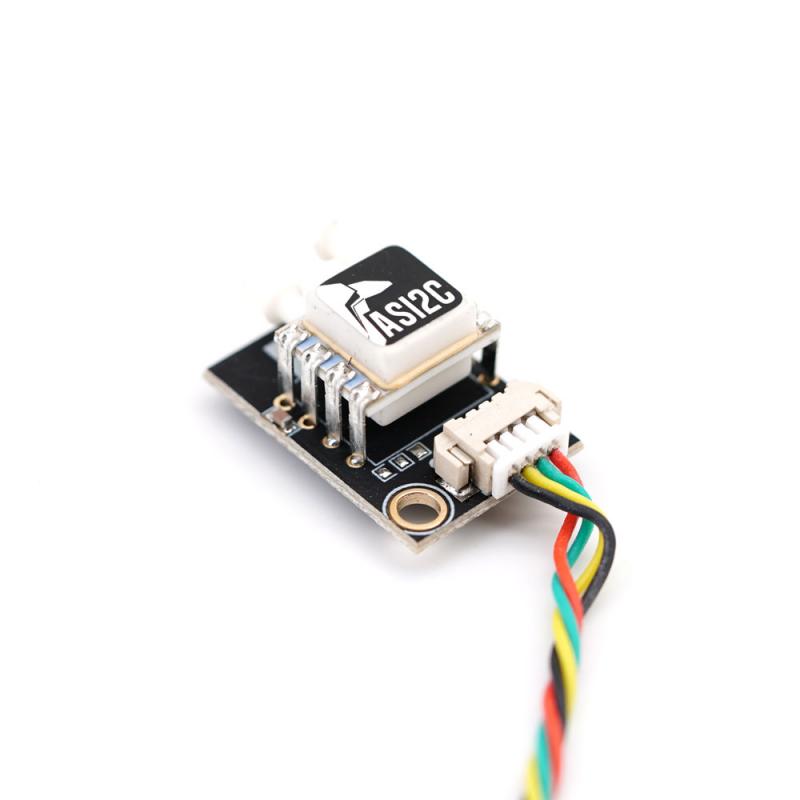

TBS ASI2C Digital Air Speed Sensor Kit TBS ASI2C Digital Air Speed Sensor Kit, equipped with a Measurement Specialties 4525DO sensor with a measuring range of 1 psi (approximately up to 100 m/s or 360 km/h or 223 mph), allows a resolution of 0.84 Pa, and data is delivered in 14 bits from a 24-bit delta-sigma ADC. It also measures temperature, allowing the actual airspeed to be calculated from the indicated airspeed using the MS5611 static pressure sensor on the Pixhawk. It is not affected by the heat of the surrounding processing components, so it is much closer to the air temperature than previous analog sensors. This kit is supported by all Pixhawk and PX4 autopilot boards and comes with M3/6-32 mounting holes. Features: - Temperature sensing: Integrated temperature measurement allows calculation of true airspeed (TAS) when used with a static pressure sensor (e.g., MS5611 on Pixhawk).
- Heat-resistant design: Protected from heat generated by surrounding electronics to ensure reliable temperature measurements. Specifications: Pressure sensor: Uses a Measurement Specialties MS4525DO digital sensor.
Pressure range: Up to 1 psi (~0–100 m/s, ~360 km/h, ~223 mph) Resolution: 0.84 Pa, ensuring highly accurate measurements

Heat resistance: Protected from heat from surrounding electronics, ensuring that the measured temperature is close to the actual ambient air temperature Interface: I2C digital interface, compatible with 3.3 V Pixhawk/PX4 flight controllers

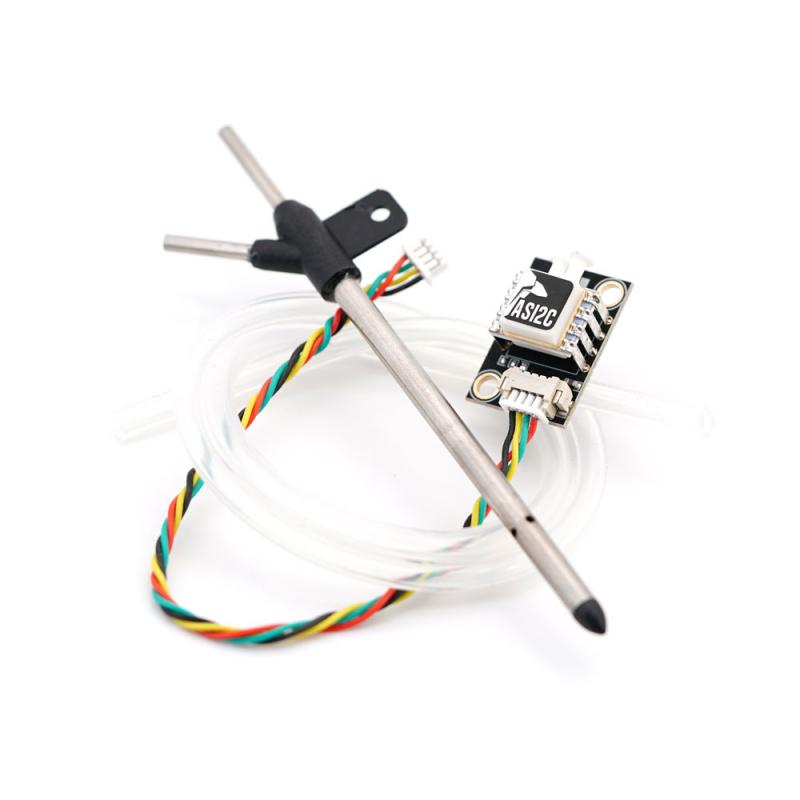

Mounting: Equipped with M3 / 6-32 mounting holes for secure installation. Package includes: 1x TBS ASI2C digital airspeed sensor kit 1x Pitot tube 1x Silicone tube 1x 4-pin cable
