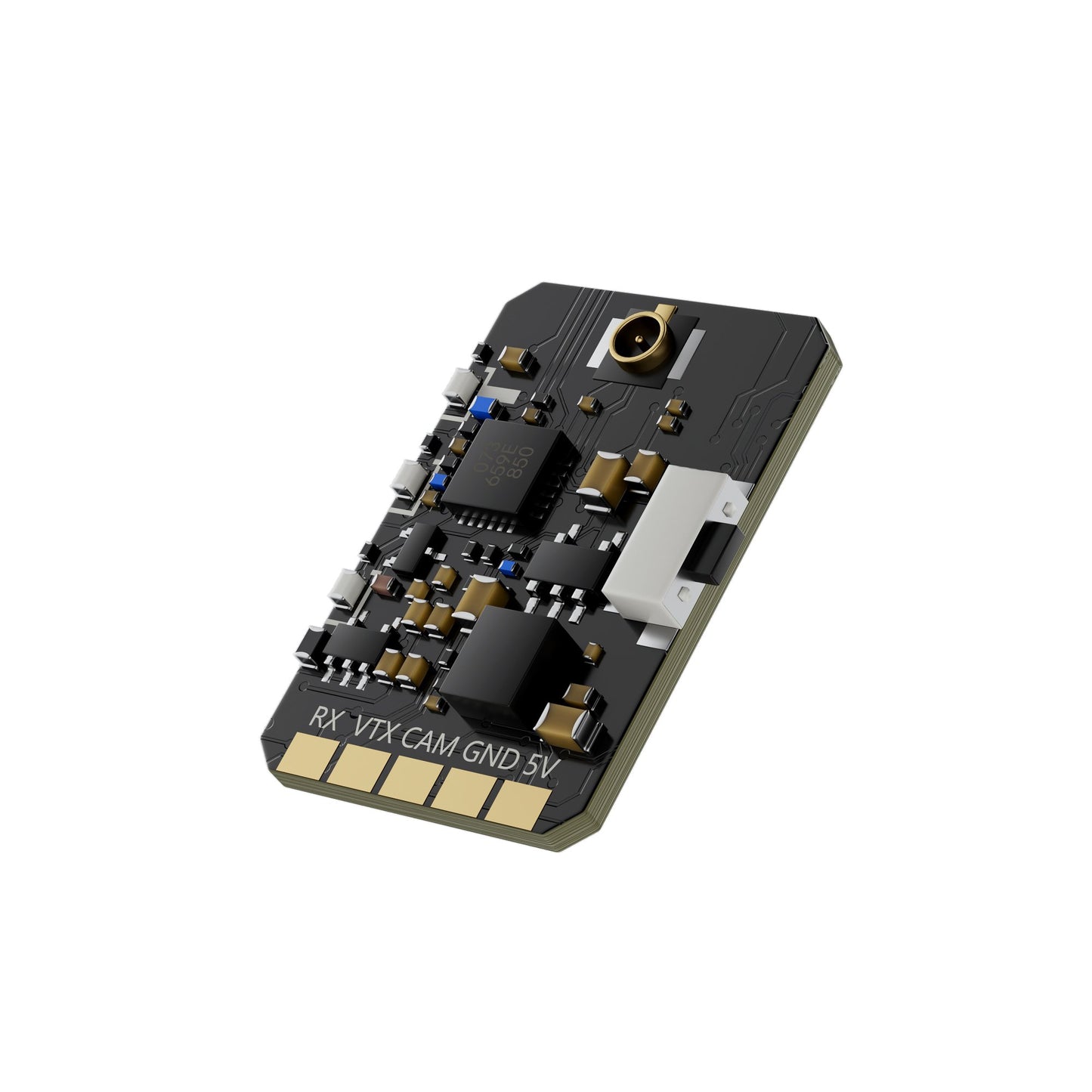

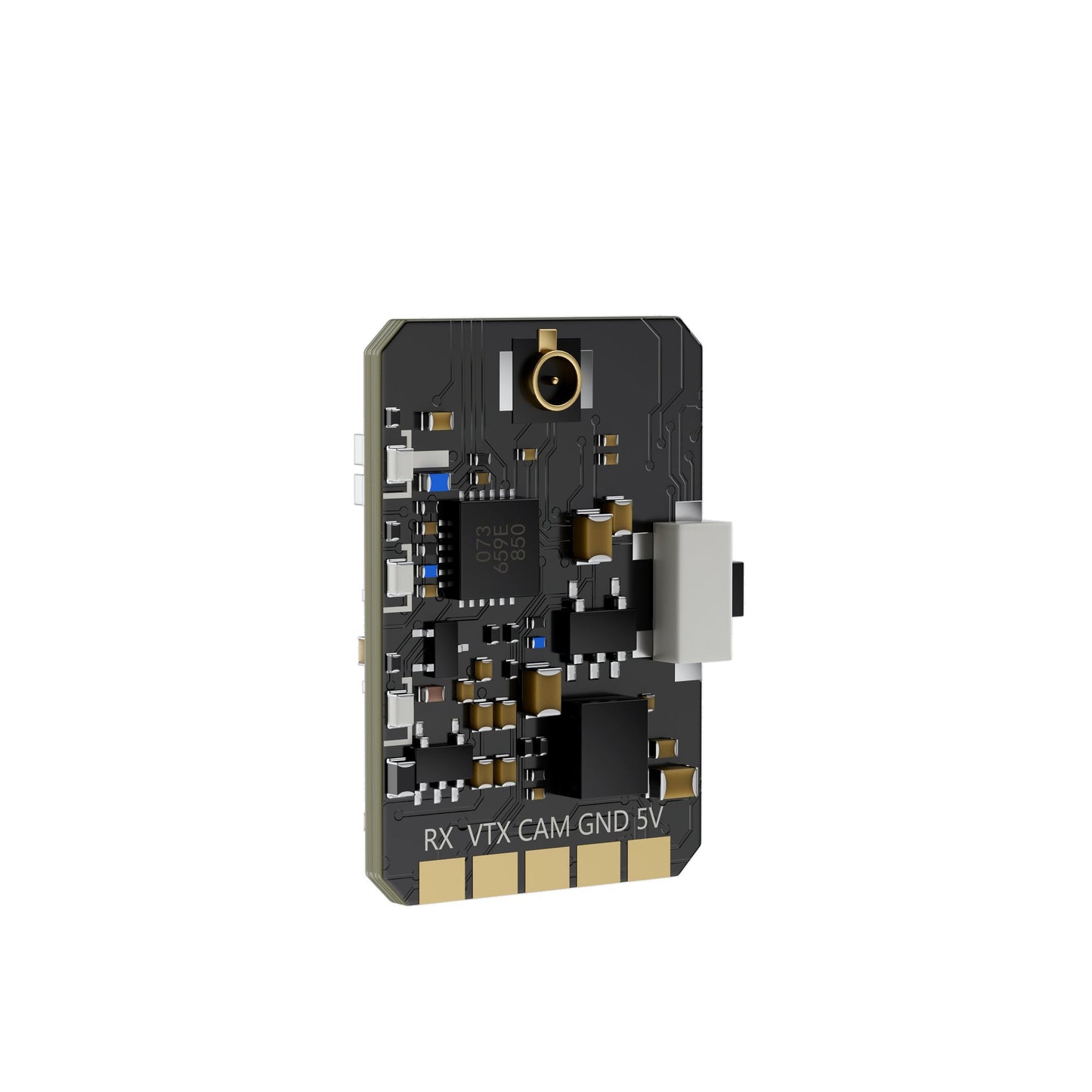

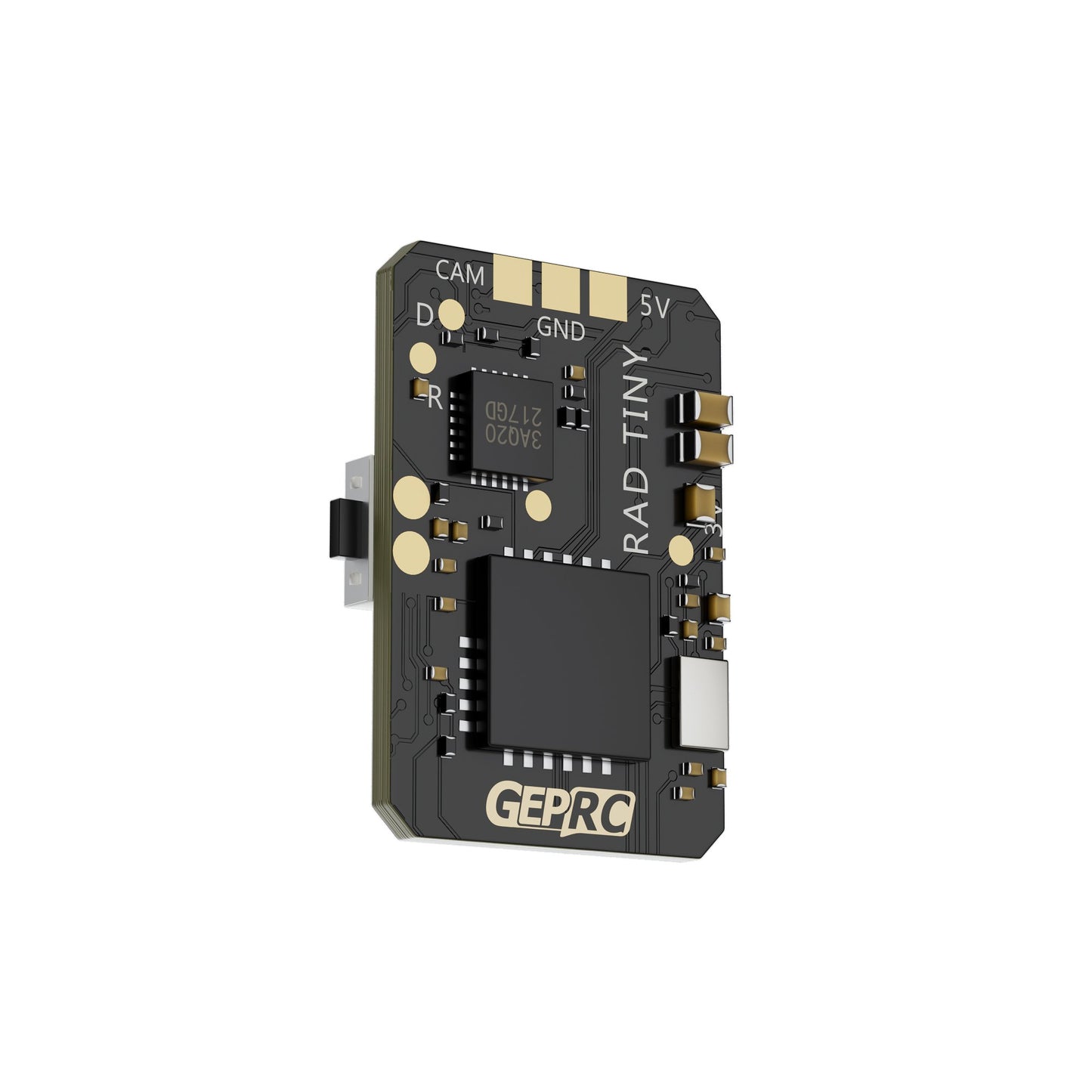

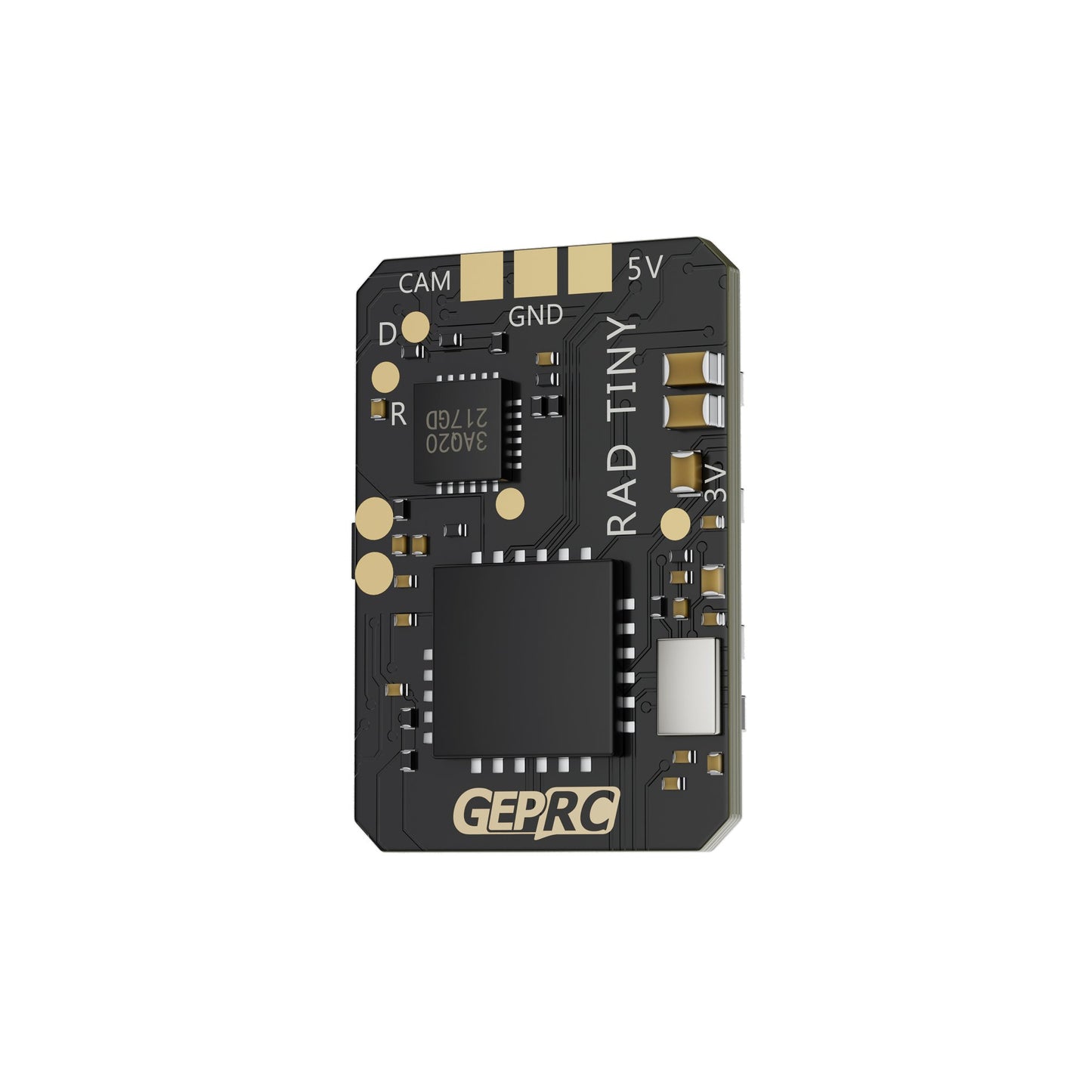

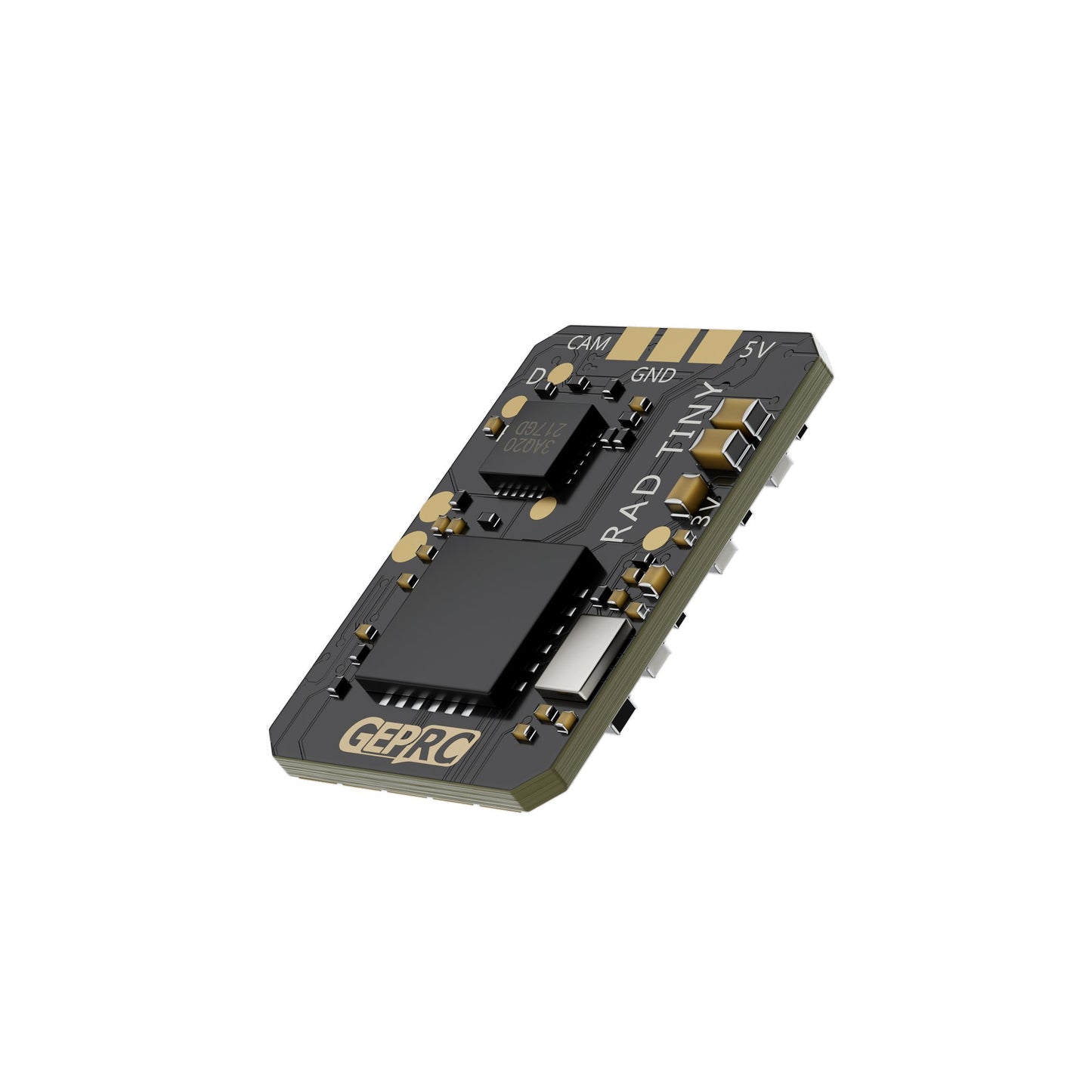

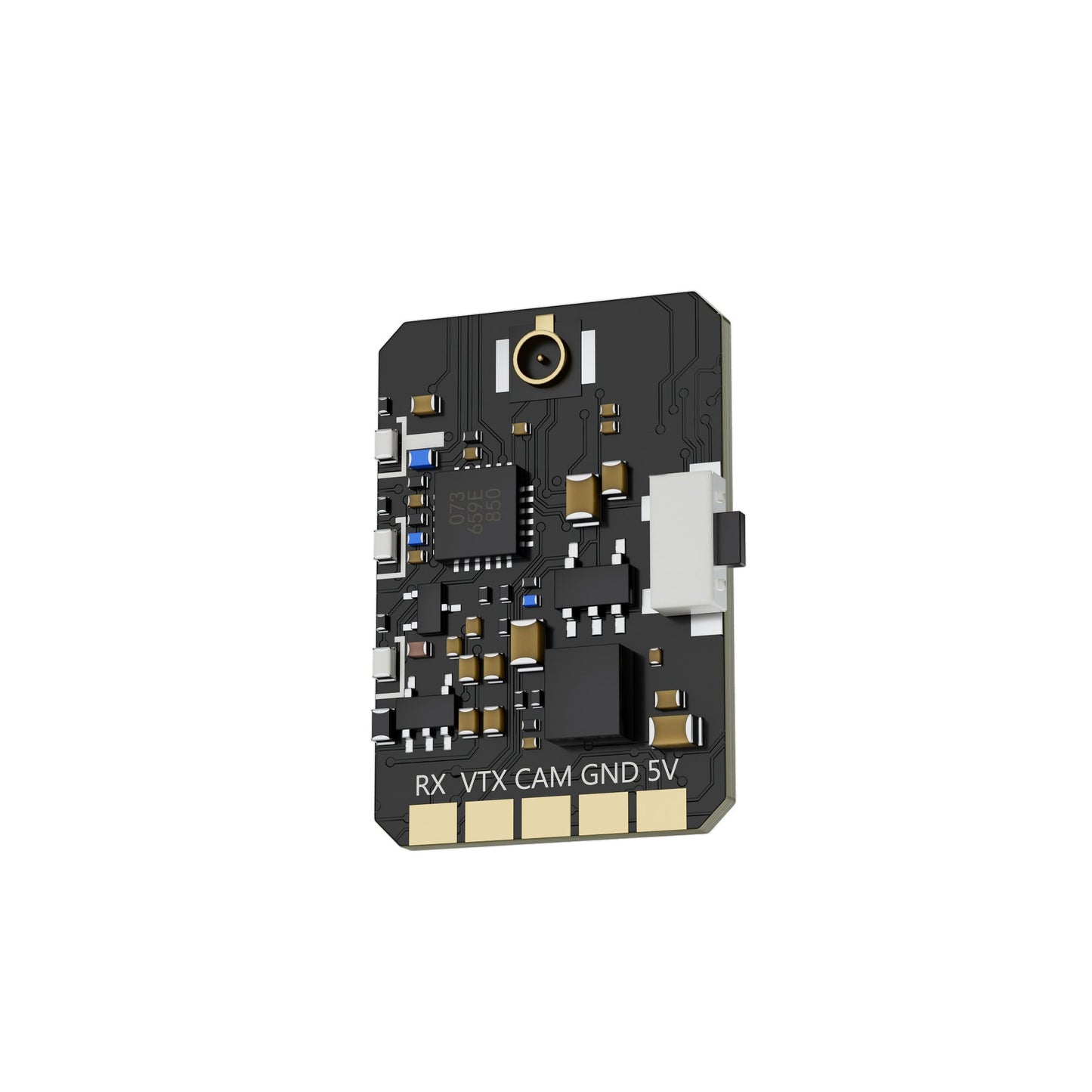

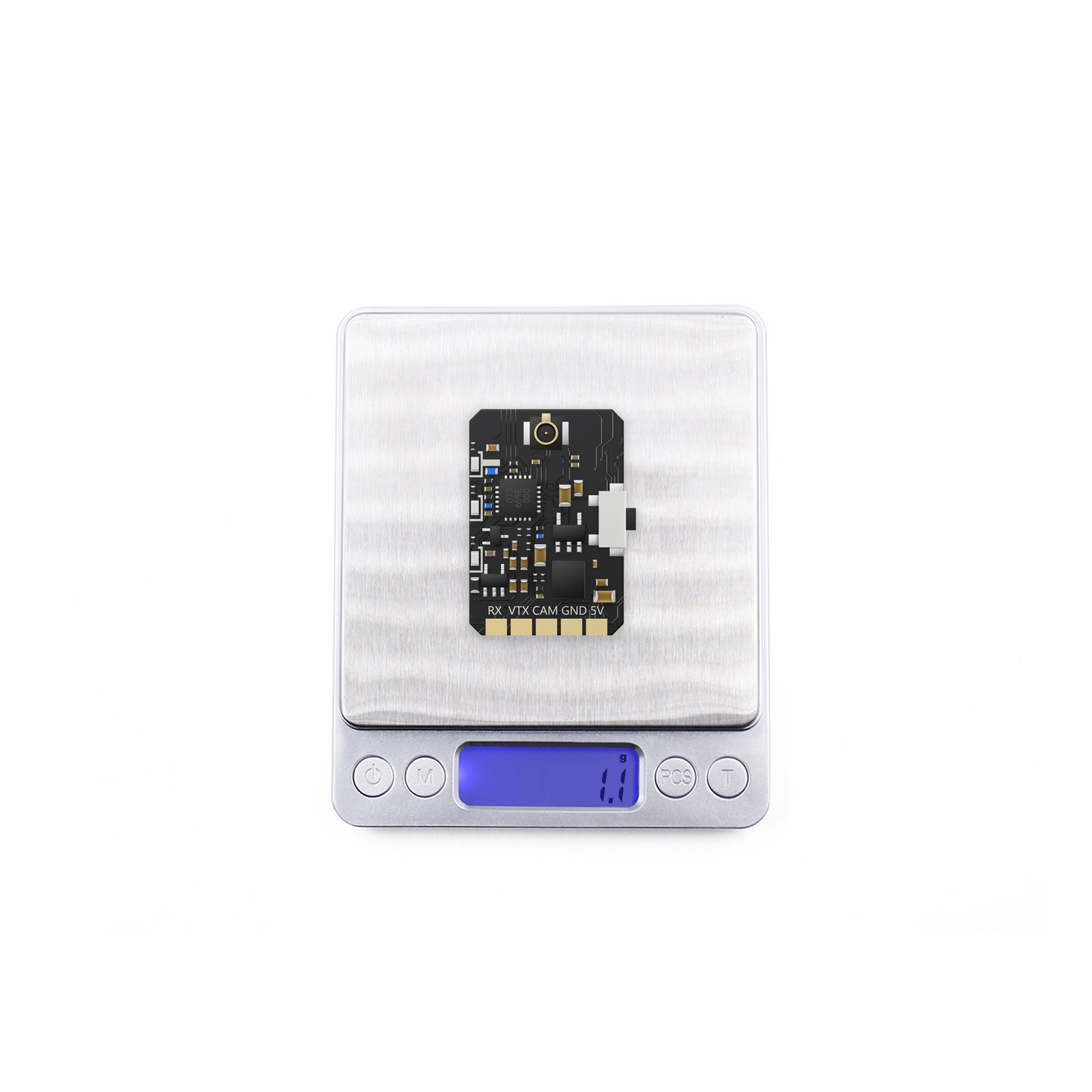

VTX GEPRC RAD Tiny 5.8G 400mW The GEPRC RAD Tiny 5.8G 400mW VTX is compact and lightweight to fit into tight spaces. Weighs only 1.1 g (without antenna). It has 3 adjustable power levels, the maximum power is 400mW and the signal is stable. With protection against overheating and burning. IRC Tramp protocol, OSD quick parameter setting, one button for parameter setting, three indicator lights, easy and fast operation. Function: - Compact size, multiple installation options. - 400mW power generates little heat and the signal is stable, suitable for medium and short distance flights. - With temperature control protection function to prevent high temperature burning - DC 5V input, suitable for drawing power from the flight controller. Specifications Model: GEPRC RAD Tiny 5.8G 400mW VTX Input voltage: DC 5V Output voltage: 5V (power supply 5V to the camera) Input impedance: 75Ω Control protocol: IRC Tramp Antenna: UFL Output power: 25mW/200mW/400mW/PIT MODE Channels: 48CH Video format: PAL/NTSC Size: 14mm x 18.5mm Weight: 1.1g (antenna not included) The package includes: 1 x GEPRC RAD Tiny 5.8G 400mW VTX 1 x Black 1.13 copper tube antenna 1 x silicone cable with SH1.0-5P plug 1 x silicone cable with SH1.0-3P plug 1 x GEPRC RAD Tiny 5.8G 400mW VTX Manual
