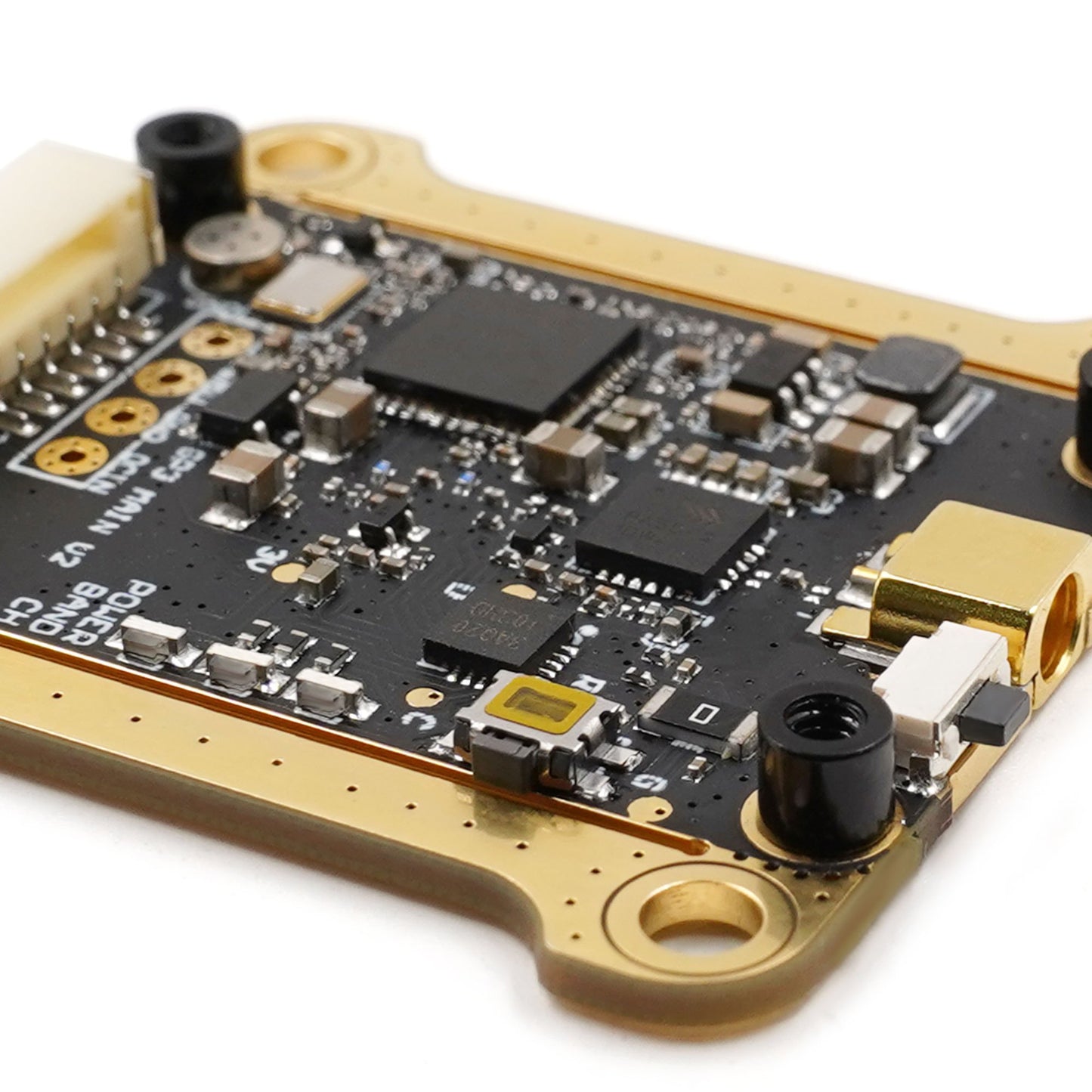

GEPRC RAD VTX 5.8G 1.6W GEPRC's RAD VTX 1.6W is a super powerful VTX with a maximum output of 1600MW and five adjustable ratios: Pit/25mW/200mW/600mW/1600mW is used. RAD uses a double-layer PCB design to separate the power supply from the motherboard, which can reduce and shield interference. Double-layer structure for better heat dissipation. The built-in microphone on the VTX board supports 7-36V voltage input (2-8S battery), uses an MMCX connector, and the mounting hole is 30.5 × 30.5mm. Features: 1. 1600 mW Super power. Suitable for long distance flights with good stability. 2. Five power channels: PIT mode/25mW/200mW/600mW/1600mW. 3. Double-layer board cooling structure, separate power BEC and main board, reducing and shielding from internal interference. 4. Temperature control protection function, which can prevent burning at high temperature. 5. Wide voltage input, Supports 7V-36V voltage input. 6. VTX control protocol is IRC Tramp, supports OSD parameters adjustment. 7. Built-in VTX microphone, real-time transmission of drone sounds. 8. It has 3 regional frequency tables to meet the needs of different regions. 9. Two function buttons, three indicator lights, easy to operate. 10. The mounting hole is 30.5mmx30.5mm. Specifications: - Model: GEPRC RAD VTX 5.8G 1.6W - Input voltage: DC 7-36V (2-8S battery) - Output: 5V@600mA (5V power supply to the camera) - Input impedance: 75Ω - Protocol: IRC Tramp - Antenna interface: MMCX - Output power: PIT mode/25mW/200mW/600mW/1600mW PIT MODE - Frequency Tables: Universal Frequency Table (40CH), American FCC Frequency Table (37CH), EU European Frequency Table (26CH) - Video format: PAL / NTSC - Microphone: Built-in microphone - Size: 36×36.5×5.5mm - Weight: 9.7 g (without cable) - mounting hole: 30 x 30 mm (M3) Warning: - Install the antenna before use. - To prevent overheating, ensure constant air flow and a well-ventilated environment. Install a cooling fan when operating in restricted conditions. - 5V output is intended only for use with
