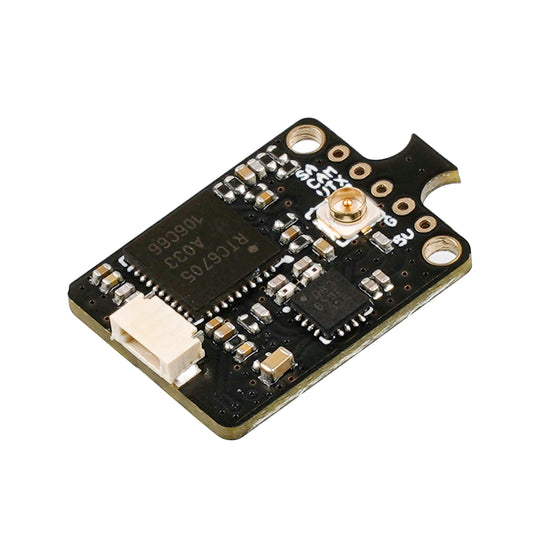

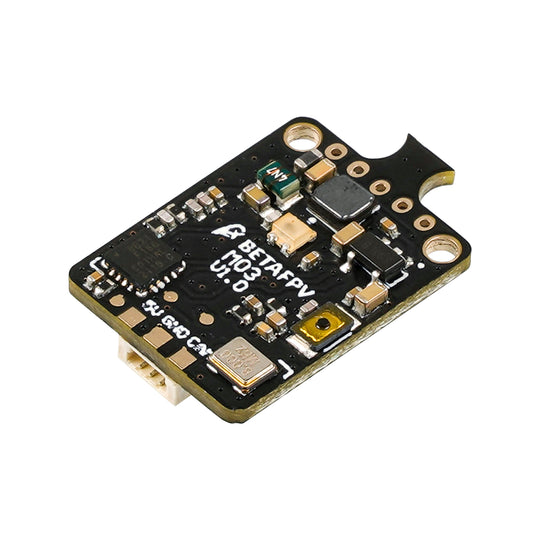

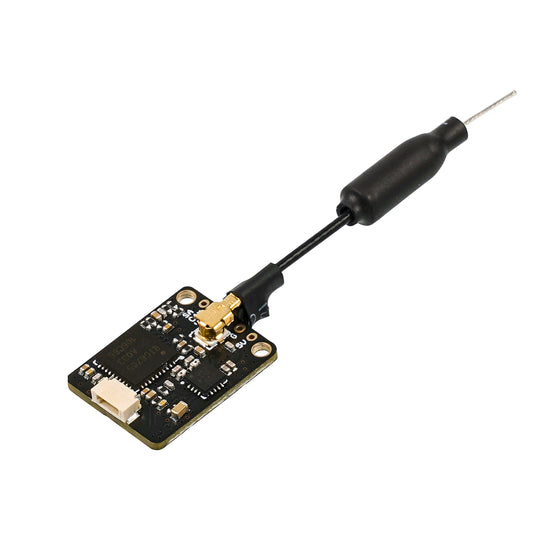

M03 25mW-350mW 5.8G VTX The M03 VTX is an ultra-light 5.8GHz analog VTX with high output power, designed for 65-85mm long-range drone drones. By combining this VTX with the excellent ExpressLRS 2.4G radio link, pilots can fly the drone longer to explore more possibilities and have more fun. Specifications: Item: M03 5.8G VTX Output power: PIT/25/100/200/400mW (V1.1, adjustable) Supply voltage range: 4.5-5.5V Weight: 1.1g (antenna not included) Inner dimension of VTX: 18X14mm Frequency: 5.8 GHz 48 channels, with racing band: 5658-5917 MHz Channel SELECT: SmartAudio Modulation type: FM Frequency control: PLL All harmonics: Max -50dBm Frequency stability: ±100 kHz (typ.) Frequency accuracy: ±200 kHz (typ.) Carrier channel error: ±1.5dB Antenna port: 50 Operating temperature: -10℃ -+80℃ Camera connector: JST-0.8, compatible with camera like BETAFPV C01, BETAFPV C02 and NewBeeDrone BeeEye.
