VTX AKK FX3-Ultimate-DVR 5.8G 1W
VTX AKK FX3-Ultimate-DVR 5.8G 1W
Brand: AKK
Regular price
€30,35
Regular price
€28,48
Sale price
€30,35
Unit price
/
per
Taxes included.
In stock
Limited stock available. Order soon!
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

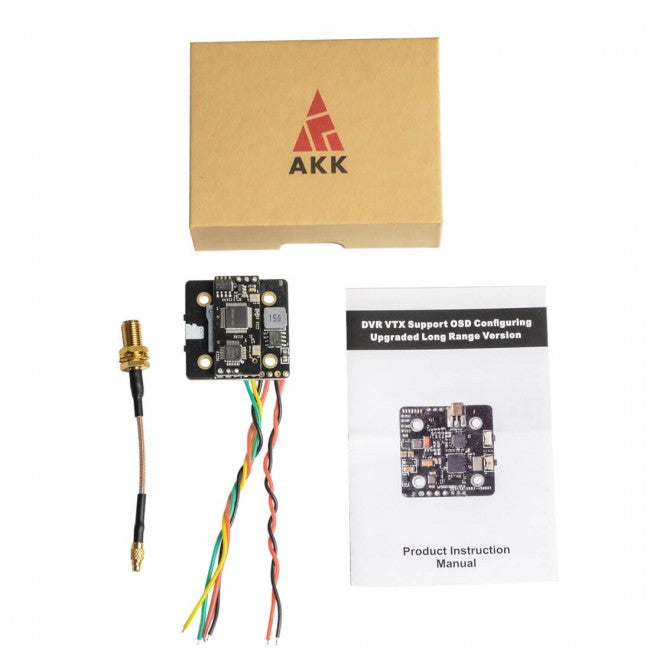

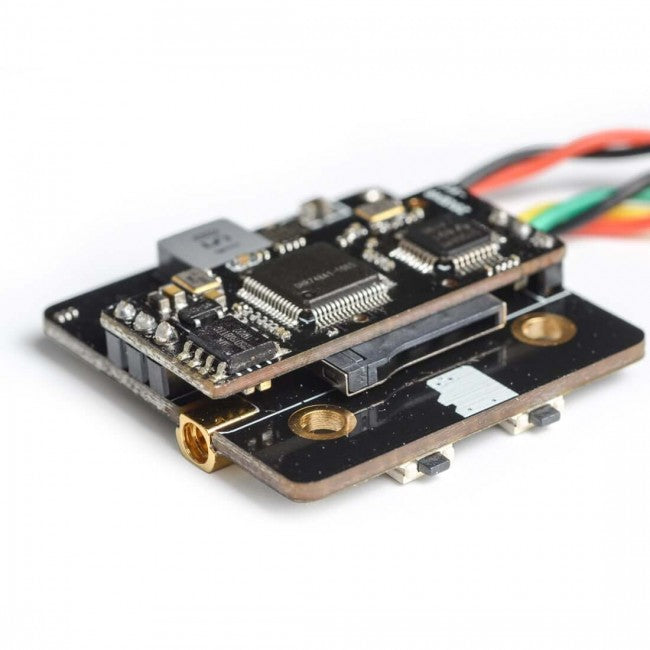

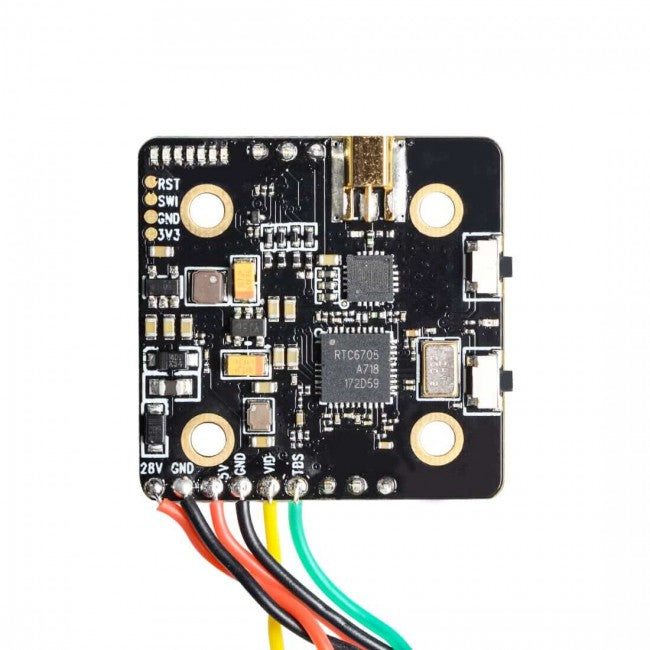

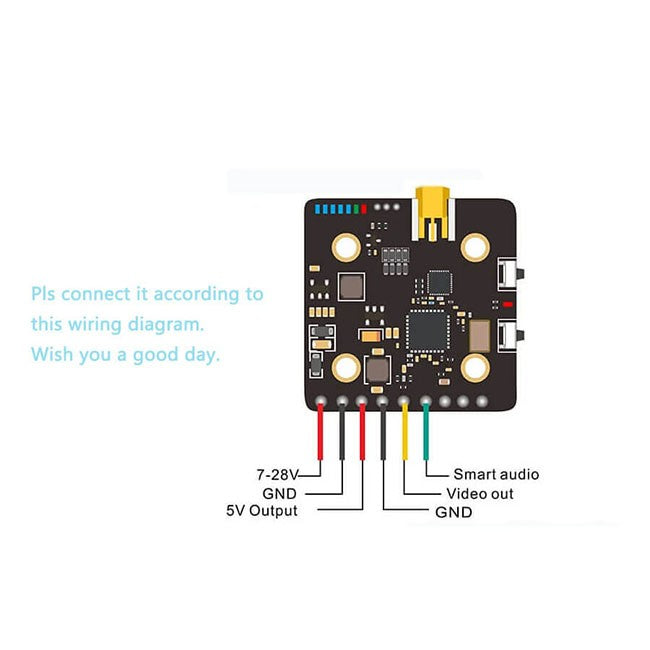

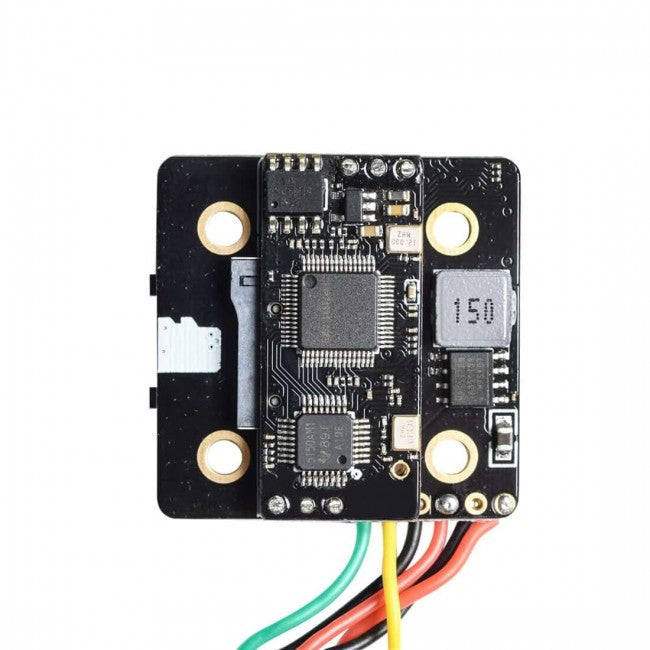

VTX AKK FX3-Ultimate-DVR AKK FX3-Ultimate-DVR is a modified version of AKK FX3-ultimate video transmitter. The main differences are increased power up to 1000 mW and an additional DVR module, therefore the size of the board has increased to 30.5 x 30.5 mm, but the wiring diagram remains the same as before 20 x 20 mm. The DVR model has its own control button and LED indication. The U.FL antenna output has been removed, now only the MMCX output is present on the board. Function: - Wide power range from 25mW to 1000mW - Pit mode support for clean frequency and power switching - Built-in 5V BEC for analog camera connection - Built-in microphone - Built-in DVR module - Ability to change settings from radio remote via OSD when connected to controller via UART Specifications: Power supply: 7-28V Other features: Smart audio, DVR Output power: 25, 200, 600, 1000 mW BEC: 5V 0.3A DVR resolution: VGA, 640 x 480, NTSC 30fps/PAL 25fps. Antenna connector: MMCX Port connector: Solder pads Mounting holes: 20 x 20 mm Dimension: 30.5 x 30.4 mm Stack height: 8 mm Weight with wires: 8.8 g (without antenna) The package includes: 1x VTX 1x Sable 1x Pigtail
