Walksnail Ascent FPV VRX
The Walksnail Ascent FPV VRX is a digital video receiver module designed for the Ascent HD FPV system. It decodes high-definition video from compatible Walksnail VTX modules and outputs to HDMI displays, FPV goggles, or monitors. The VRX supports a wide range of channels and bandwidth options, offers low latency performance, and includes a Micro SD card slot for direct recording of flight footage.
Compatible with Ascent HD VTX modules and supports plug-and-play HDMI connection with goggles, monitors, or TVs. Designed for reliable performance with Ascent digital video systems and customizable settings via OSD modes
Specifications:
Ascent VRX
Communication Frequency: 5.725–5.829 GHz
Transmitter Power (EIRP):
- FCC / SRRC: < 30 dBm
- CE: < 14 dBm
I/O Interface: HDMI, Micro SD Card, DC 5.5 × 2.1 mm, SH1.0 × 6PIN, Type-C
HDMI Out:
- 1080p50fps, 1080p60fps
- 720p50fps, 720p60fps
- 720p100fps, 720p120fps
Power Input: 7.4–25.2 V
SD Card: Support Micro SD up to 256 GB
System: Ascent HD system
Bandwidth: 5 MHz / 10 MHz / 20 MHz
Recording File System: exFAT
Recording Format: MP4 (H.264)
Weight: 118 g
Dimensions: 114.5 × 64 × 24 mm
Red Bird Antenna
Polarization: LHCP
Bandwidth: 5.725–5.829 GHz
Average Gain: 2 dBi
Radiation Efficiency: ≥ 97%
VSWR: ≤ 1.3
Cross-Polar Rejection: −15 to −30 dB
Connector: RP-SMA ×2
Dimensions: 25 × 15.5 mm
Weight: 4.3 g

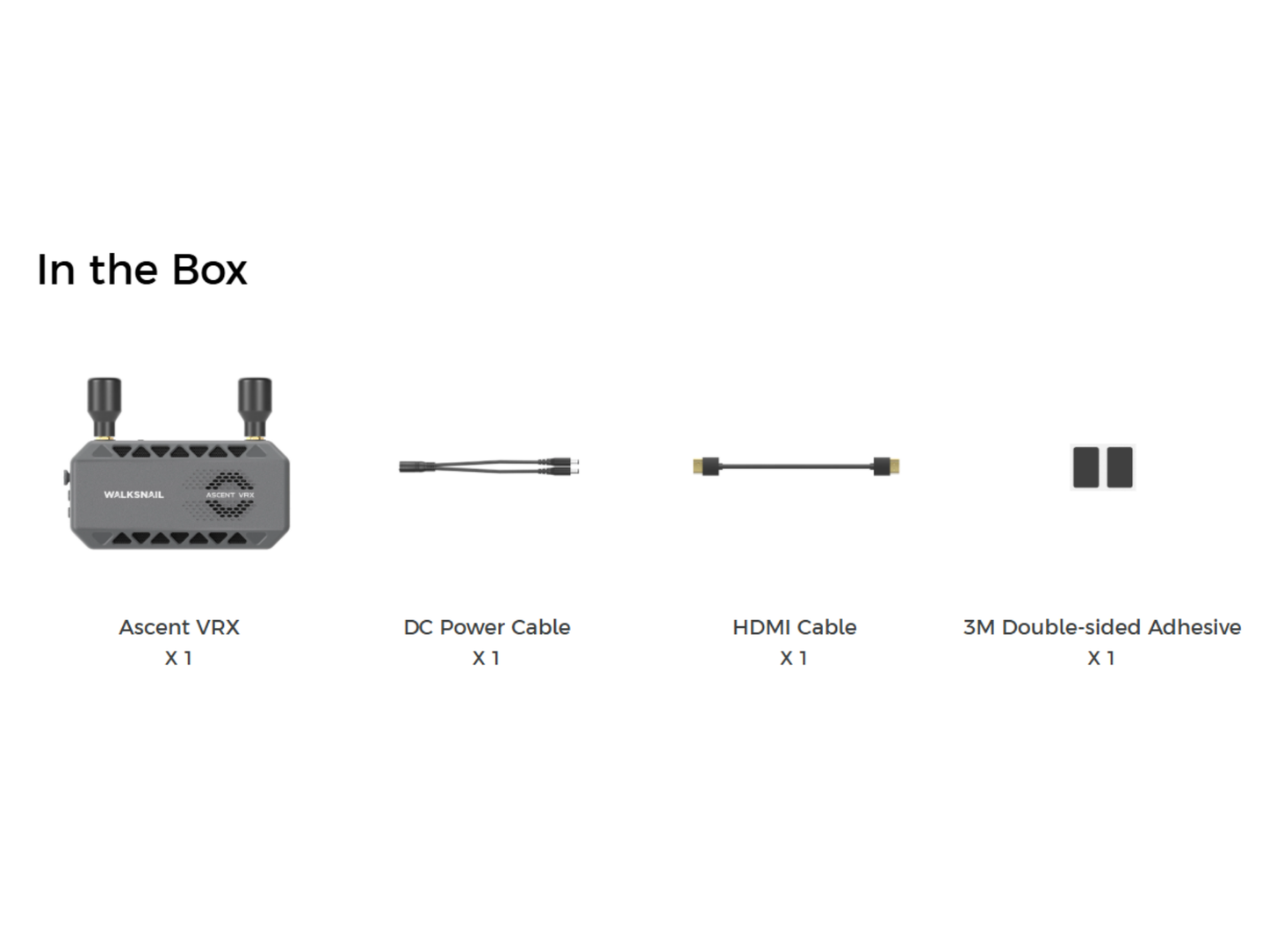

Package Includes:
1x Walksnail Ascent FPV VRX Receiver
1x DC Power Cable
1x HDMI Cable
1x 3M Double-sided Adhesive
