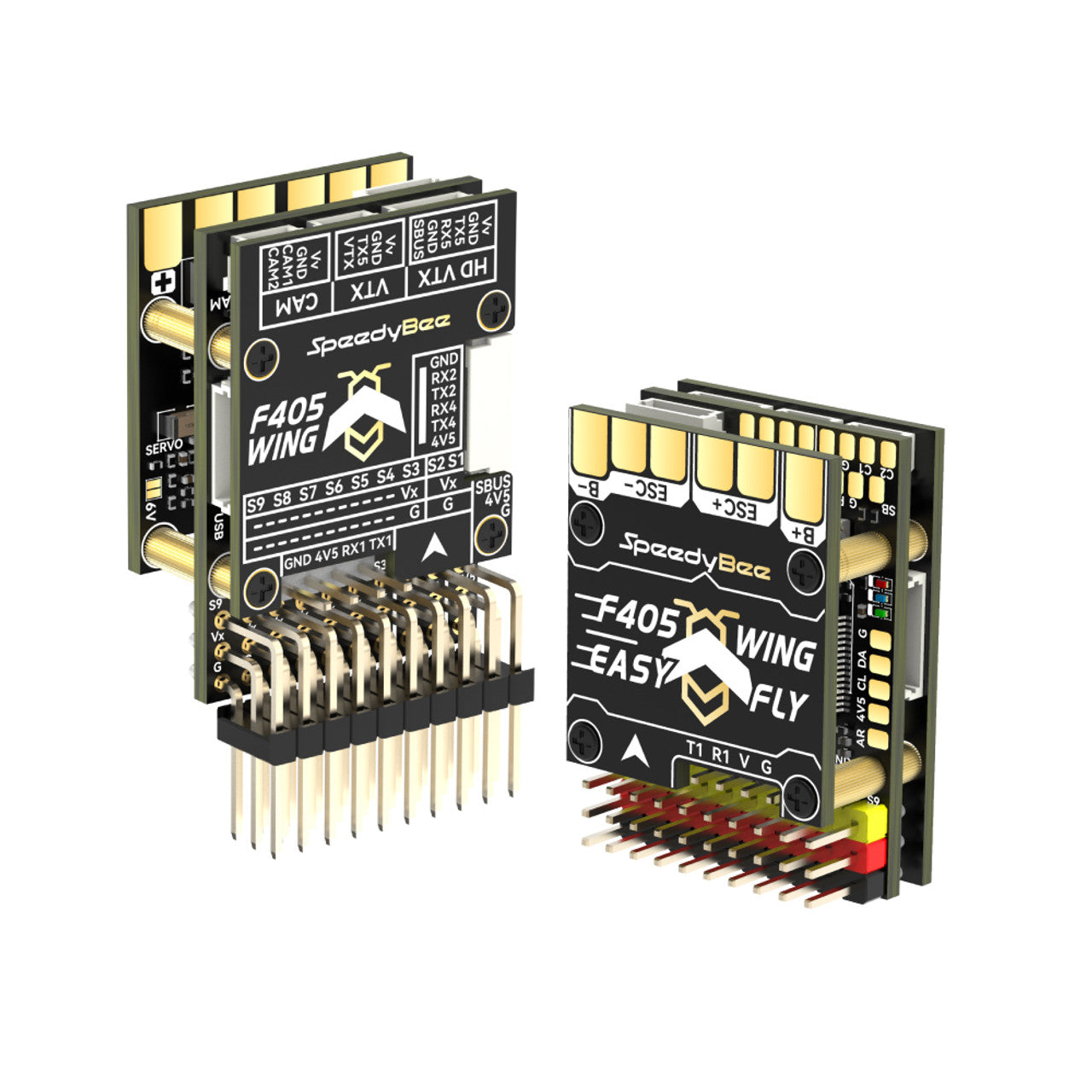

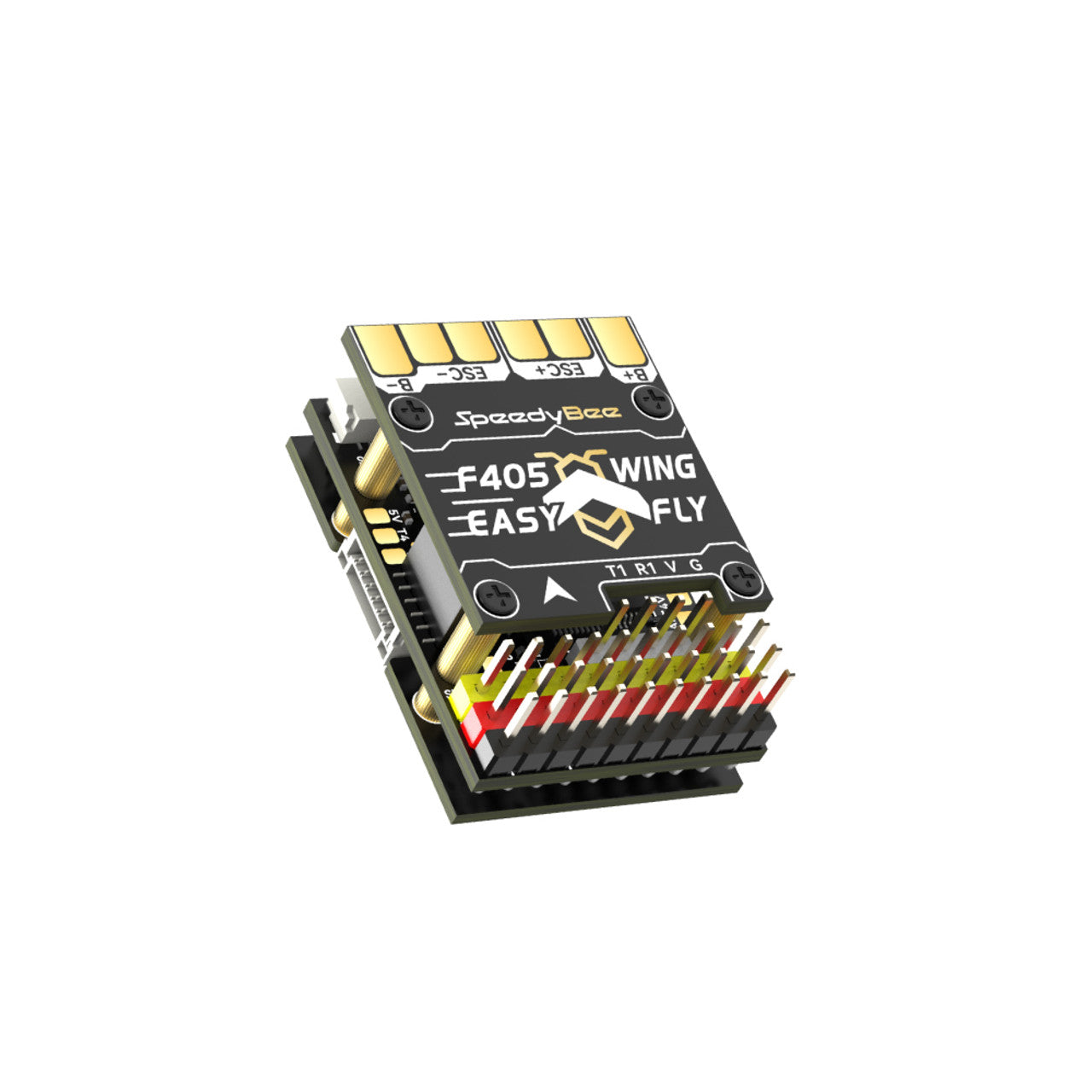

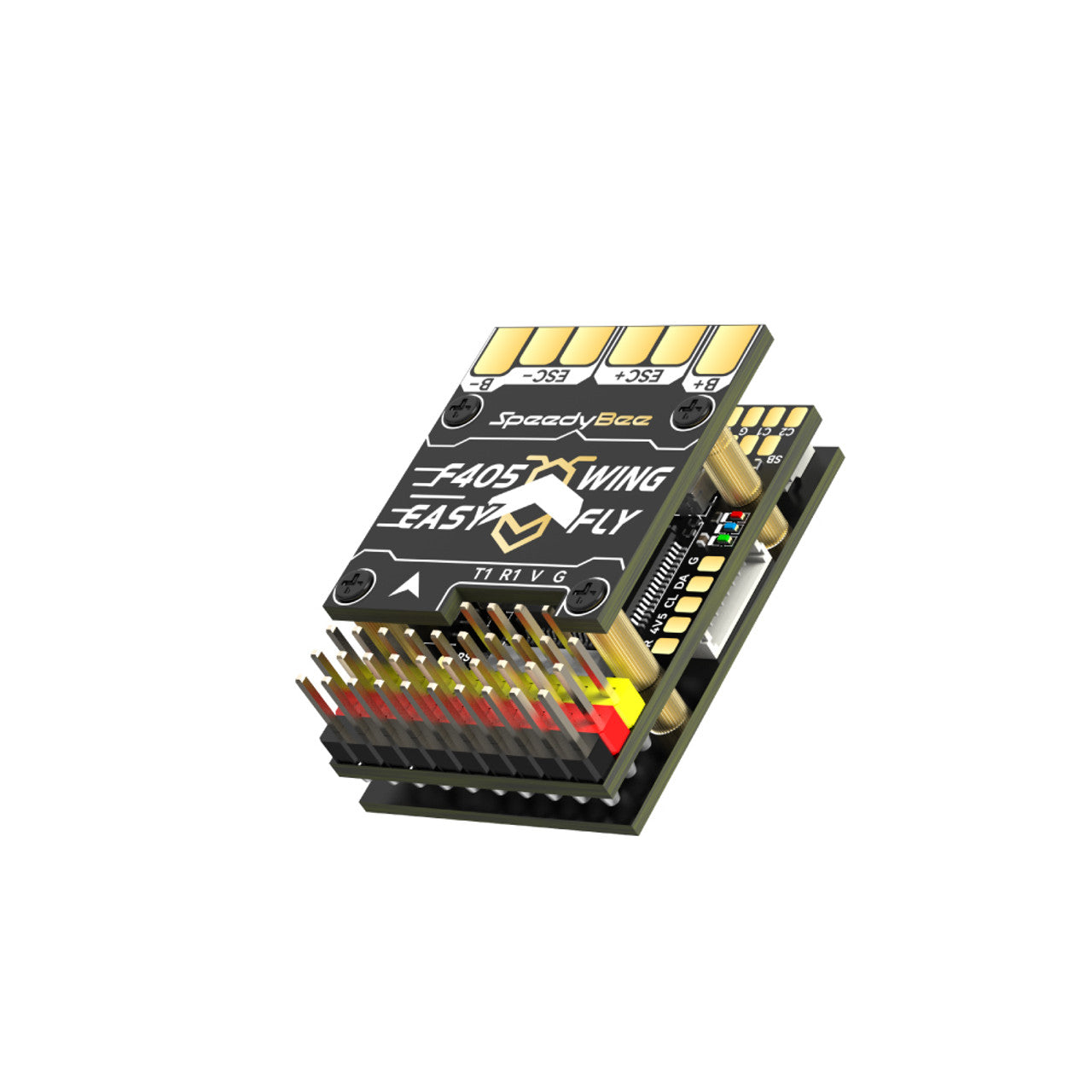

SpeedyBee F405 Wing Mini

The new SpeedyBee F405 Wing Mini Stack offers advanced flight control capabilities in a compact design, ideal for fixed-wing aircraft enthusiasts.

Specifications

Product Name: SpeedyBee F405 WING MINI FC board
MCU: STM32F405, 168MHz, 1MB Flash
IMU (gyroscope and accelerometer): ICM-42688-P
Barometer: SPL006-001
OSD chip: AT7456E
Blackbox: MicroSD card slot
UART: 6 sets (USART1, USART2, USART3, UART4, UART5, UART6 - Designed for wireless board telemetry connection)
I2C: 1x Used for magnetometer, digital air speed sensor
ADC: 4x (VBAT, current, analog RSSI, analog airspeed)
PWM: 12x (9x pin headers + 2x soldering pads + 1x "LED" pad)
ELRS/CRSF Receiver: Supported, connected to UART1
SBUS: Built-in inverter for SBUS input (UART2-RX)
LED: 3x LED for FC STATUS (blue, green) and 3.3V indicator (red)
Analog RSSI: Supported, named as "RS"
Dual Analog Camera Switching: Defaults to Video Input Camera1 (C1). Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER. Both cameras should have the same video format, either PAL or NTSC.
Supported FC firmware:
-INAV: SpeedyBeeF405WING (default)
-ArduPilot: SpeedyBeeF405WING

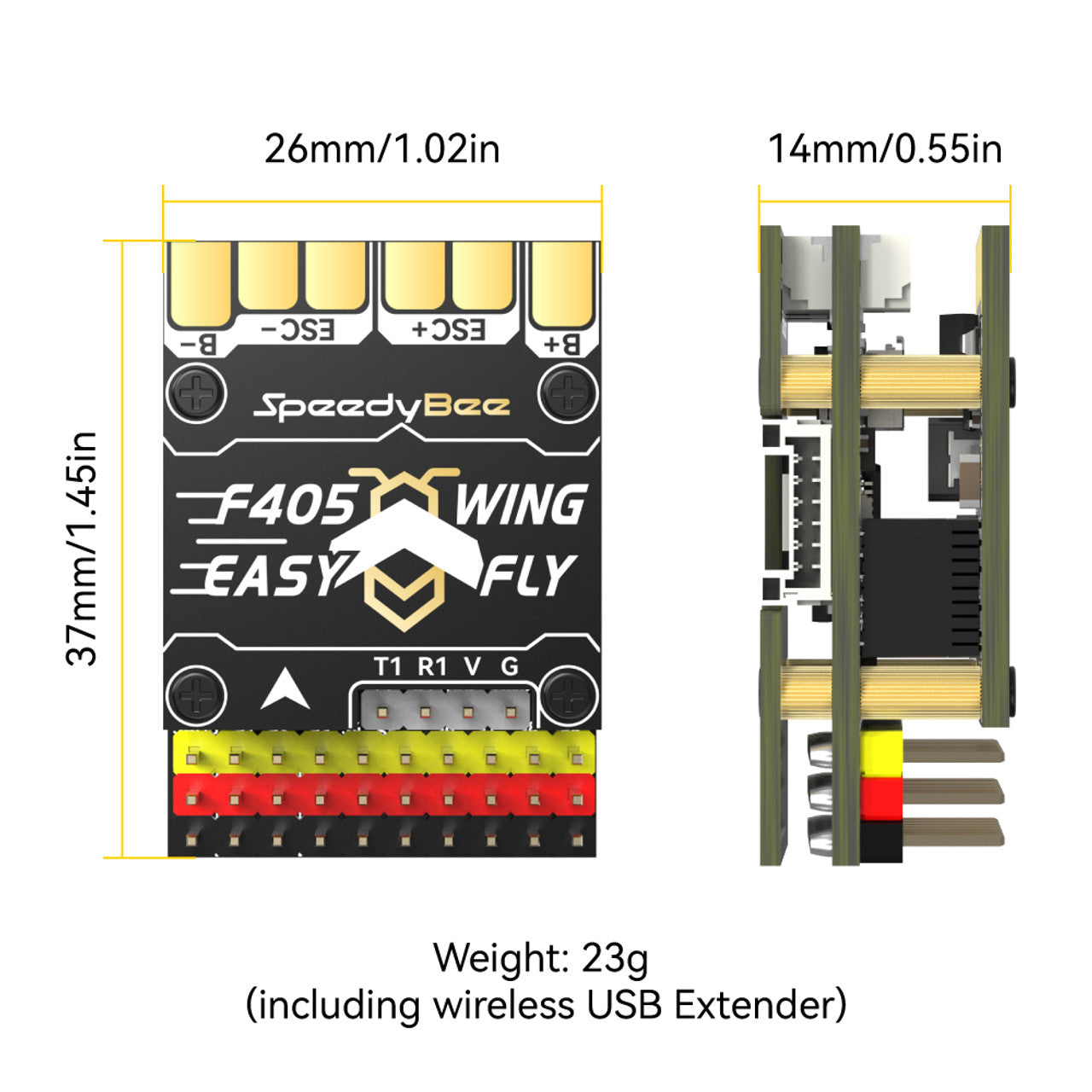

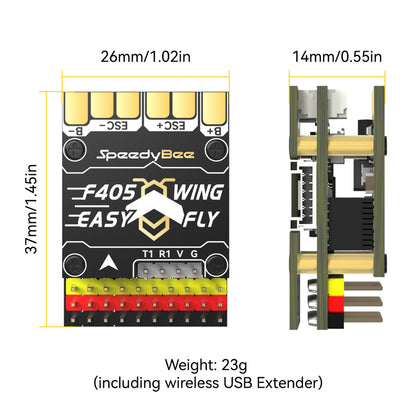

Weight: 5.6g

Product Name: SpeedyBee F405 WING MINI PDB Board
Input voltage range: 7-26V (2-6S LiPo)
Battery Voltage Sensor: Connect to FC VBAT board, 1K:10K
Battery current sensor: 80A continuous, 150A peak Connect to FC board Current
TVS protection diode: Yes
FC BEC output: Output 5.2V +/- 0.1V DC Continuous current 2A, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed
