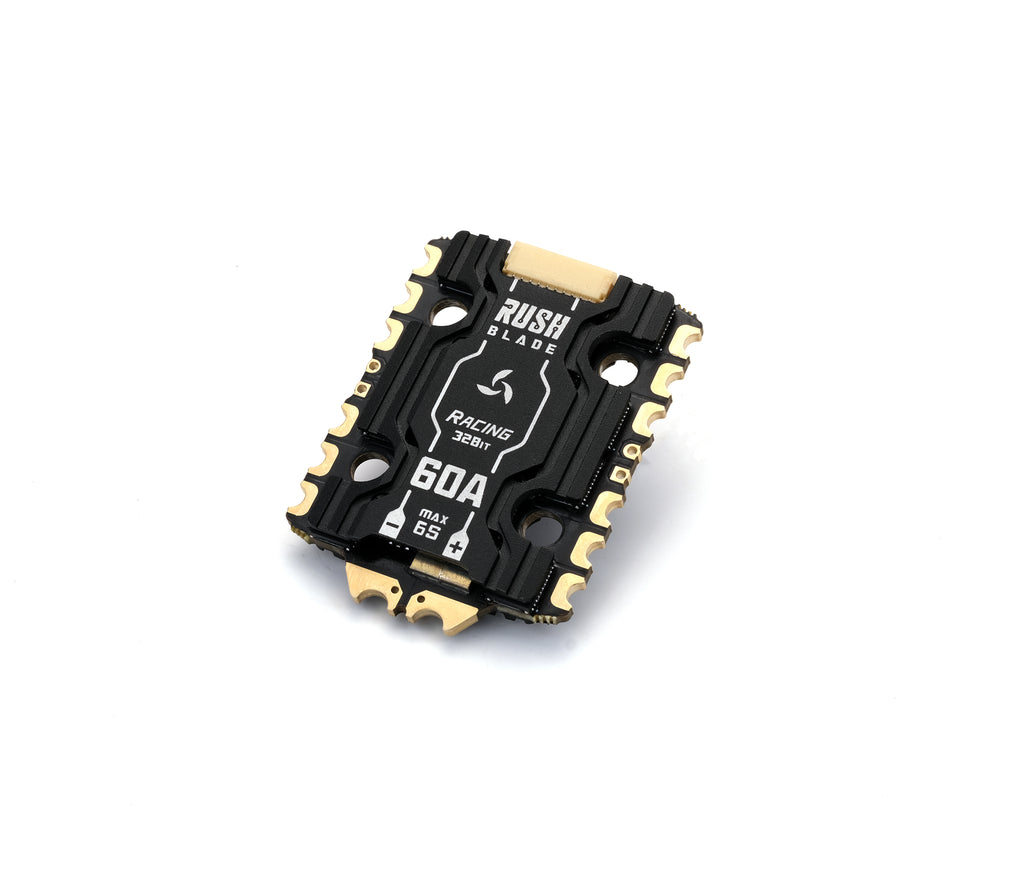

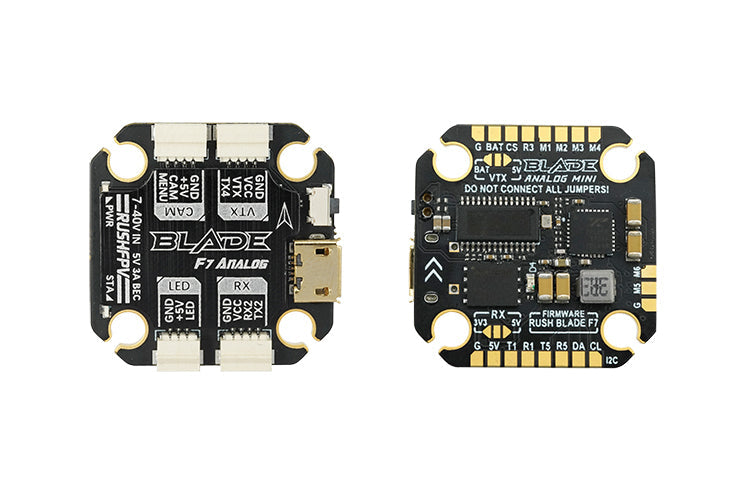

Mini Stack RUSH BLADE F722 + racing mini 60A RUSH BLADE F722 MINI STACK with MINI 60A RACING V1.2 3-6S BLHELI_32 4-IN-1 ESC for analog system. Function: - High performance MCU STM32 F722 with speed up to 216 MHz. - Uses MPU600 with integrated accelerometer and gyroscope, stable and reliable. - Built-in analog video OSD, 16M black box, 5 UART ports, 6 PWM output ports, 2 ADC ports, 1 I2C port, 1 camera control port. - Integrated input source 36V, power supply of up to 6Slipo batteries, output 5V 5A. - Modular cable design with a reliable locking structure can be installed quickly while maintaining the full-sized pads on the back, providing more expansion support. - Optimized for stack installation, the one-sided component placement method thins the thickness, and the bottom is covered with full copper to resist ESC interference. Specifications: MCU: STM32 F722 RET6 GYRO: MPU6000 BEC Input: 7-36V 3-6S LiPo BEC output: 5V 2A OSD: CVBS PAL/NTSC Blackbox: 16MB SPI Flash Target: RUSH_BLADE_F7 Port: 6xPWM 5xUART 1xI2C ADC: Battery voltage/current LED: Support LED strip WS2812 Navi: Supports compass/GPS Mounting holes: 20 x 20 mm Dimensions: 29 x 29 x 6.8 mm Weight: 5g (without cable)
