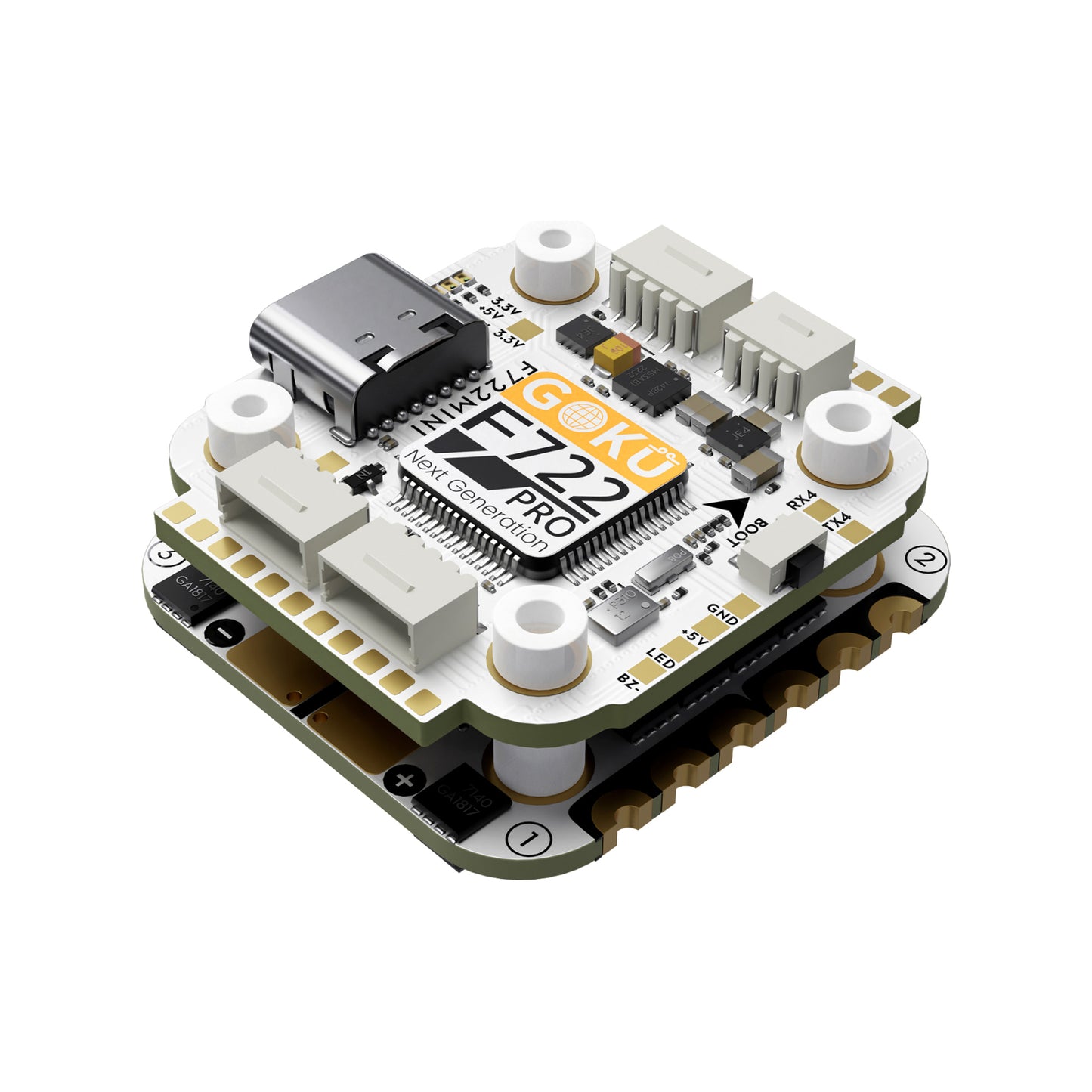

Stack Flywoo GOKU F722 Pro Mini V2 45A 32Bit 128K Stack (20x20) (AM32)

The Flywoo GOKU F722 Pro Mini V2 Stack is a high performance 20x20 flight controller and ESC combo tailored for advanced FPV pilots. The FC is built on a powerful STM32F722 MCU, equipped with an ICM42688 gyroscope, barometer, OSD and a 16MB black box for enhanced flight data logging. Combined with GOKU G45M 4 in 1 ESC supporting AM32 firmware, 128kHz PWM frequency and 45A continuous current, it ensures smooth, sensitive flight and precise control. Designed to be compatible with 2-6S LiPo, this stack is ideal for freestyle or long flights. It offers plug-and-play support for DJI O3 and other peripherals.

Flight controller:

Firmware (BF): FLYWOO F722PROV2
Firmware (INAV): FLYWOO F722PRO
MCU: STM32F722
Gyroscope: ICM42688
OSD: AT7456E
Barometer: DPS310 / SPL06
Black box: 16 MB
UART: 1 / 2 / 3 / 4 / 5 / 6
Input Voltage: 7.4V-26V (2-6S LiPo)
BEC: 10 V 2 A / 5 V 2 A
Dimensions: 32 x 29 x 20 mm
Mounting holes: M2 20 × 20 mm
Weight: 9.9 g

ESC:

Name: GOKU G45M 4-in-1
Firmware: GOKU_F4A32_PRO
Supported by: AM32
Supported protocols: DShot300 / DShot600 / DShot1200
PWM frequency: 24K – 128KHz
Input voltage: 2-6S LiPo
Continuous current: 45A

The package contains:

1 × GOKU F722 PRO Mini V2 Flight Controller
1 × GOKU G45M 32bit 4in1 ESC
1 x FC & ESC connection cable
1 x buzzer connection cable
1 x GPS connection cable
1 x DJI O3 connection cable
1 x receiver connection cable
5 x M3 damping balls
5 x M2 damping balls
1 x camera connection cable
