    Code: 0102005004

    Servo Emax ES9258

    Servo Emax ES9258

    Brand: Emax

    €22,49
    €22,49 €22,49
    -0% View Product
    Taxes included.
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

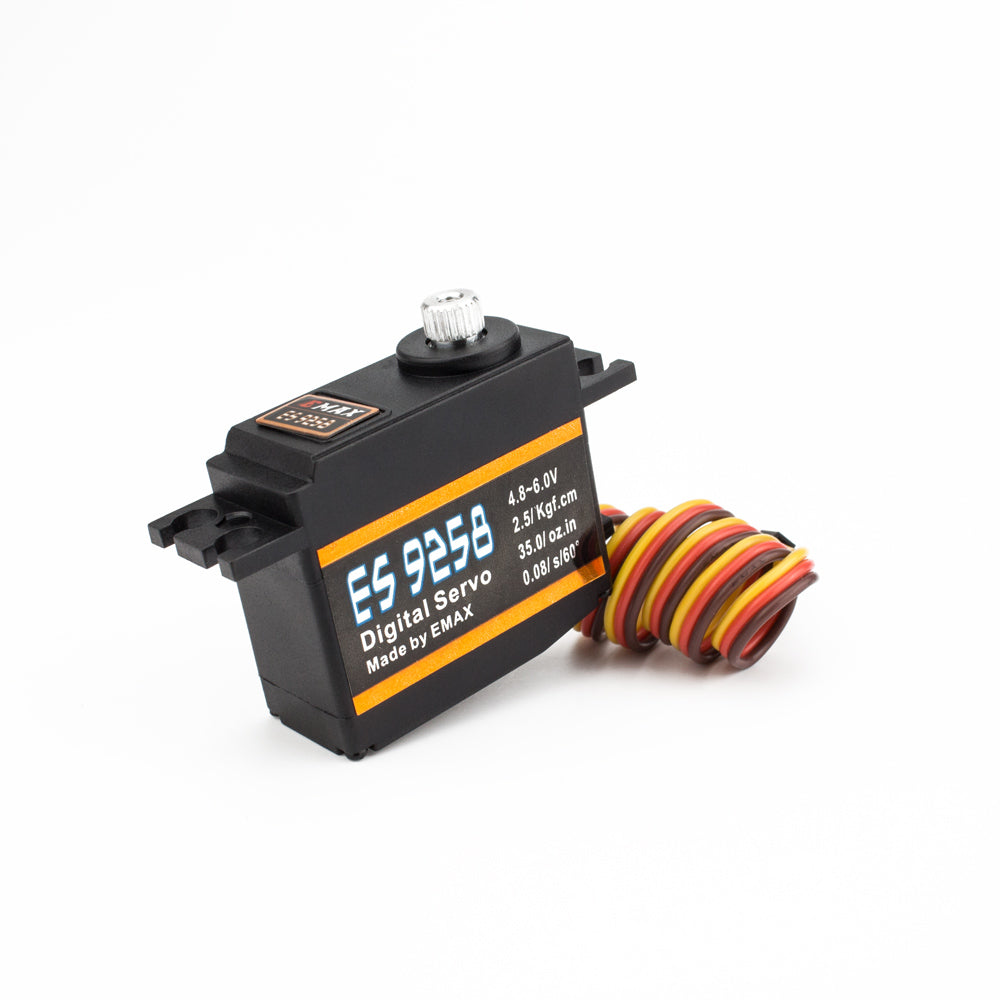

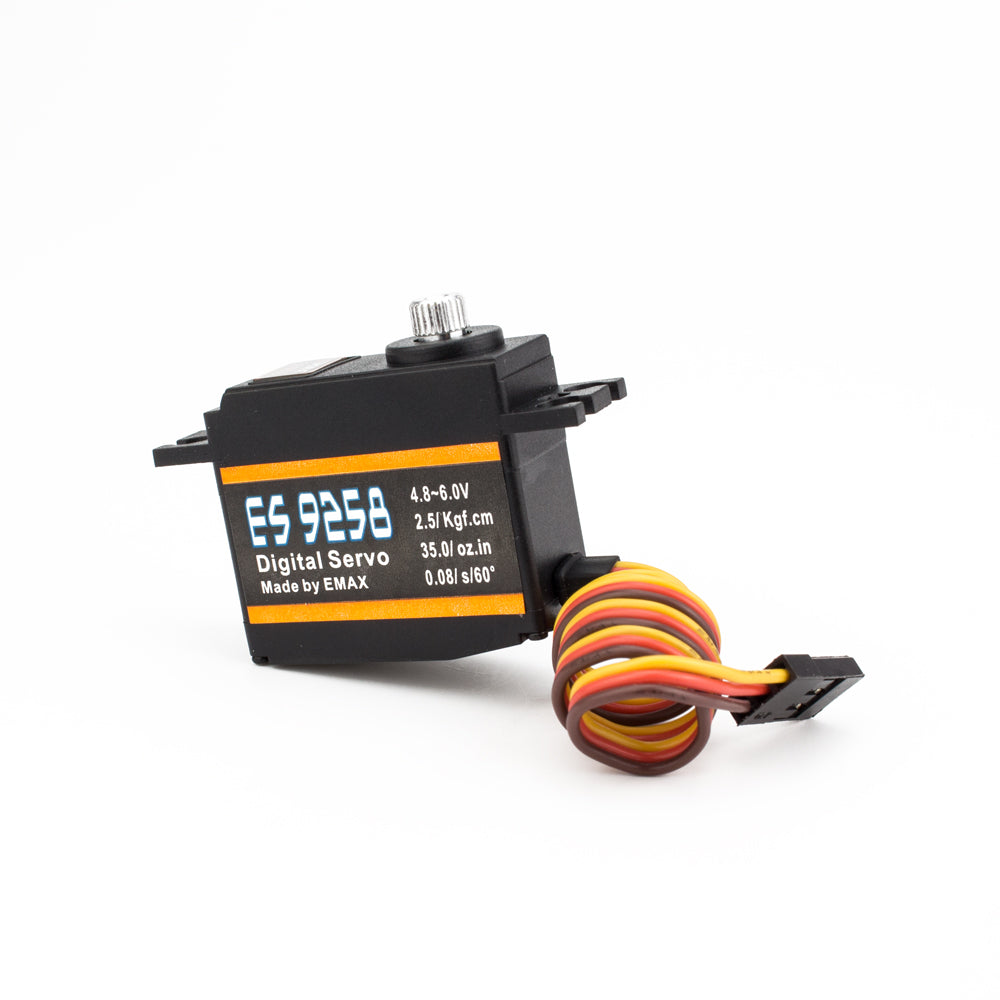

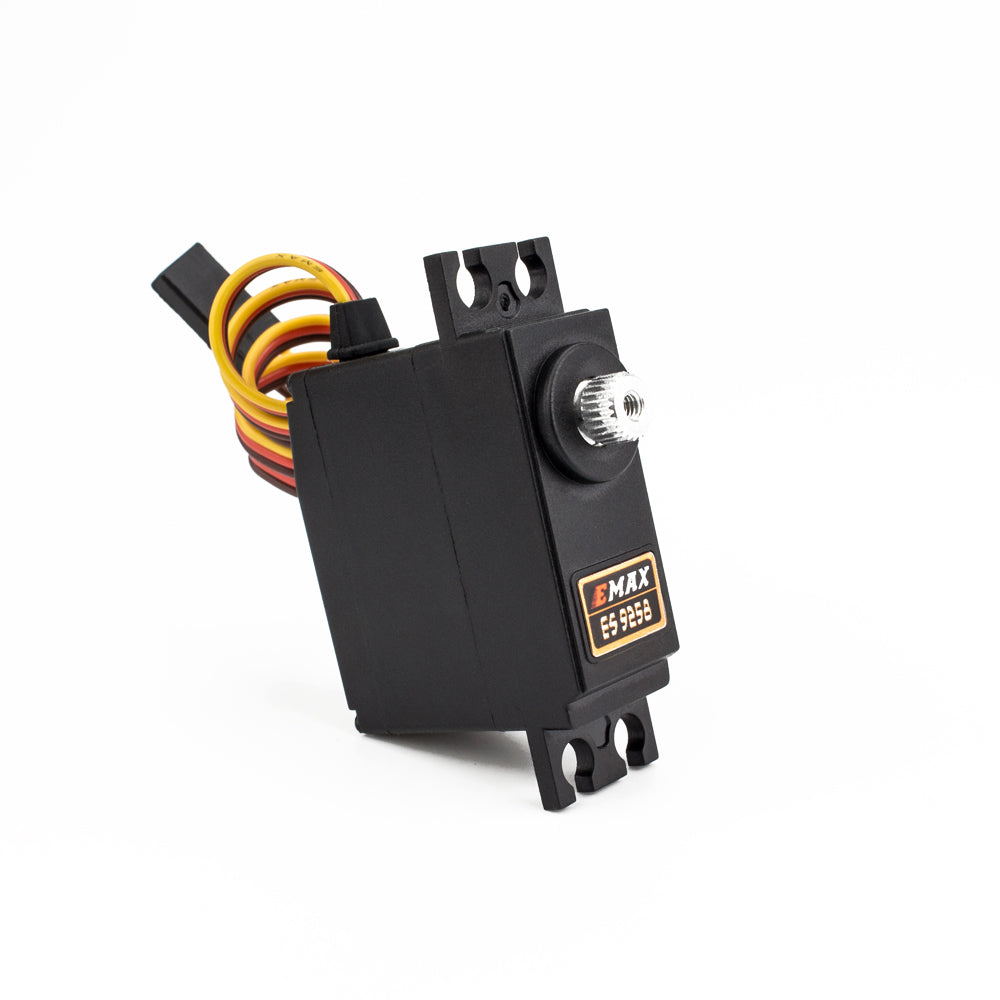

    Servo Emax ES9258

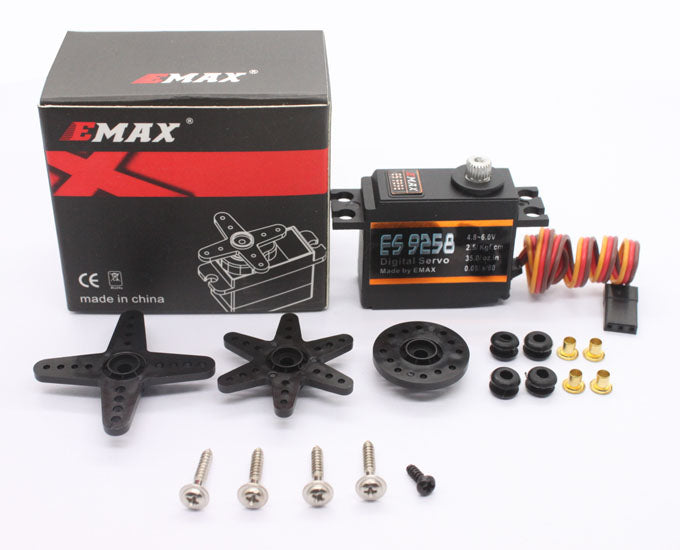

Emax ES9258 tail rotor servo for 450 helicopters. Accessories include an arm and a set of screws.

Specifications:
Type: Digital
Gears: metal gear wheel with bearing
Operating voltage: 4.8-6V
STD direction: Counter-clockwise/pulse travel 1500 to 1900 usec
Tightening torque: 4.8V 2.5Kgf.cm
Operating speed: 4.8V 0.08s/60° no load
Size: 34.95 x 30.1 x 14.9mm
Weight: 25g
Available connector: FUT; Jr
