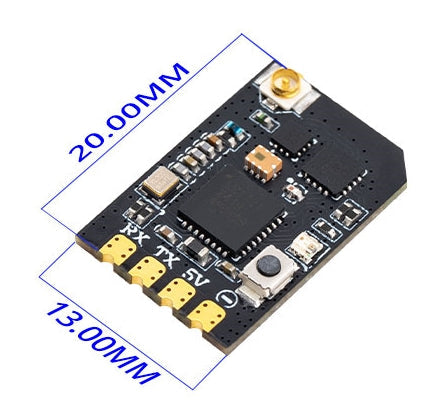

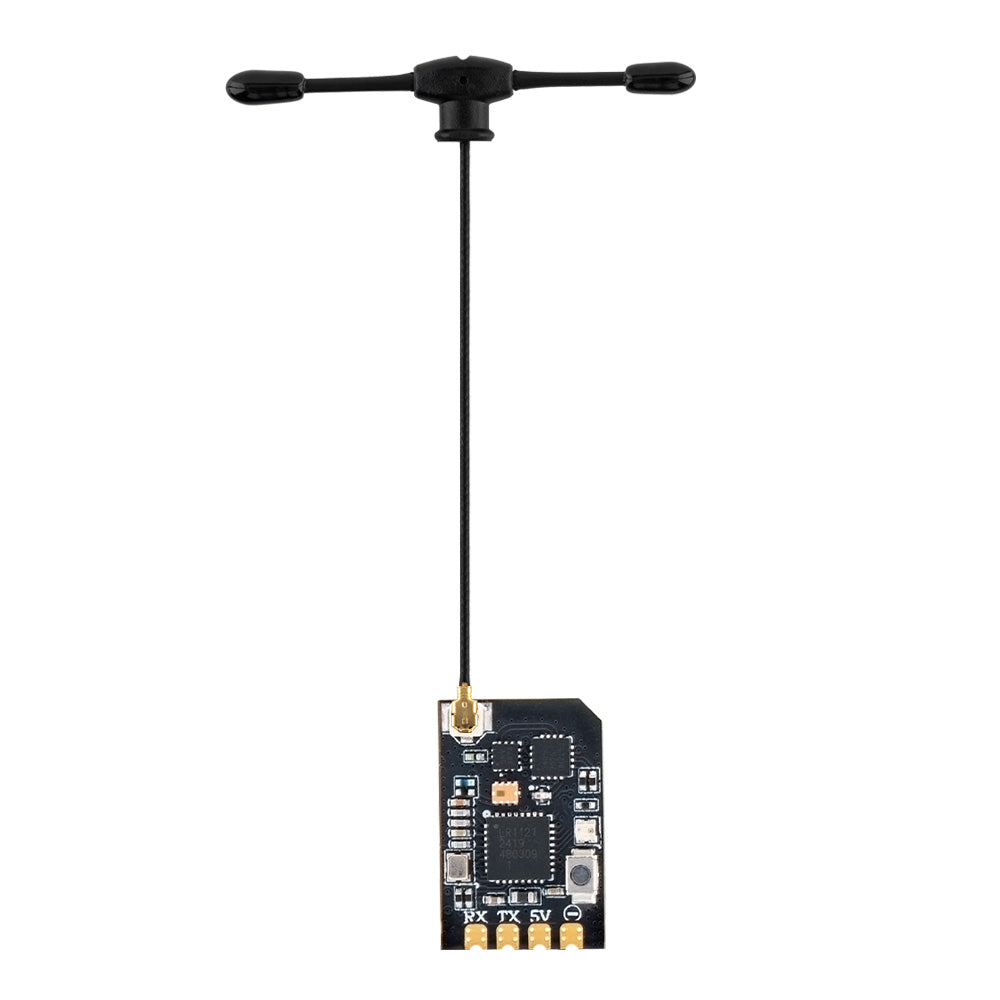

Receiver RadioMaster XR1 Nano Multi-Frequency ExpressLRS 2.4GHz The XR1 Receiver is a versatile, ultra-compact ExpressLRS receiver, measuring just 20x13mm. Powered by the advanced third-generation Semtech LR1121 transceiver, the XR1 operates seamlessly on 2.4GHz. XR1 delivers exceptional range and sensitivity in a small, lightweight package — perfect for any build. With the reliability of ExpressLRS, you can focus on flying without worrying about link quality. Designed for convenience, the XR1 features built-in Wi-Fi for effortless configuration and firmware updates. Access and manage settings through an intuitive WebUI on your PC or mobile device with ease. Features: - Telemetry RF power: 100mW - ExpressLRS 2.4GHz - ESP32C3 high-performance MCU - Semtech LR1121 2.4GHz - Secondary UART port - Castled pads for easy soldering Specification: Item: XR1 Nano Multi-Frequency ExpressLRS Receiver Type: ISM2.4 MCU: ESP32C3 RF chip: Semtech LR1121 RF connector: IPEX-1 Antenna: 1x T-Antenna 2.4GHz Frequency Range: 2.4GHz Telemetry Power: 100mW Maximum Packet rate: DK500Hz / K1000Hz Minimum Packet refresh rate: 50Hz Working voltage: 5V Weight: 1.0g (without antenna) Dimension: 20x13x3mm Firmware Version: ExpressLRS v3.5.1 pre-installed FW Target: RadioMaster XR1 2.4 Bus interface 1: CRSF Bus interface 2: UART Package Include: 1x XR1 Nano Multi-Frequency ExpressLRS Receiver 1x T Antenna 2.4GHz 1x CRSF wire 3x Heat-Shrinkable Tube
