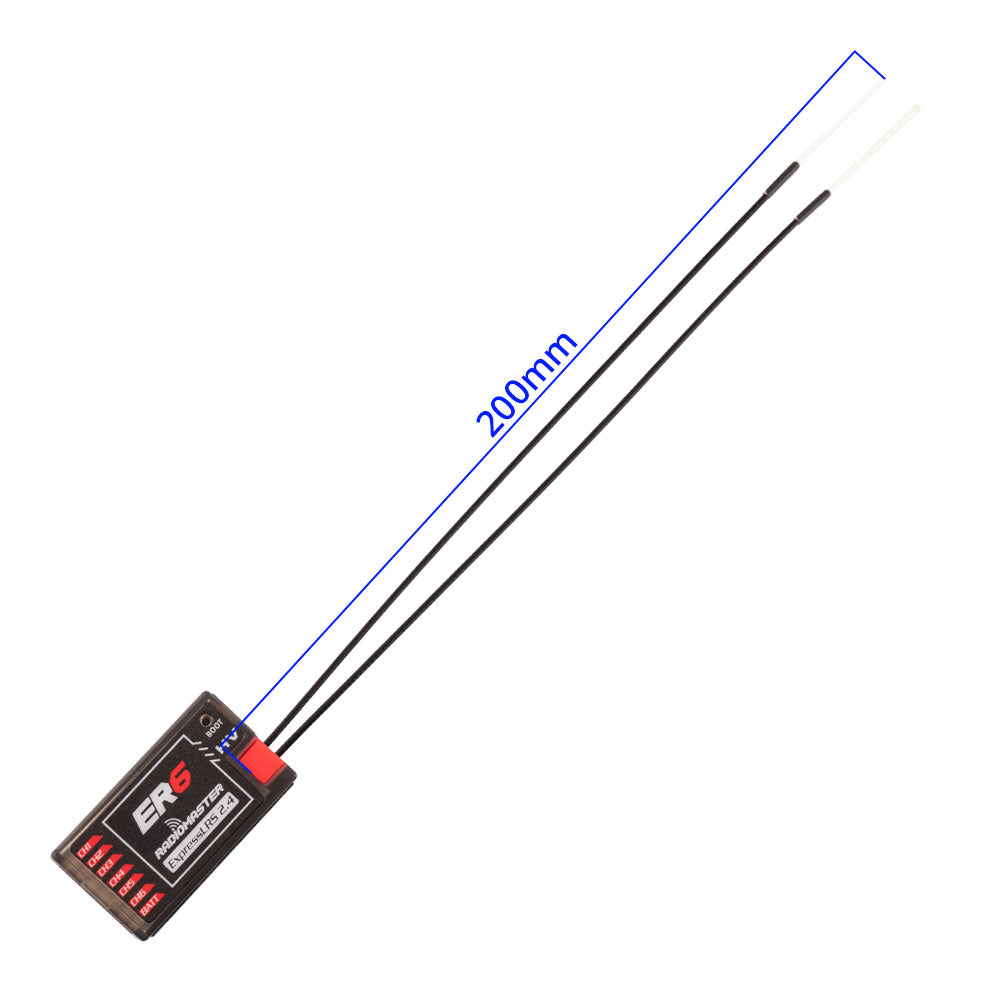

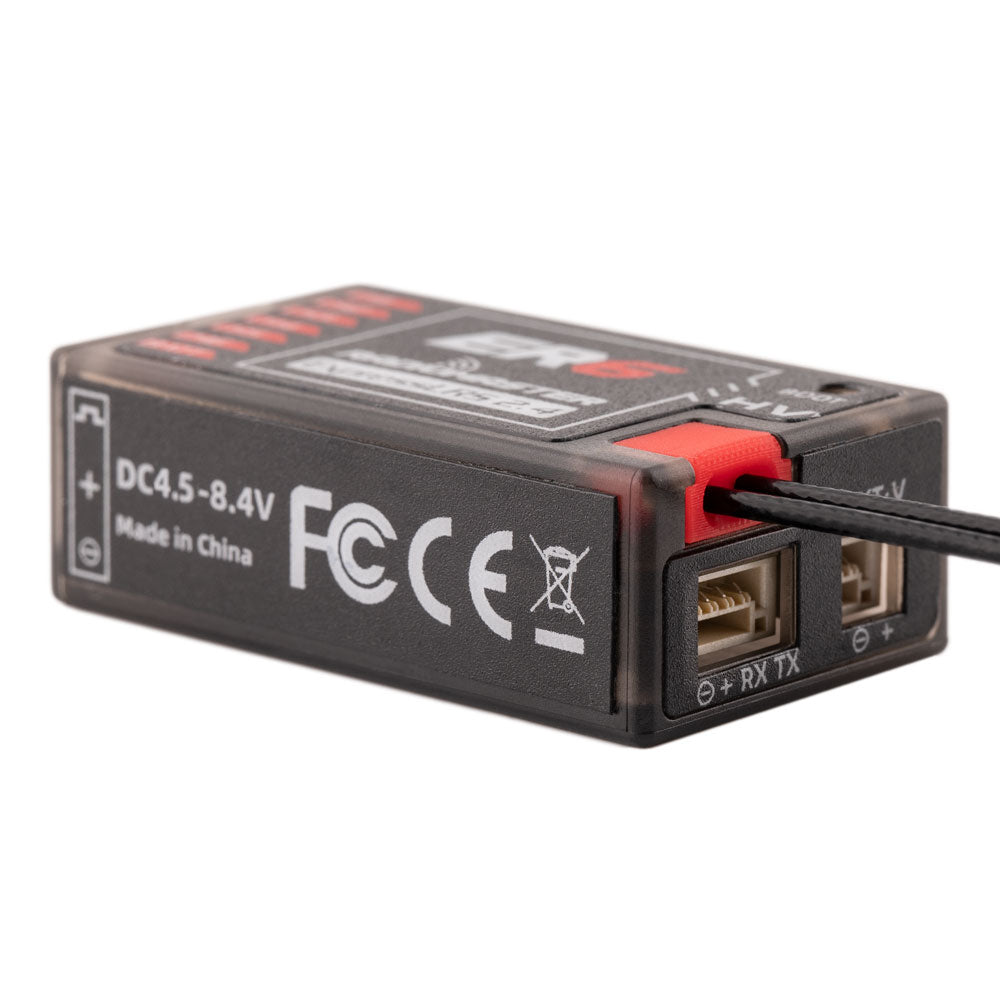

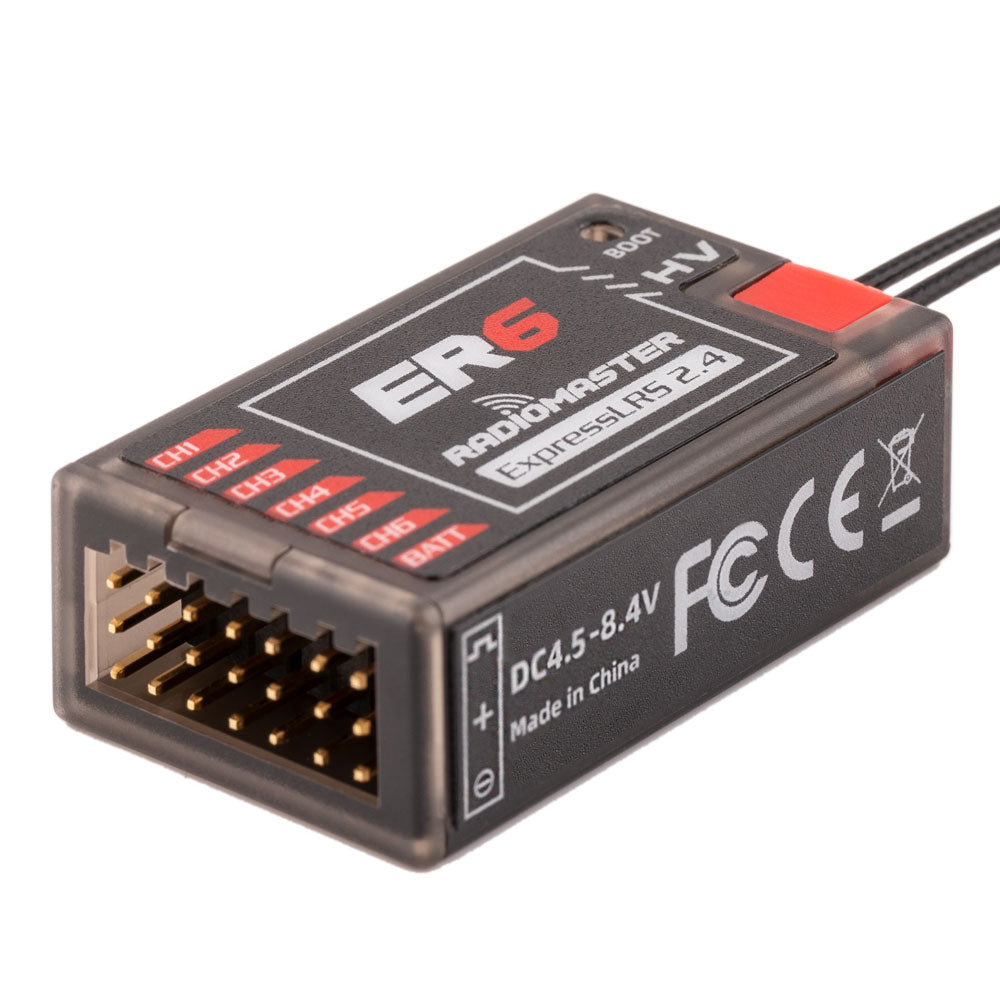

ER6 2.4GHz ELRS PWM receiver The RadioMaster ER6 ELRS receiver has been specially designed for fixed wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is available to facilitate the later expansion of telemetry sensors. The ER6 is equipped with a dual antenna with a telemetry power of up to 100 mw. The receiver shell uses a one-piece molding process with high structural strength. Function: - Based on the revolutionary ExpressLRS system - High performance, high reliability, flexible configuration, fast response and ultra long range - Support 6 PWM channels - Optimized ground circuit board design - Automatically voltage telemetry of external battery voltage or built-in receiver voltage - Supports Wi-Fi updates and WEBUI configuration - High quality 2.54mm connector - Standard 20 cm high sensitivity antenna - Spare 4-pin CRSF input port Specifications: Item: ER6 2.4GHz ELRS PWM Receiver Power supply: DC 4.5 - 8.4V Antenna type: 20 cm high sensitivity dual antenna Wireless protocol: ExpressLRS 3.3.0 pre-installed Output channel: 6CH PWM Telemetry power: 100 mw maximum (LUA Adjustable) Telemetry Battery voltage detection range: DC 4.0 - 35V Bus interface: CRSF Weight: 14.5 grams Dimensions: 43 x 25 x 15 mm Firmware: Device Category: Radiomaster 2.4 GHz / Device: RadioMaster ER6 2400 PWM RX
