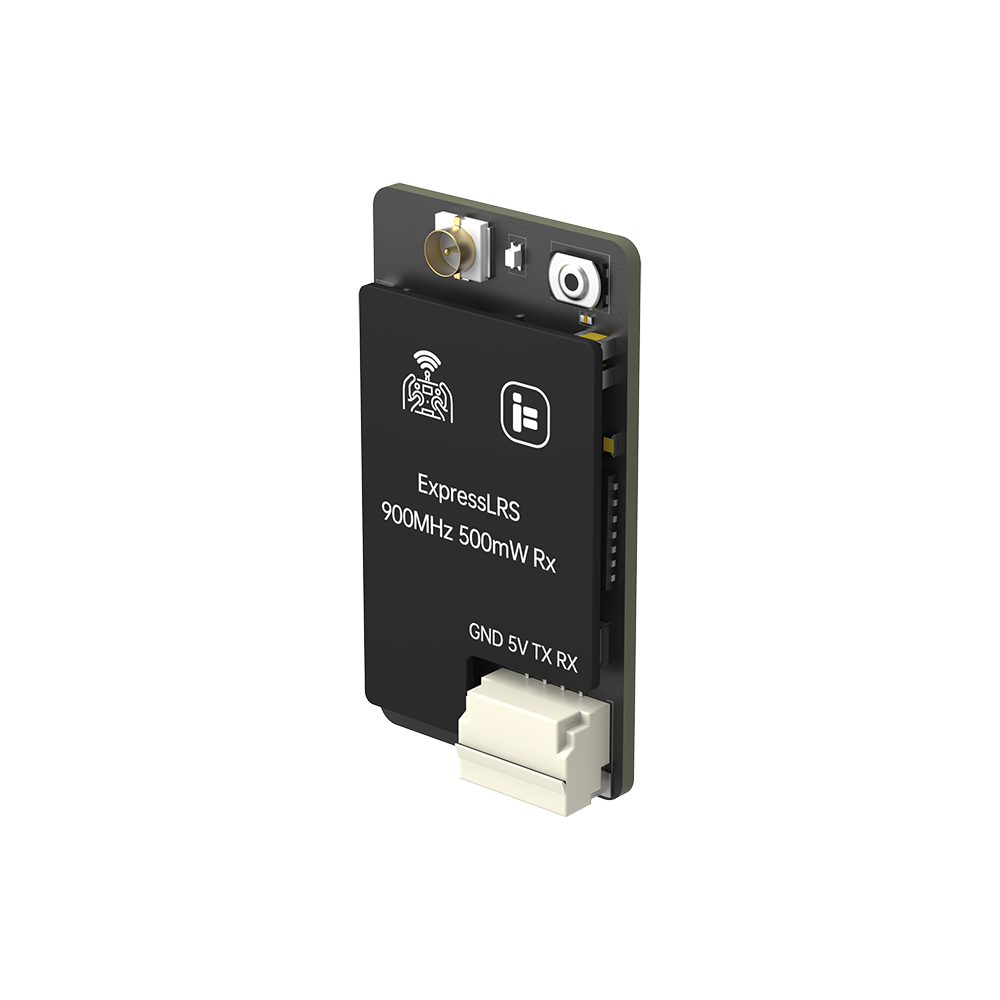

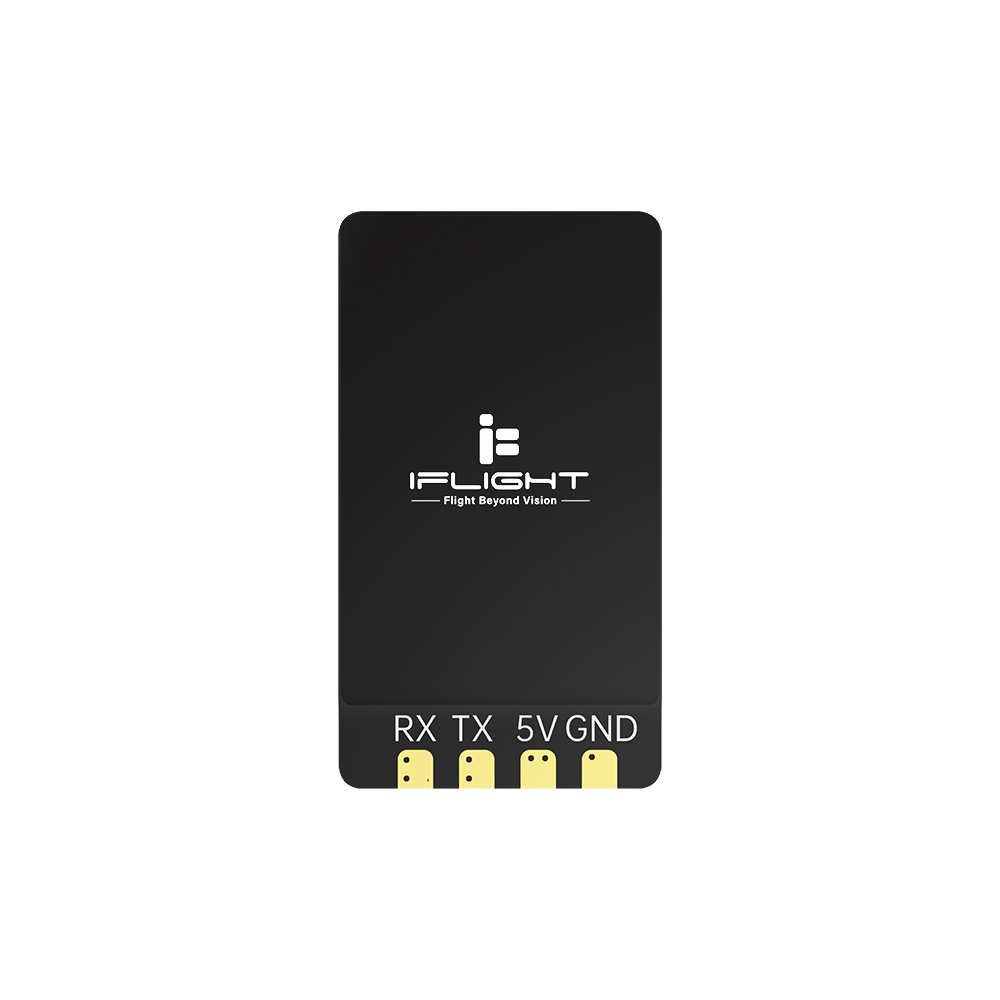

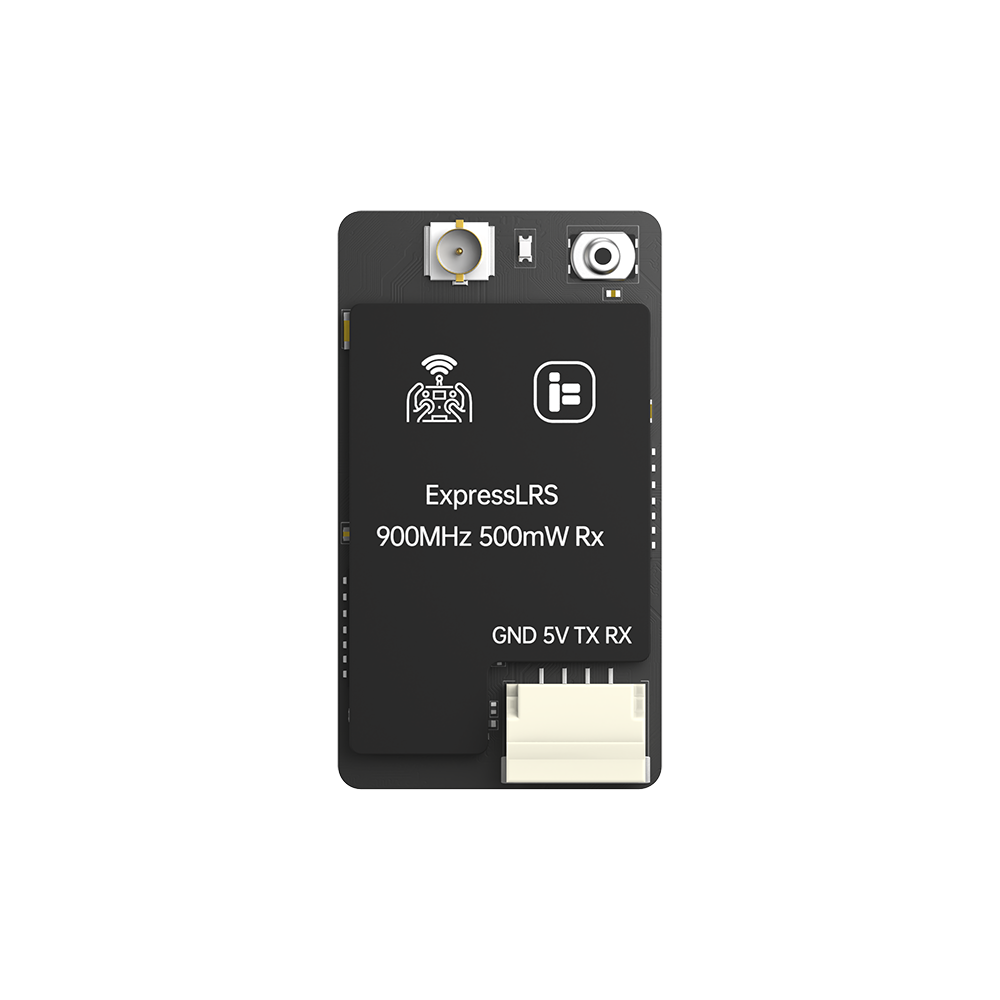

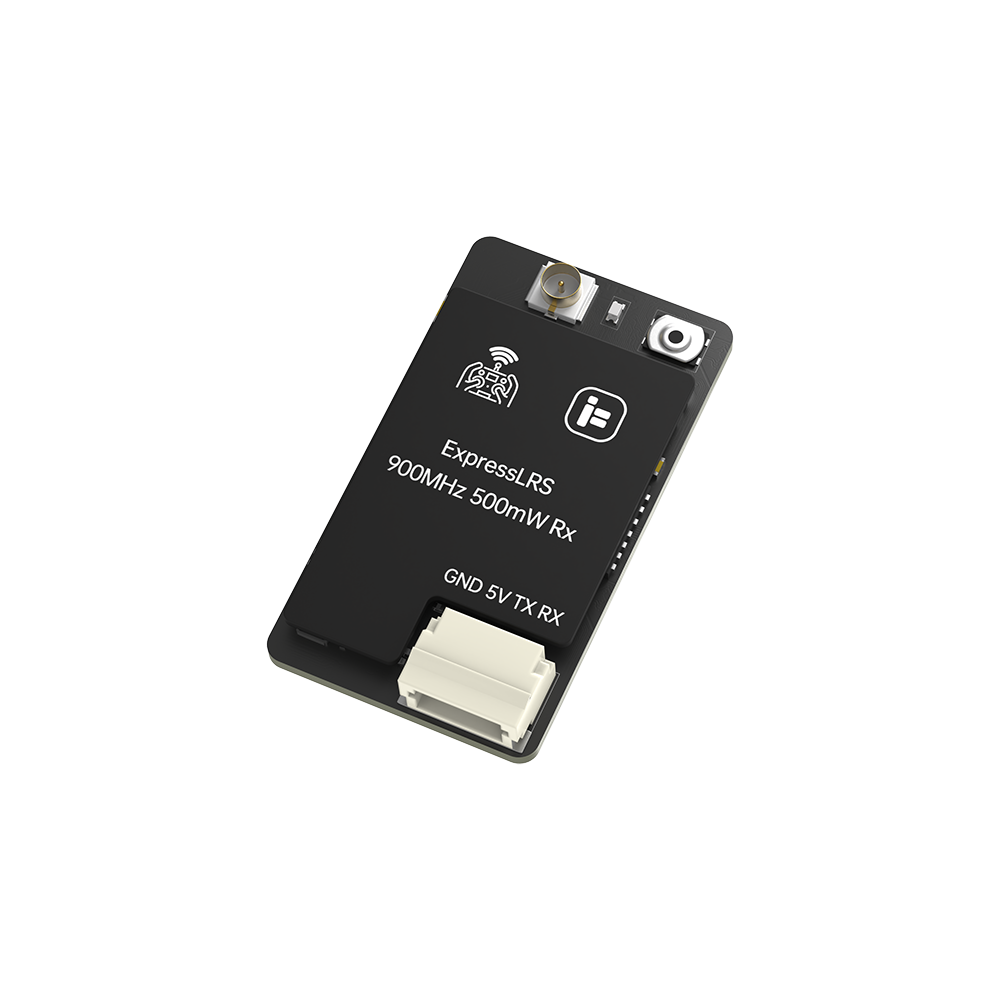

ExpressLRS ELRS 500mW receiver (ELRS 868/915 RX+220mm antenna)

A new version of the iFlight ELRS Receiver is available. It features a temperature-compensated crystal oscillator that prevents frequency shifts caused by temperature changes, with a telemetry output of up to 500 mW. It significantly meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.

Function:
- One-sided electronic components, saving mounting space.
- Aluminum heatsink plate to protect electronic components and increase resistance to interference.
- Newly improved temperature compensated crystal oscillator, lower packet loss, high frequency stability.
- Pre-soldered SH1.0 connector (Plug&Play for easy installation with iFlight FC).
- Up to 500 mW of telemetry power, resulting in stronger telemetry signals and greatly reducing the incidence of telemetry loss.

Performance and Compatibility:
- Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).
- Flash the latest firmware and follow the ELRS community for updates, tutorials or posts.

Specifications
MCU: ESP 8285
Receiver type: Single antenna
Firmware: iFlight 900MHz 500mW RX
Lua Script: iF 900 500mW RX (868MHz/915MHz)
Frequency bands: 868MHz EU/915MHz FCC
Telemetry power: 100-500mW (20-27dBm)
Size: 14*25*4.3mm
Protocol: CRSF
LNA: N/A
Weight: 1.8g
Antenna length: 220 mm

The package includes:
1x ExpressLRS 500mW receiver
1x Antenna
