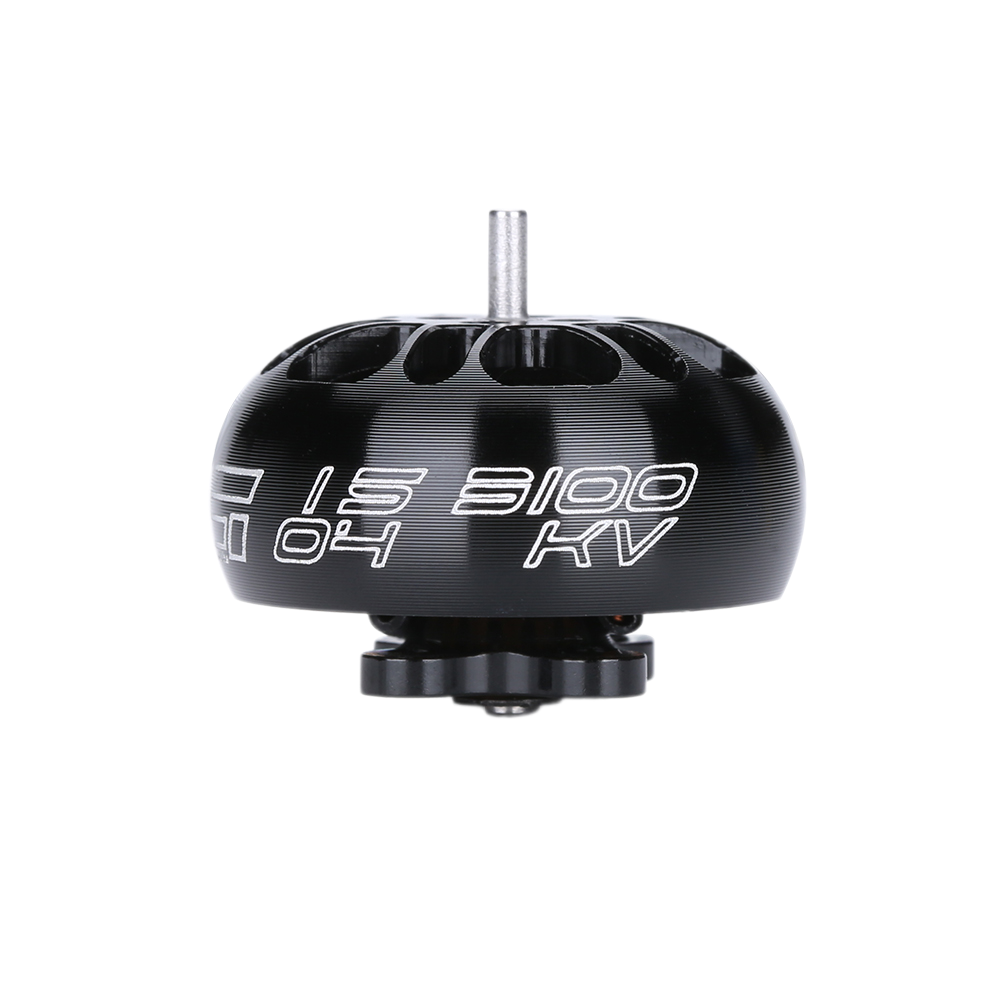

    XING 1504 FPV 3100KV motor

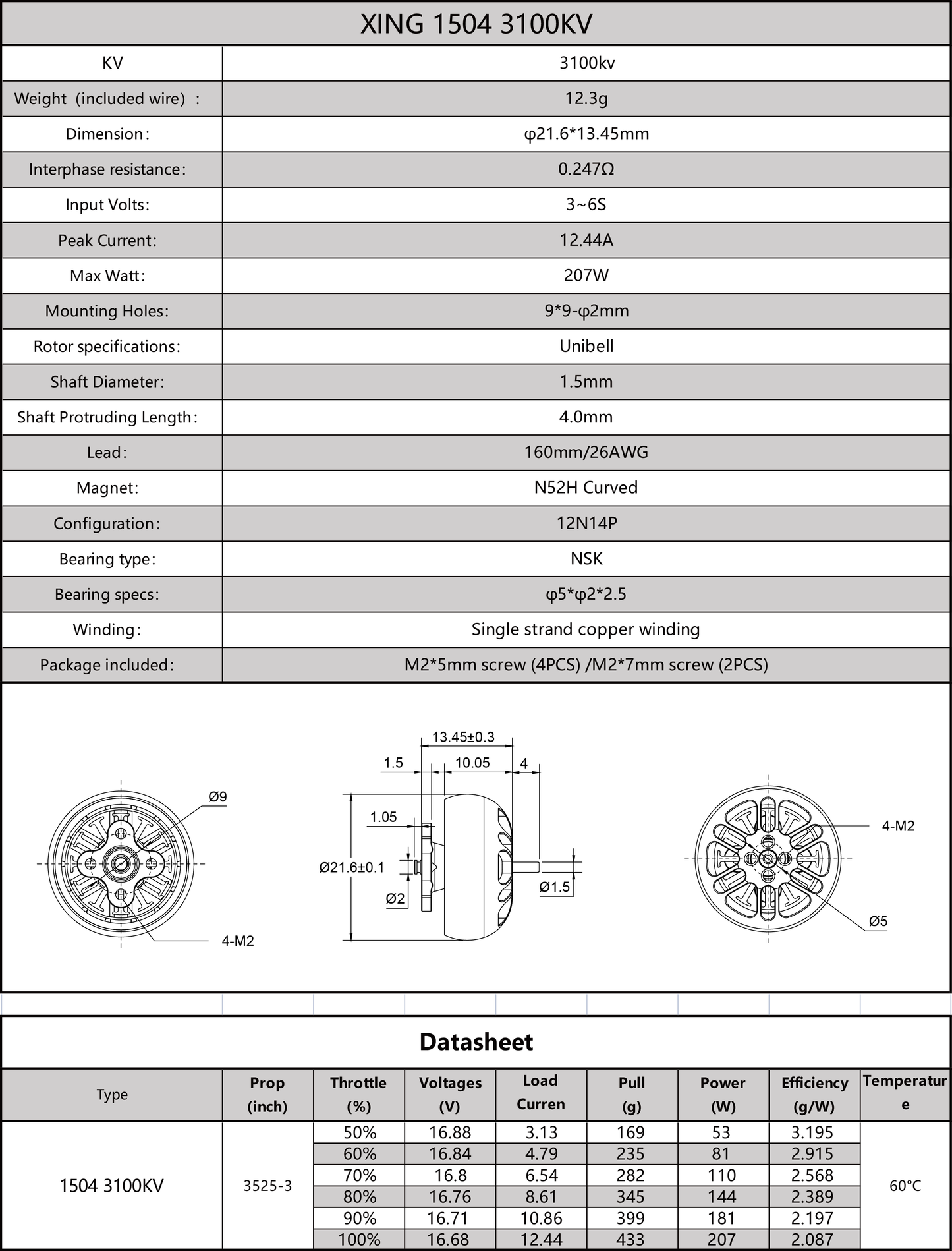

Specifications:
Model: XING 1504 Black Motor
KV: 3100KV
Weight (including wire): 12.3 g
Size: φ21.6*13.45mm
Phase-to-phase resistance: 0.247Ω
Input voltage: 3-6S
Peak current: 12.44A
Maximum power: 207W
Mounting holes: 9*9 φ2mm
Rotor specifications: Unibell
Shaft diameter: 1.5 mm
Length of protruding shaft: 4.0 mm
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ5*φ2*2.5
Winding: Single-core copper winding

The package includes:
1 x XING 1504 3100KV black motor
