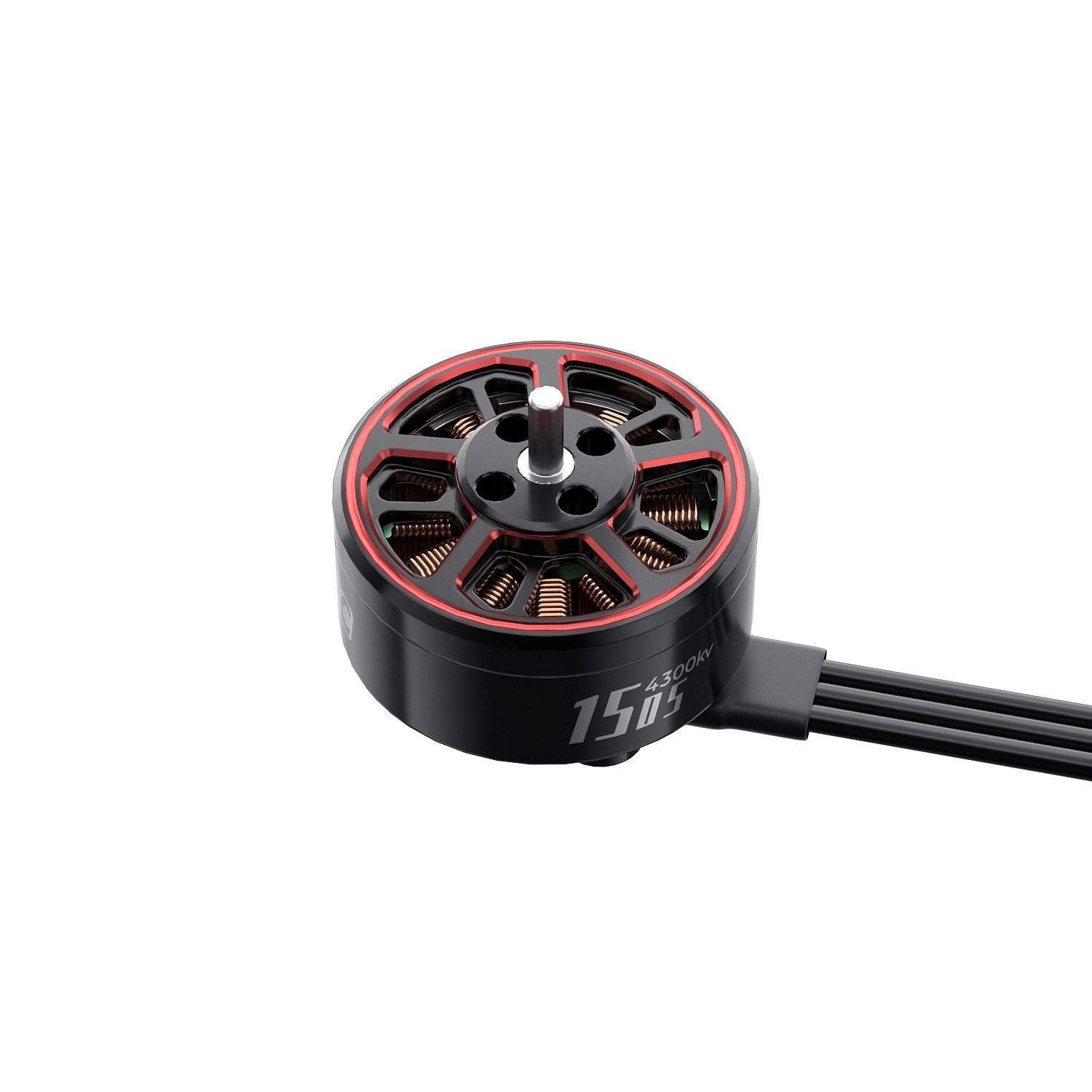

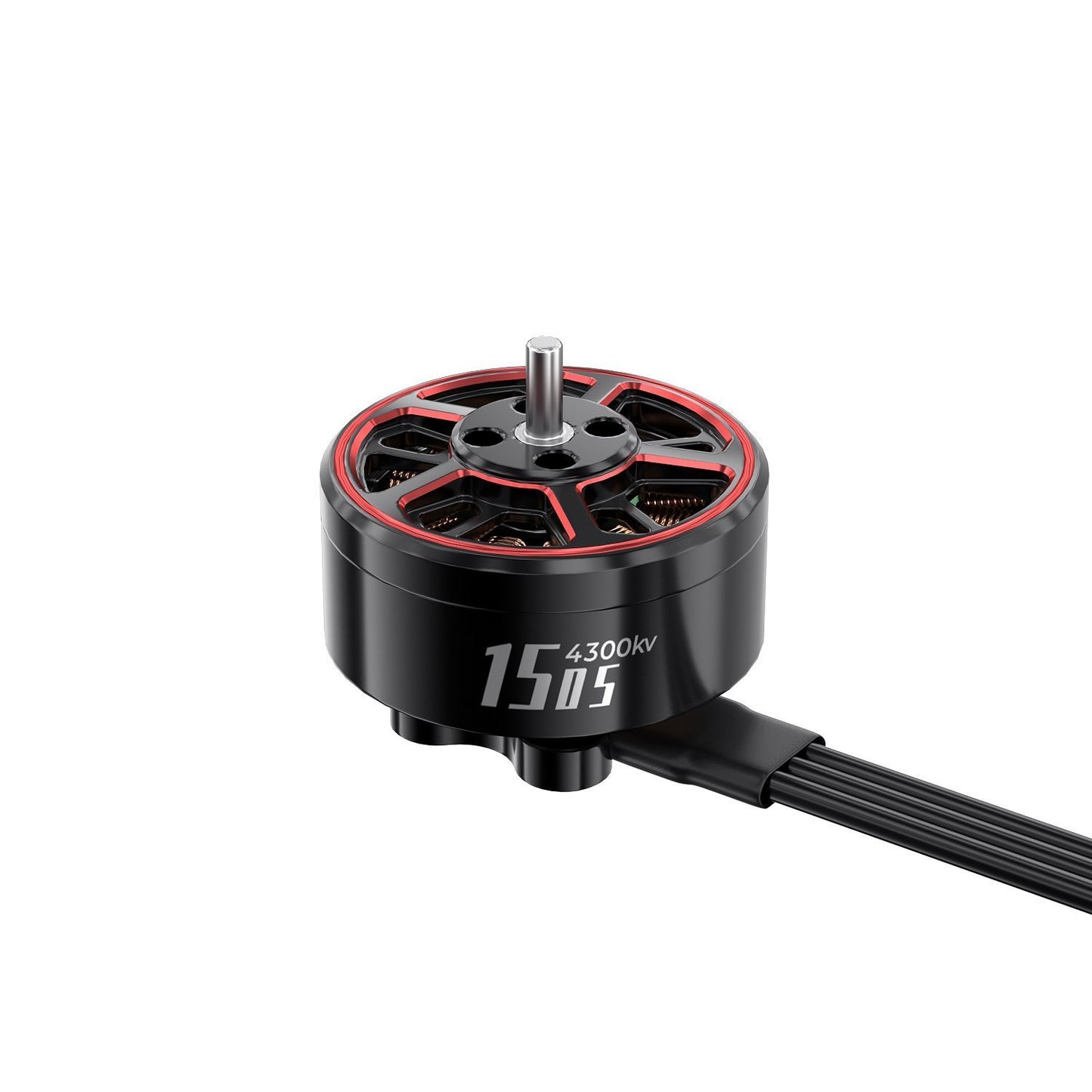

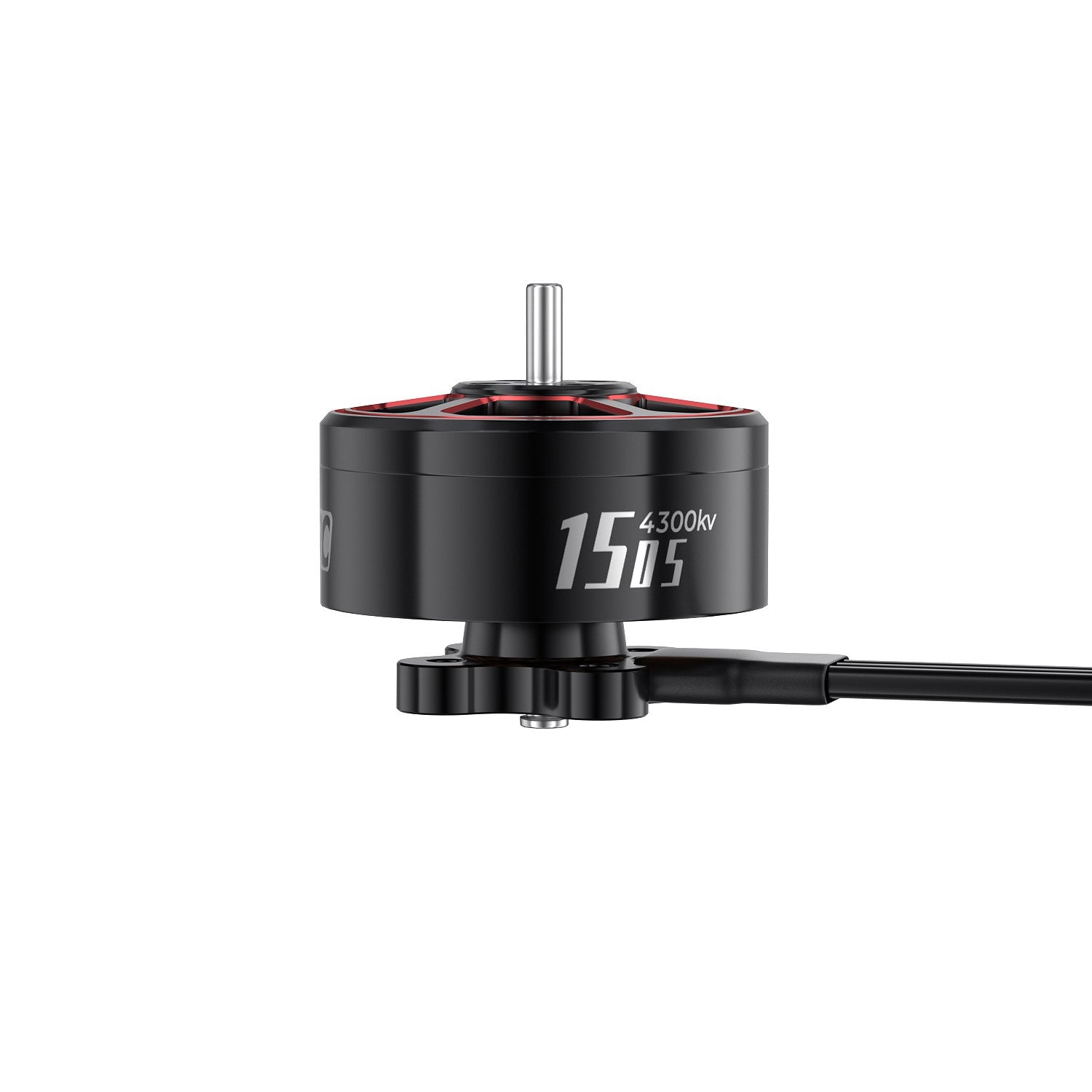

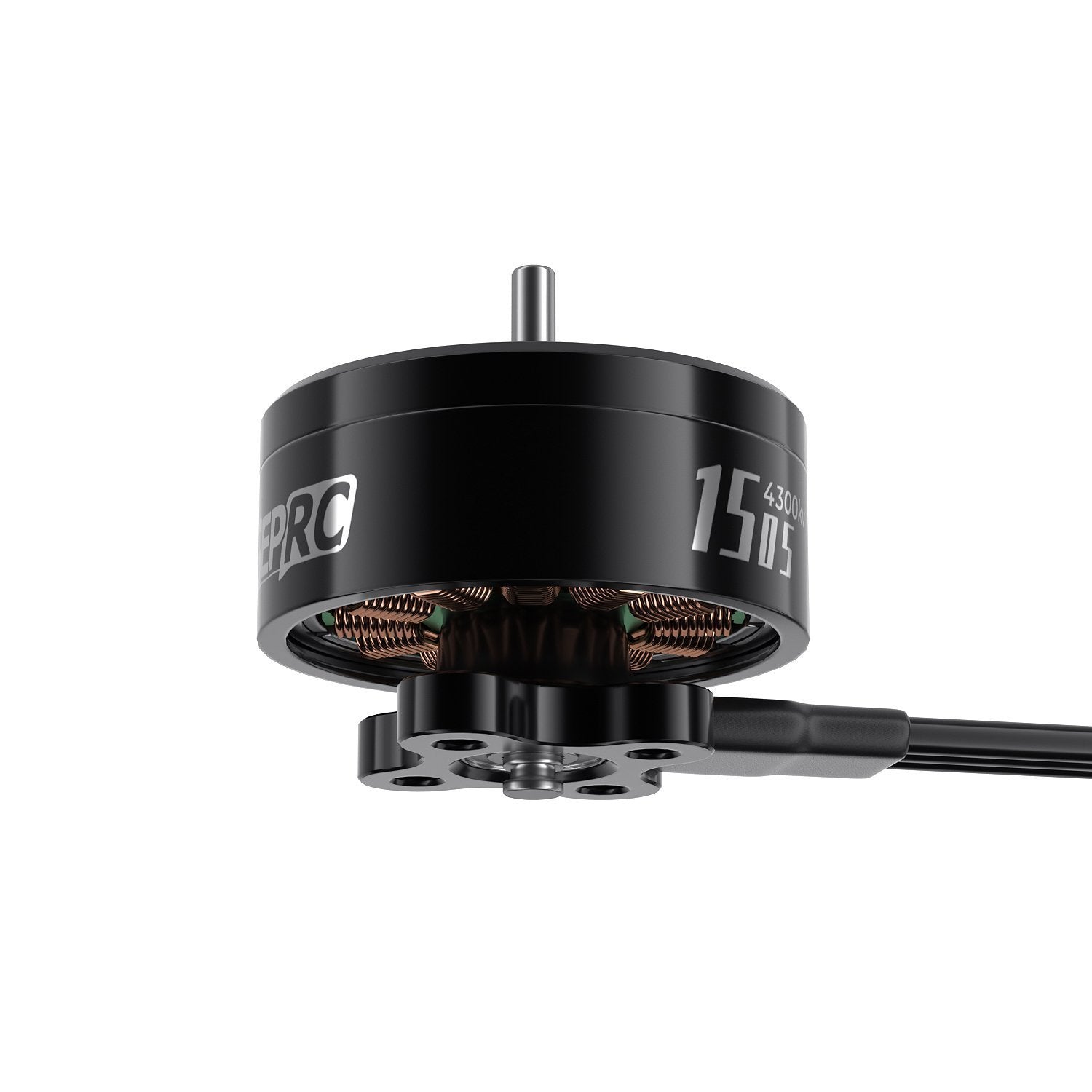

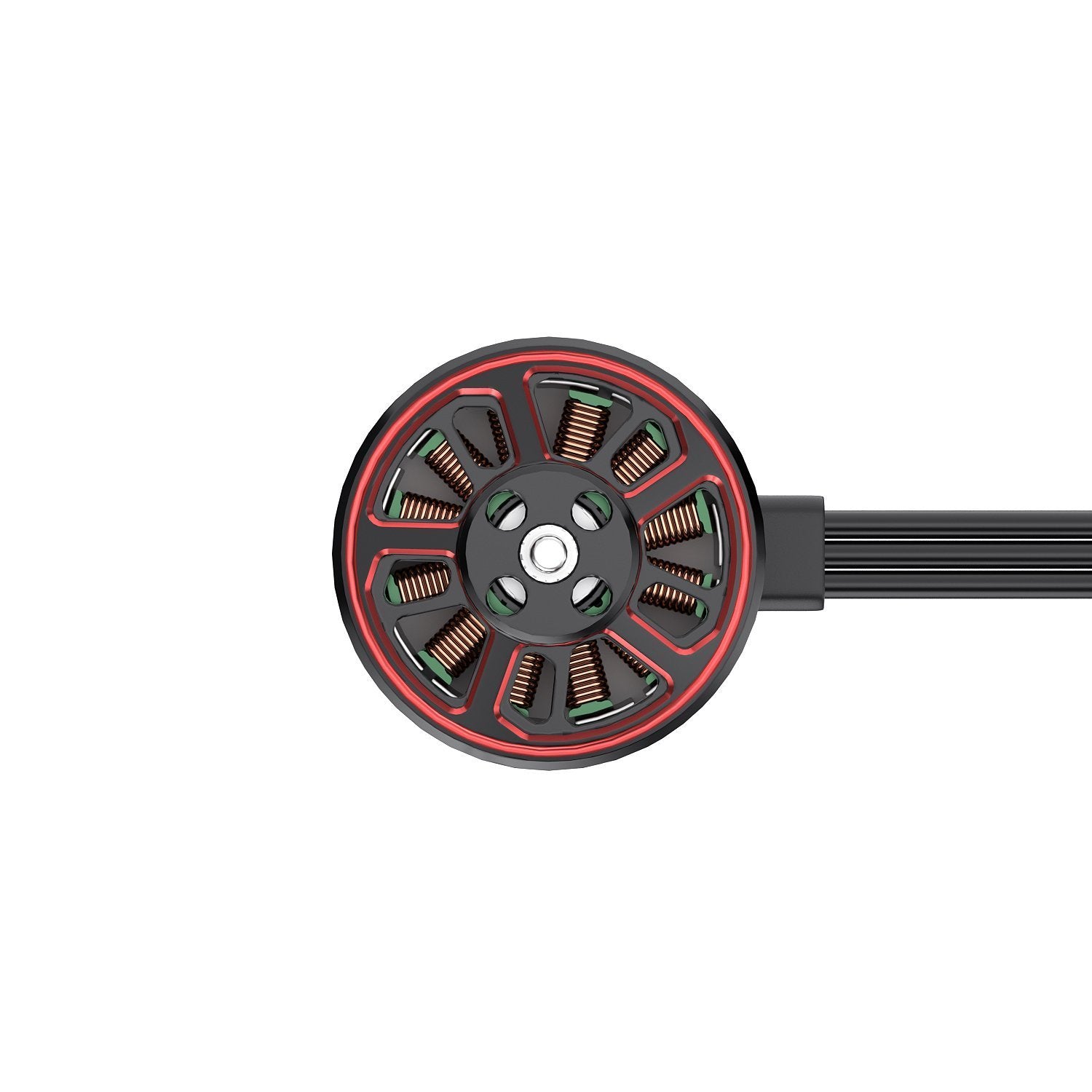

SPEEDX2 1505 4300KV motor
Description: The motor is compatible with 2.5-3.5 inch propellers. Thanks to high-precision and durable bearings, the motor has a longer service life.
Features:
- The combination of matte black and red enhances the look.
- Using high precision, durable bearings.
- Light design, high power density.
- Suitable for 2.5 to 3.5 inch lightweight drones.
Specifications:
- Model: SPEEDX2 1505 4300KV motor
- Maximum power: 340.9W
- Peak current: 21.56A/3s
- Resistance between phases: 97mΩ
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 12N/14P
- Dimension: φ19.5mm x 13.9mm
- Shaft diameter: φ1.5mm
- Length of protruding shaft: 4 mm
- Mounting holes: 9 mm x 9 mm (M2)
- Wire: 160mm/26AWG
- ESC: 20A-30A
- Input voltage: 16.8V (4S LiPo)
- Winding: Single-strand copper winding
- Weight: 12.7g (including wire)
- Suitable for: 2.5 to 3.5 inch lightweight models
Contains:
- 1 x SPEEDX2 1505 4300KV motor
- 6 x M2*5mm screw
- 6 x M2*7mm screw
