Code: SKU:01070003_3
Micro TX Module BETAFPV ELRS 868MHz
Micro TX Module BETAFPV ELRS 868MHz
Brand: BETAFPV
Regular price
€39,92
Regular price
€39,92
Sale price
€39,92
Unit price
/
per
Taxes included.
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Payment methods
- Description
- Related Files
- Discussion
NOTE: This model is end of life, see available alternatives
https://www.hobbydrone.cz/en/tx-module-betafpv-micro-v2-868-915-mhz/

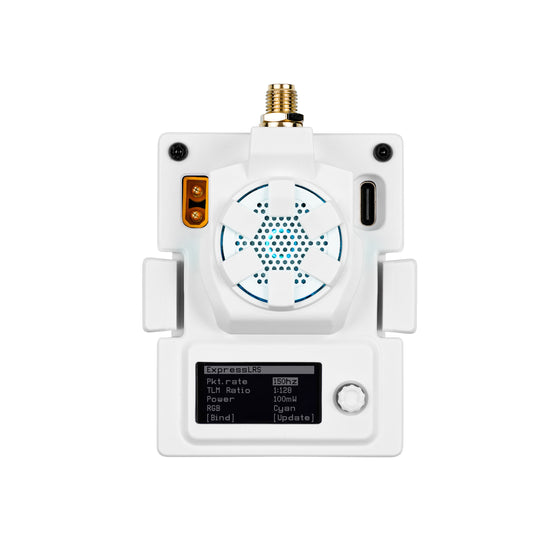

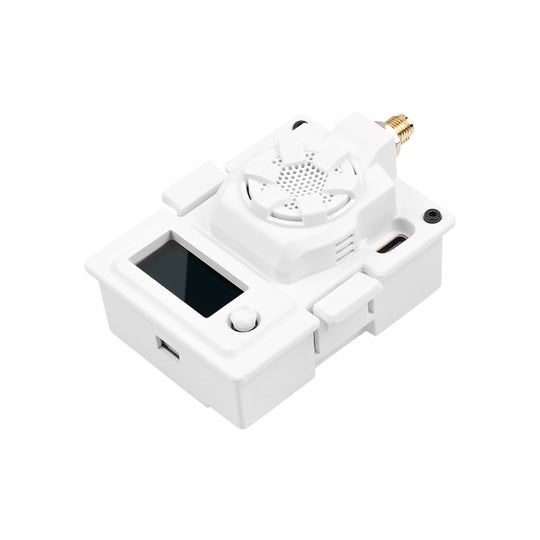

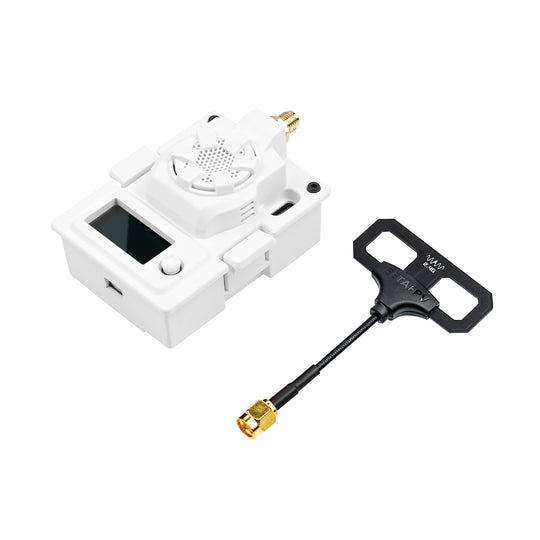

ELRS Micro TX module (868 MHz) The BETAFPV Micro RF TX module is based on the ExpressLRS project, an open-source RC link for RC applications. The ELRS Micro TX module has an improved module housing with a 6.5 x 13.5mm USB port cover that is compatible with most USB Type-C cables. Specifications: Item: ELRS Micro TX Module (868MHz) Input voltage: 5V-12V XT30 port: 5V-12V, recommend 2S (8.4V) battery, DO NOT SUPPORT 3S (12.6V) or higher USB port: Type-C Packet refresh rate: 25Hz, 50Hz, 100Hz, 200Hz RF output power: 100mW, 250mW, 500mW Frequency bands: 915MHz FCC/ 868MHz EU Cooler: Not included Backpack Feature: Currently not supported Package: 1 x BETAFPV ELRS Micro TX module 1 x BETAFPV Moxon antenna (868 MHz) 1x Monopole antenna 1 x Micro TX module user manual 1 x Replacement USB Data Cable (Type-A to Type-C)
