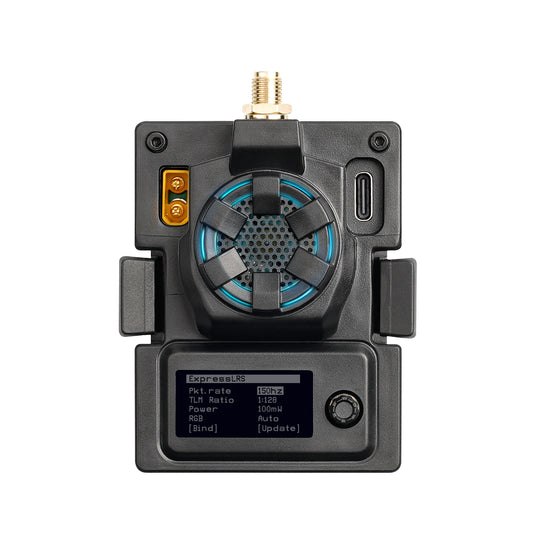

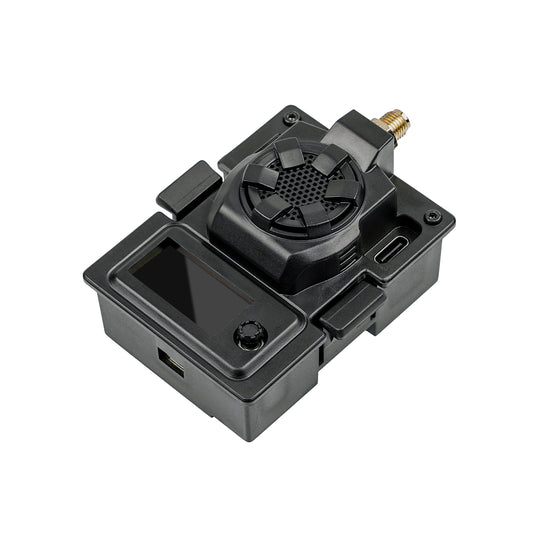

ELRS Micro TX module (2.4GHz, 1W)

The BETAFPV Micro RF TX module is based on the ExpressLRS project, an open-source RC link for RC applications. The ELRS Micro TX module has an improved module housing with a 6.5 x 13.5mm USB port cover that is compatible with most USB Type-C cables.

Specifications:
Item: ELRS Micro TX Module (ELRS 2.4G, 1W)
Input voltage: 5V-12V
XT30 port: 5V-12V, recommend 2S (8.4V) battery, DO NOT SUPPORT 3S (12.6V) or higher
USB port: Type-C
Packet refresh rate: 50Hz, 150Hz, 250Hz, 500Hz
RF output power: 25mW, 50mW, 250mW, 500mW, 1W
Frequency bands: 2.4 GHz ISM
Cooler: Included
Backpack Features: Support

Package:
1 x BETAFPV ELRS Micro TX module
1 x BETAFPV Moxon Antenna (2.4G)
1x Monopole antenna
1 x Micro TX module user manual
1 x Replacement USB Data Cable (Type-A to Type-C)
