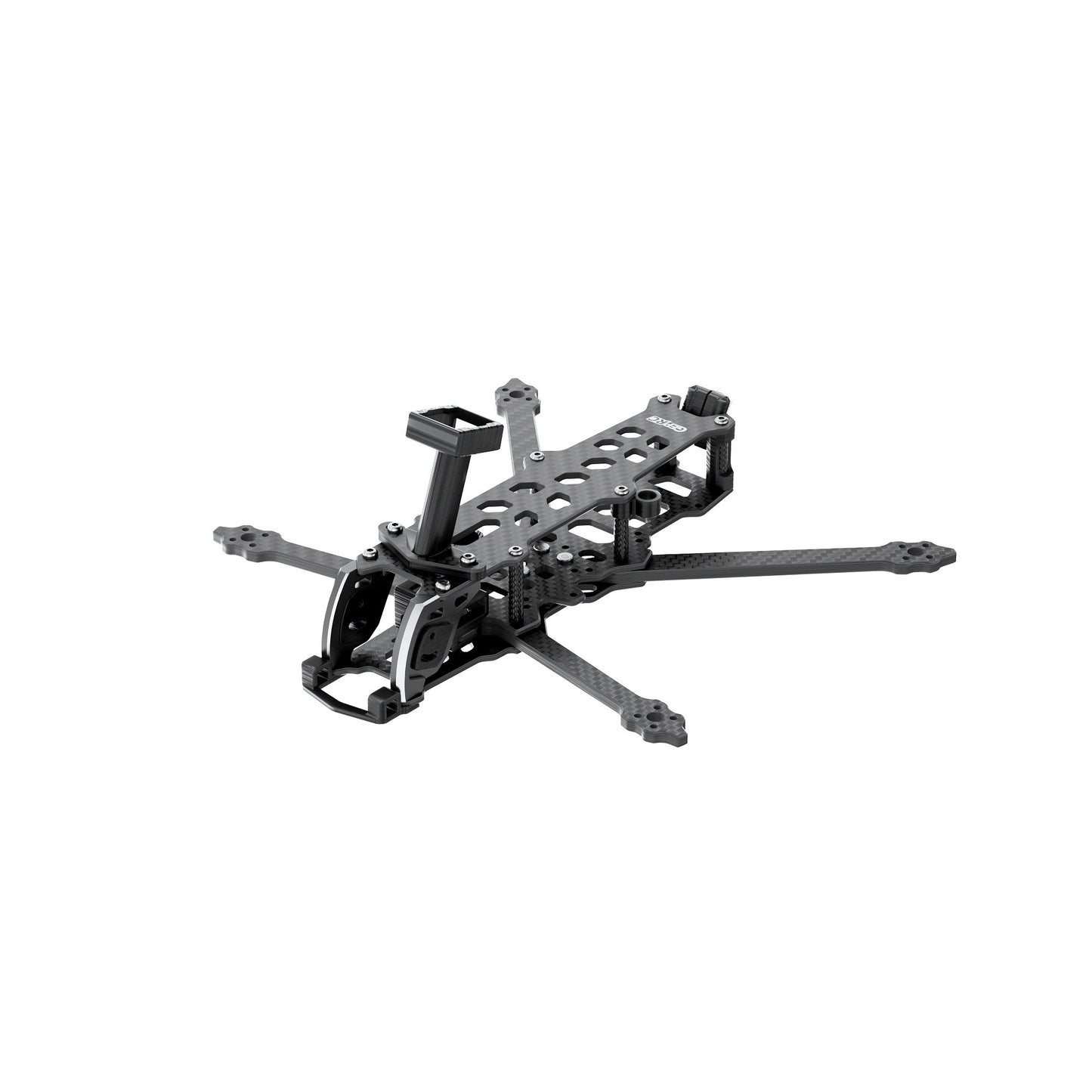

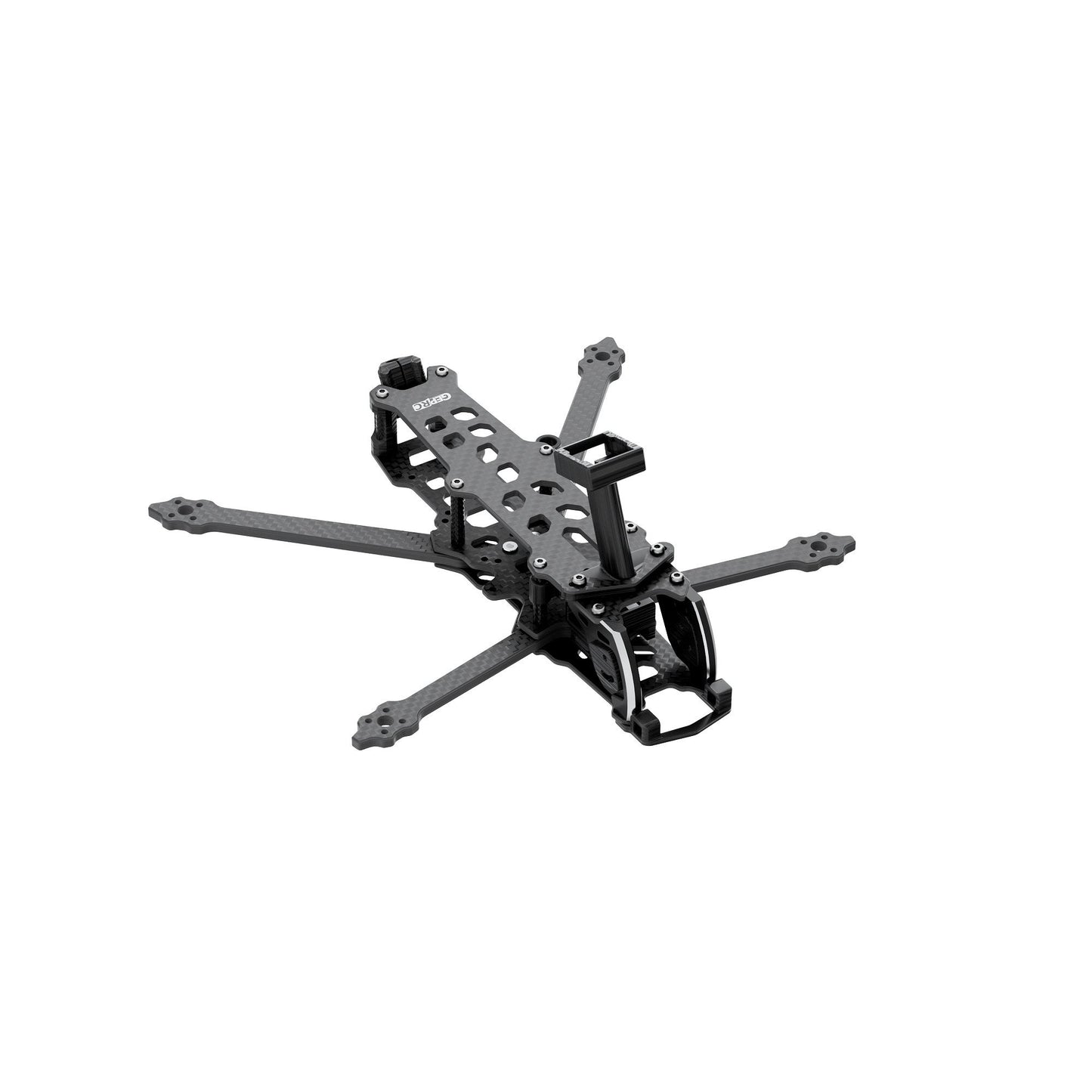

GEPRC Tern-LR40 frame The Tern-LR40 frame is specially designed for 4-inch long-range FPV drones. Thanks to carefully engineered DC-shaped construction, a series of light weight experiments and the use of 7075 aviation grade aluminum parts, the Tern-LR40 frame achieves low weight and high stiffness. The top GPS mount eliminates interference and ensures stable reception. In addition, the silicone damping pad effectively reduces the frequent vibrations of the O3 module caused by instability. Specifications: Frame: GEP-Tern-LR40 Motor-motor distance: 180 mm Top plate: 1.5 mm Middle plate: 2.0mm Arm thickness: 3.5 mm Bottom plate: 1.5 mm Mounting holes for FC: 20 × 20 mm / 25 × 25 mm Mounting holes for VTX: 20 x 20 mm / 25 x 25 mm Motor mounting holes: 9 x 9 mm Mounting width for camera: 20 mm Recommended propellers: 4-in Weight: 59 ±2 g The package contains: 1 × GEPRC Tern-LR40 frame
