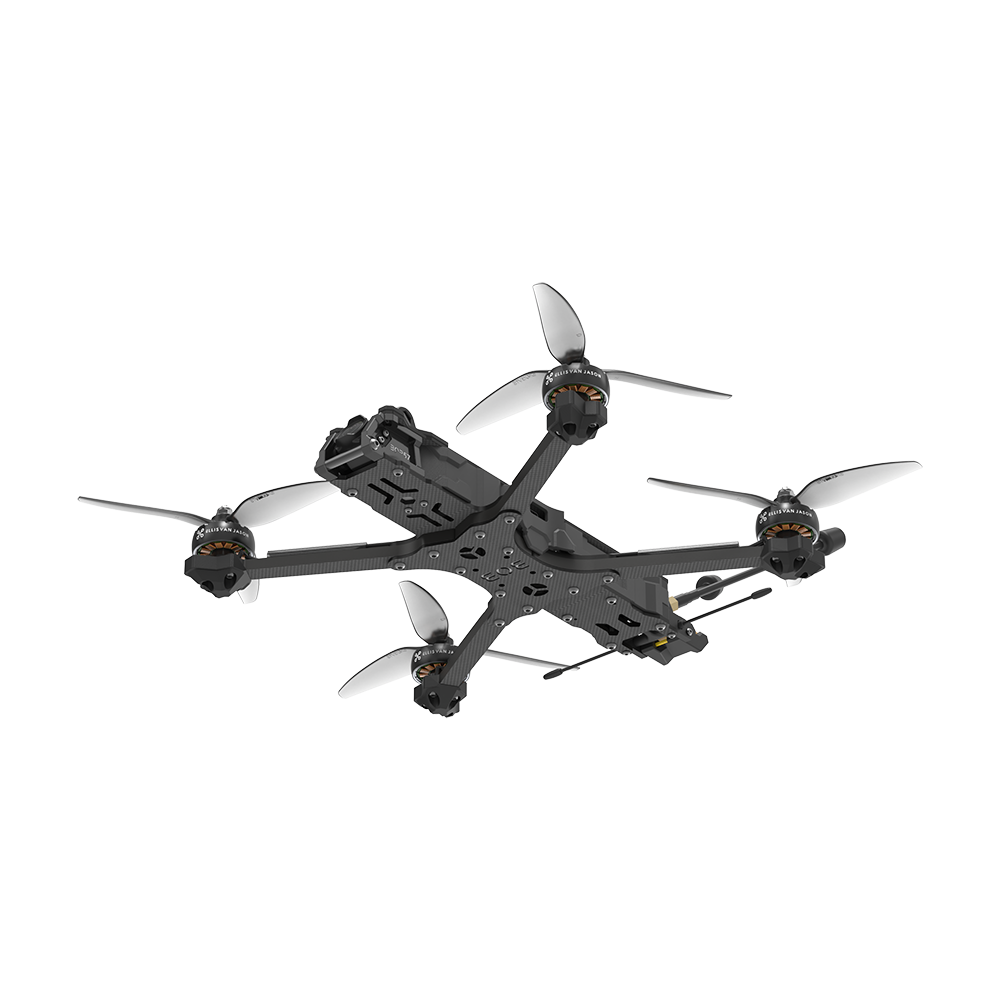

BOB57 HD 6S BNF (TBS) The iFlight BOB57 is a long-range HD drone designed in collaboration with pilot and cameraman Ellis van Jason. The team created this 6-inch cinematic drone that delivers agility and flight time while combining the benefits of 5-inch and 7-inch drones for both cinematic and free-flight. Function: - Hybrid engine design optimized for use with both two-blade and three-blade 6" propellers - Long spine with enough space to store 3000mAh 6S batteries - Fixed antenna holder for less vibration when using long antennas - Shell Gladiator protects against dust and water drops - ESC with built-in spike damper for greater reliability - Built-in BEC for direct GoPro camera power - 9 minutes flight time with 3000mAh 6S Lipo - XT-60 front mount - DJI O3 air unit - Pre-installation of the GPS module Specifications: Product name: BOB57 O3 6S HD BNF FC: BLITZ F722 ESC: BLITZ E55 55A 4-IN-1 ESC Video transmission: DJI O3 Air Unit Frame: wheelbase 280 mm Engine: XING2 2506 engines Propeller: GEMFAN 6032-3 propeller Takeoff Weight: Approx. 580 g Dimensions (L×W×H): 226×166×34 mm Maximum speed: 180 km/h (manual mode) Maximum take-off height: 7000 m Maximum Hover Time: Approx. 8 minutes (with 6S 1400 without load.) Max Wind Speed Resistance: Level 7 Operating Temperature Range: -10° to 40° C (14° to 104° F) Antennas: 2 antennas GNSS: GPS+SBAS+Galileo+QZSS+Glonass Receiver option: TBS Crossfire NANO RX Video transfer Product Name: DJI O3 Air Unit Weight: Approx. 36.4 grams (including headband) Dimensions (L×W×H): L32.5 * W30.5 * H 14.5 mm Communication bandwidth: Max 40 MHz FOV (single screen): 155° Communication frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz End-to-End latency With DJI FPV Goggles V2: -810p/120fps Video transmission quality: Latency is lower than 28ms. -810p/60fps Video transmission quality: Latency is less than 40ms. With DJI Goggles 2: - 1080p/100fps video transmission quality: Latency is only 30ms. - 1080p/60fps video transmission quality: Latency is only 40ms. Maximum video transfer rate: 50 Mbps Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC) Operating temperature range: -10° to 40°C (14° to 104°F) Power consumption: 7.4-26.4 V Audio Transmission: N/A The package includes: 1 x BOB57 6S HD BNF 2x antenna 2x battery pads 2 x Prop (pairs)
