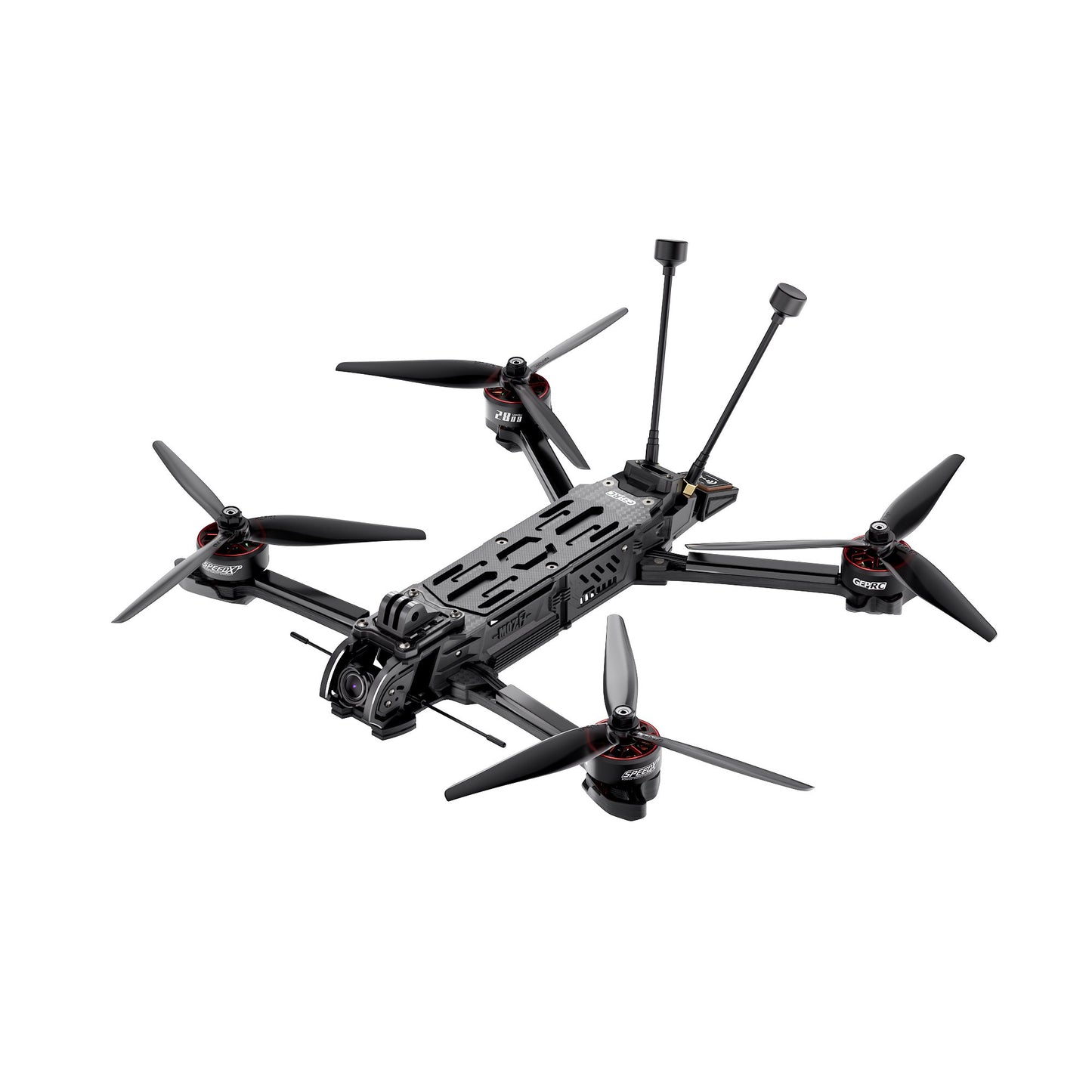

MOZ7 Wasp GPS ELRS24 The MOZ7 supports a maximum 30.5mm x 30.5mm installation and is compatible with various VTX and custom cooling systems. Innovative camera mounting method, the left and right position of the alternate aluminum camera part allows switching between 19mm and 20mm sizes. The fixed camera print is reinforced with a carbon plate to make the installation force more uniform and prevent deformation and deformation. Use the SPAN F722-BT-HD V2 stack and support wireless Bluetooth parameter setting. 2809 engines with HQ7.5*3.7*3 propellers are powerful. At the same time, it is equipped with GEP-M10-DQ GPS for long-distance flight protection. The forward antenna of the receiver prevents the fuselage from blocking the receiver signal due to a U-turn in the air. Use GEP-VTC6-6000mAh battery to fly for 30 minutes and with GoPro 10 to fly for 20 minutes. Specifications: Model: MOZ7 Frame: GEP-MOZ7 Dimensions: 280mm x 310mm Wheelbase: 320 mm Top plate: 3.0mm Bottom plate: 3.0mm Shoulder plate: 6.0 mm Slat plate: 3.0 mm Camera mount: 2.0mm VTX cover: 1.5 mm FC: SPAN F722-HD-BT V2 MCU: STM32F722 Gyroscope: 42688-P (SPI) VTX: Runcam Link Wasp ESC: GEP-BLheli32-50A Propeller: HQ7.5*3.7*3 Antenna: Momoda 5.8G RP-SMA LHCP 120MM Motor: 2809-1280KV (6s version) GPS: GEP-M10 Camera: Runcam Wasp Camera 120FPS Weight: 638.5g Receiver: ELRS 2.4G Recommended battery: VTC6 6S 6000mAh / LiPo 6s 3300mAh
