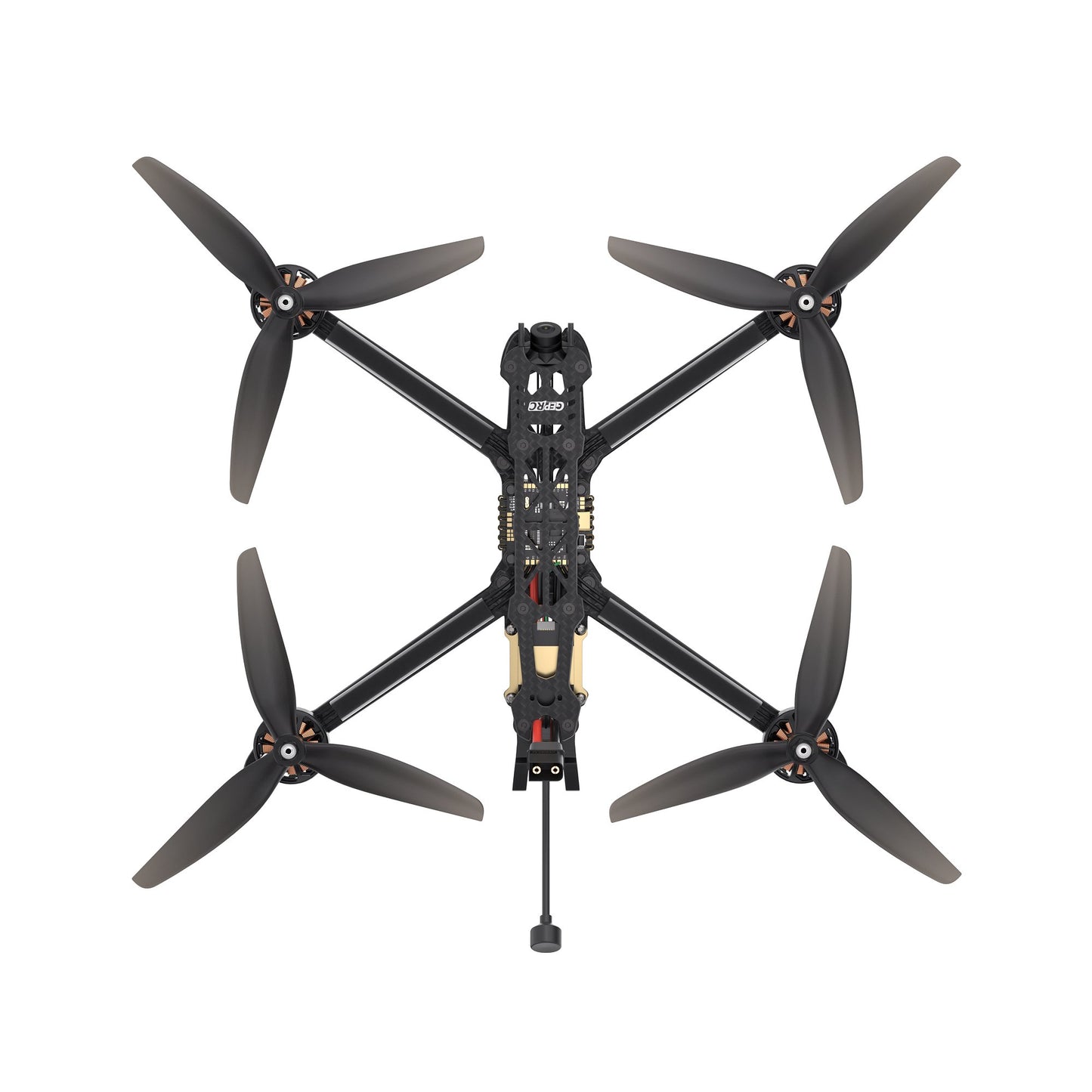

MARK4-LR7 Analog Elrs2.4G 1. Classic and attractive appearance 2. Adopt RAD 5.8G 1.6W high power VTX to ensure stable and reliable signal 3. For GEPRC E2806.5 1350KV motor, it is recommended to use 6S battery to ensure strong performance 4. Using F405 flight controller and BLheli_S 50A ESC with stable performance, the overall performance is stable and the hand feels comfortable 5. Using Caddx H1 camera, good visual experience Specifications Model: MARK4 7 inch FPV Frame: GEP-MK4-7 Wheelbase: 295 mm Top plate: 3 mm Bottom plate: 3 mm Shoulder plate: 5 mm Slat plate: 2 mm FC: GEPRC F405 V2 ESC: SPAN 50A BLHeli_S MCU: STM32F405RGT6 Gyroscope: ICM-42688-P OSD: Betaflight OSD with AT7456E chip VTX: GEPRC RAD 5.8G 1.6W Camera: Caddx H1 Antenna: Momoda 5.8G RHCP RP-SMA 120mm Engine: GEPRC E2806.5 1350KV Propeller: Gemfan 7037-3 Weight: 455g Receiver: ELRS 2.4 Recommended battery: Lipo 6S 2600mah-4200mah / Lion 6S 6000mah Flight time: 12-30 minutes
