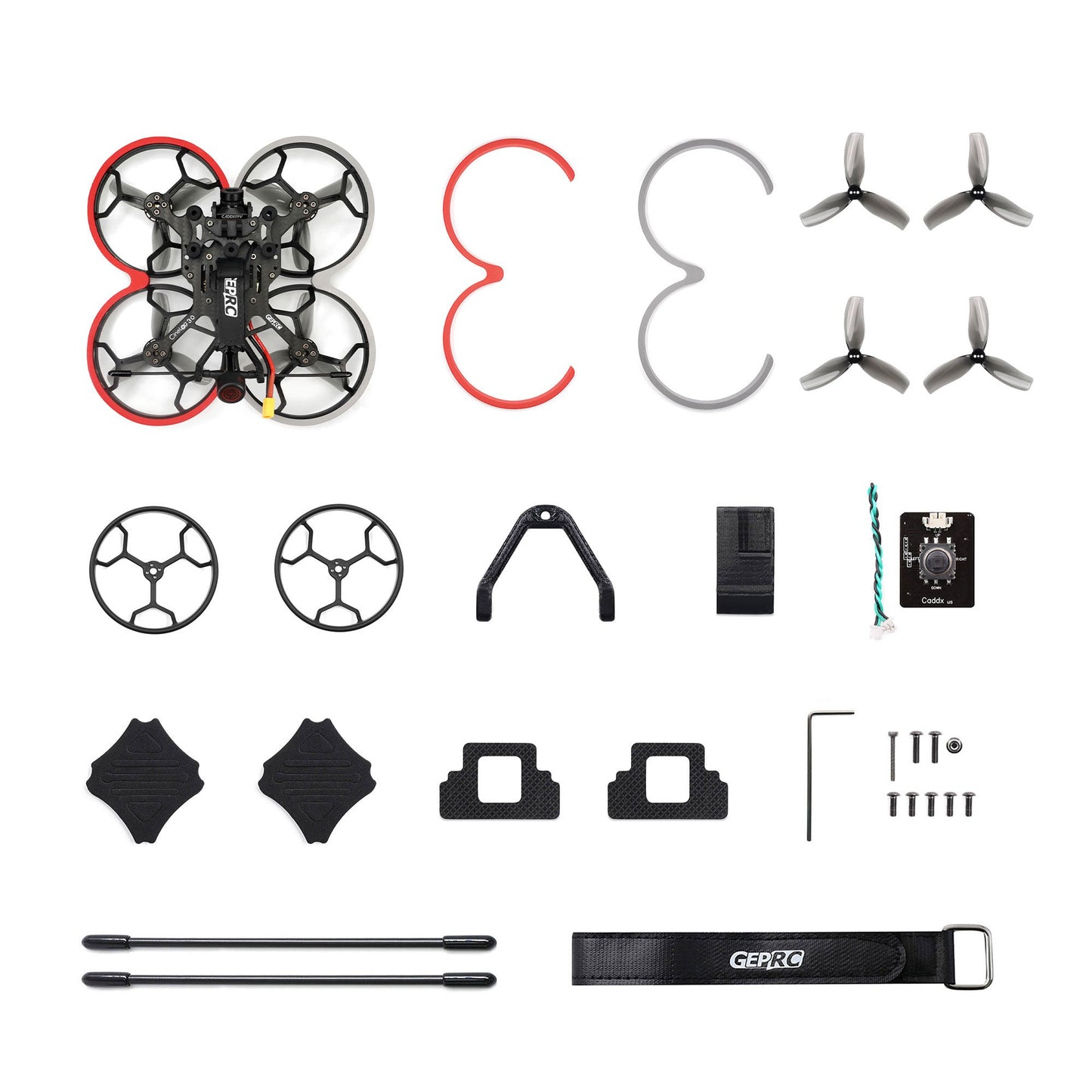

GEPRC CineLog30 Analog ELRS 2.4G The latest 3 inch quadcopter from GEPRC is developed based on cinglog25. It has stronger power with 1404-3850kv engine and HQProp T76MMX3 propellers. Ultra light fuselage and CineLog30 Analog equipped with 4s 660mAh battery, take-off weight is only 204g. Flight duration is 7.5 minutes. GP8 naked camera and INSTA 360 GO2 camera can be installed with the mounting base. Specifications: Model: CineLog30 Analog Brand: GEPRC Frame: GEP-CL30 Wheelbase: 126 mm Top plate: 2.0mm Bottom plate: 2.0mm Shoulder plate 3.0 mm FC system: GEP-F411-35A AIO MCU: STM32F411 Gyroscope: 6-axis OSD: BetaFlight OSD with AT7456E chip ESC: BLheli_S 35A VTX: GEP-600mW-VTX Camera: Caddx Ratel2 Propellers: HQProp T76MMX3 Antenna: GEPRC Momoda 5.8g MMCX RHCP 100mm Engine: GEPRC GR1404-3850KV CineLog30 analog weight: 140.0 g Receiver: ELRS 2.4G Battery used: GEPRC 4S 660 mAh With naked camera GP8 (sub250g): 4S 660mAh 7-8min
