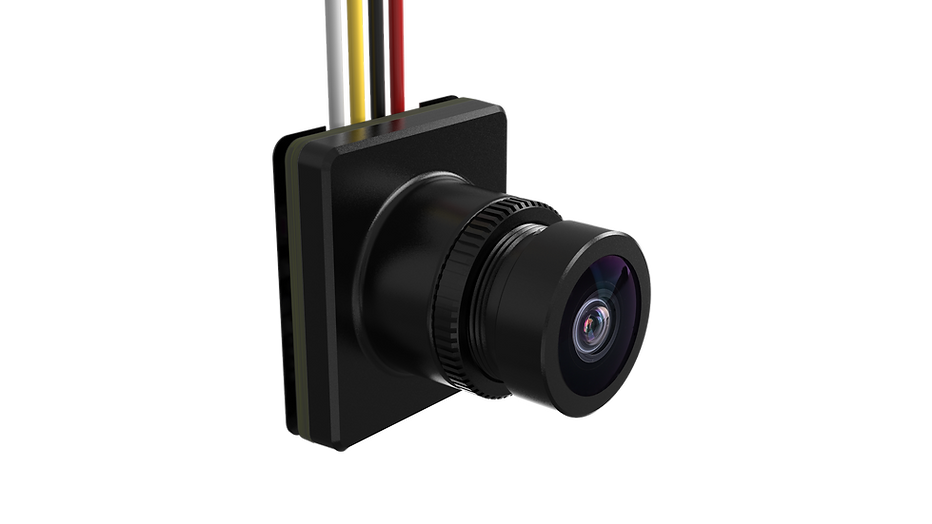

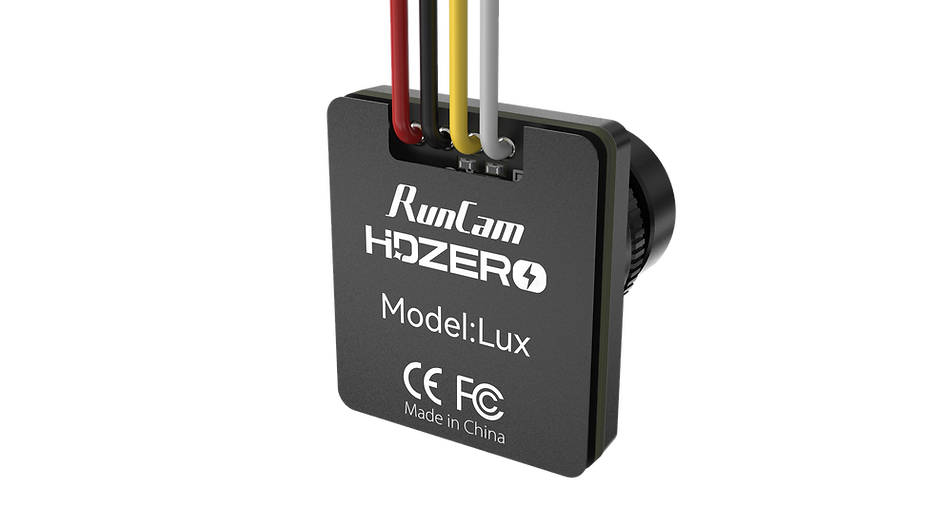

RunCam HDZero Lux is a premium lightweight camera designed specifically for whoop and micro drones. Its compact size, half-inch CMOS sensor and high durability make it an ideal choice for drone enthusiasts looking for excellent performance.
Key Features
- Top image quality: The camera is equipped with a half-inch CMOS sensor that provides sharp images and excellent low-light performance, so you can capture every detail even in challenging lighting.
- Innovative video output: HD composite video is transmitted using a single cable instead of the traditional MIPI cable, which reduces size, cost and increases durability.
- Optimized aspect ratios: Designed for a 4:3 aspect ratio, switchable to 16:9 with a slightly reduced vertical field of view (FOV), ensuring versatility for a variety of flying styles.
- Ultra-wide field of view: Features a vertical FOV of 94° (4:3), which is ideal for fast flying in close proximity to obstacles, whether indoors or outdoors.
- Lightweight design: Weighing just 2.3g, the camera is optimized for ultralight drones like the Tiny Whoop, where every gram counts.
Specifications
- Manufacturer: RunCam
- Model: HDZero Lux
- Sensor Size: 1/2 inch
- Resolution: 720p @ 60fps
- Sensitivity: 10,650 mV/Lux-sec
- Shutter: Rolling Shutter
-
Field of View (FOV):
- 4:3: L:155°, H:126°, H:94°
- 16:9: L:170°, H:145°, H:82°
- Power supply: 3.3-5V
- Power consumption: 0.5 W
- Weight: 2.3g
- Dimensions: 14 mm × 16 mm × 14 mm
