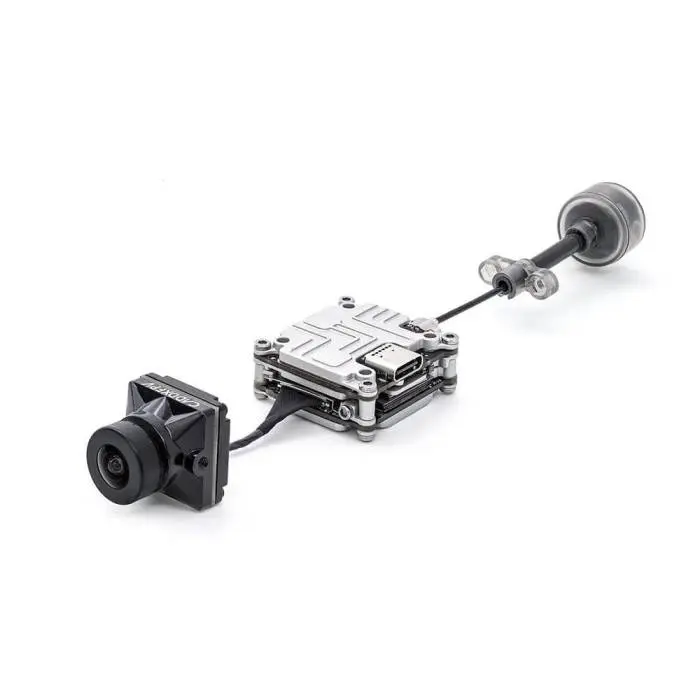

Nebula Pro Vista Kit (8cm, Black) The Caddx Nebula Pro Vista Kit is a next generation Vista kit with the new and improved Nebula Pro camera. It supports 5.8GHz digital video signal and 720p 120fps image transmission. The Caddx Nebula Pro with Vista is designed for FPV drones and can be used with DJI FPV Goggles, providing high-resolution digital images and a transmission range of up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel to help reduce mutual interference and provide an optimal racing experience. Users can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers and also mount on racing drones. Specifications Model: Vista Kit (Nebula Pro) Hardware supplied: Vista / Nebula Pro / Coaxial cable / Antenna Weight: Including camera: 27g / Antenna: 2.5g Dimensions: Vista Kit: 30x29x13mm Camera: 19 x 19 x 20 mm Coaxial cable length: 8 cm Operating frequency: 5.725-5.850 GHz Transmitter Power (EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm Min. Latency (end-to-end): Low Latency 720p 120fps: 12-28ms High quality mode: 720p 60fps: 30-40ms Max. Transmission distance: FCC/SRRC: 4 km, CE: 0.7 km I/O interface: USB-C, IPEX, 3 in 1 port Supported flight control system: F3, F4, F7 Operating Temperature Range: 32° to 104° F (0℃ ~40℃) Power consumption: 7.4-26.4V Output power: 25mW/200mW/500mW/700mW Glasses: working with DJI Goggles Camera: Sensor: 1/3''CMOS Lens: 2.1mm, f/2.1 Shutter: Shutter FOV: 150°(D), 122°(H), 93°(V) The package includes: 1 x Caddx Nebula Pro Vista Kit
