FPV Camera CaddxFPV Caddx Ant (Black 16:9)

Name: FPV Camera CaddxFPV Caddx Ant (Black 16:9)
Brand: Baltic Drones
SKU: MN06-00B69
Price: 21.08 EUR
Availability: InStock

FPV Camera CaddxFPV Caddx Ant (Black 16:9)

Brand: CaddxFPV

€21,08

~~€21,08~~ €21,08

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

Caddx Ant (Black 16:9)

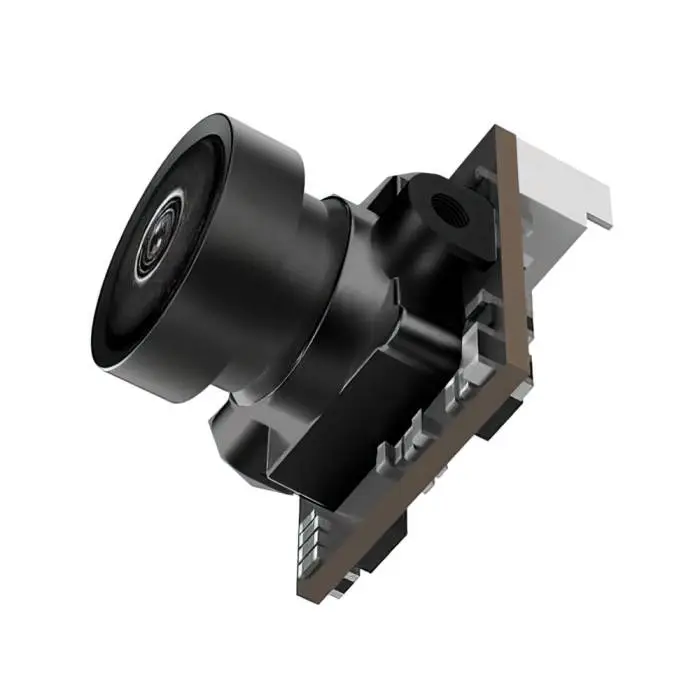

Caddx Ant Nano Camera is a 14x14mm ultra-light, affordable camera that weighs only 2g and supports OSD Menu, 3.7-18.V, Global WDR, NTSC or PAL and CVBS video output. A unique feature of this camera is that it includes 3D DNR, which gives you a completely clear image, so you don't have to worry about your image being grainy or noisy while flying. For larger setups, you can mount the Nano in a 19mm bracket (included).

Specifications

Model: Caddx Ant Nano Camera
Image: 16:9
Black color
Electronic shutter: PAL: 1/50-100,000; NTSC: 1/60-1000,000
Dimensions: 14x14mm (with holder for 19x19mm)
TV system: NTSC & PAL (variable)
Image sensor: 1/3" CMOS sensor
Min. Illumination: 0.001 Lux@F1.2
Horizontal resolution: 1200TVL
Working temperature: -20°C +60°C
Wide power input: DC 3.7-18V
Radio S/N: >52dB (AGC OFF)
Working humidity: 20% - 80%
Synchronization: Internal
Auto Gain Control: Yes
Video output: CVBS
WDR: Global WDR
Weight: 2g (N.W.)
Offer: Support
DNR: 3D DNR
Fove: 165°
Lens: 1.8mm
BLC: Yes

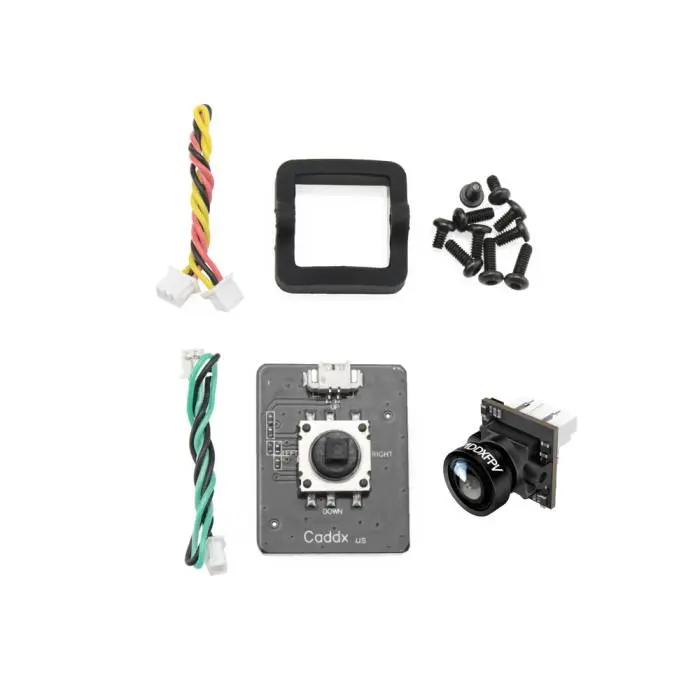

The package includes:
1x Caddx Ant FPV Nano Camera
1x 3pin FPV silicone cable
1x 5D-OSD Menu Board
1x FPV silicone cable
1x Warranty card
1x 19mm holder
4x screws
