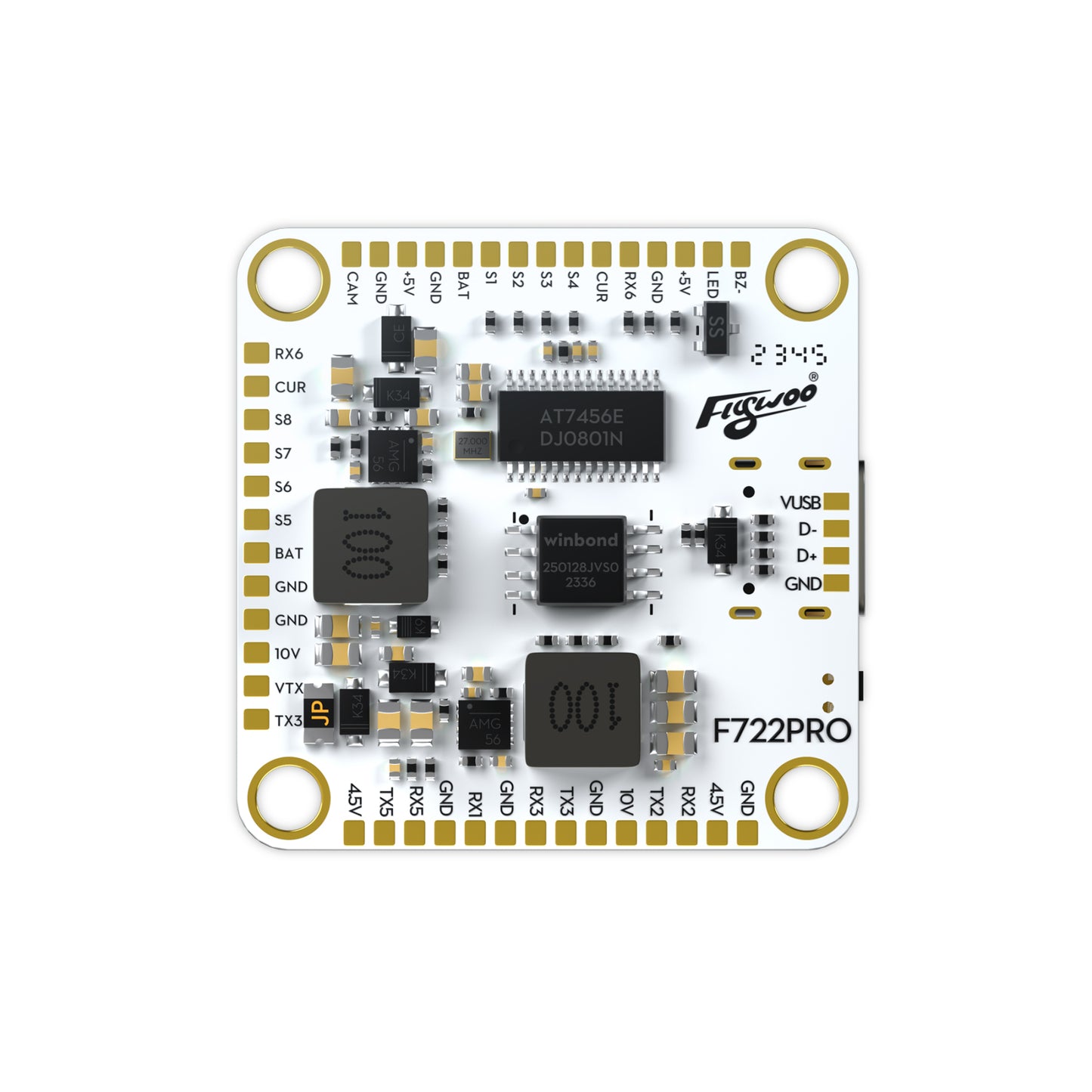

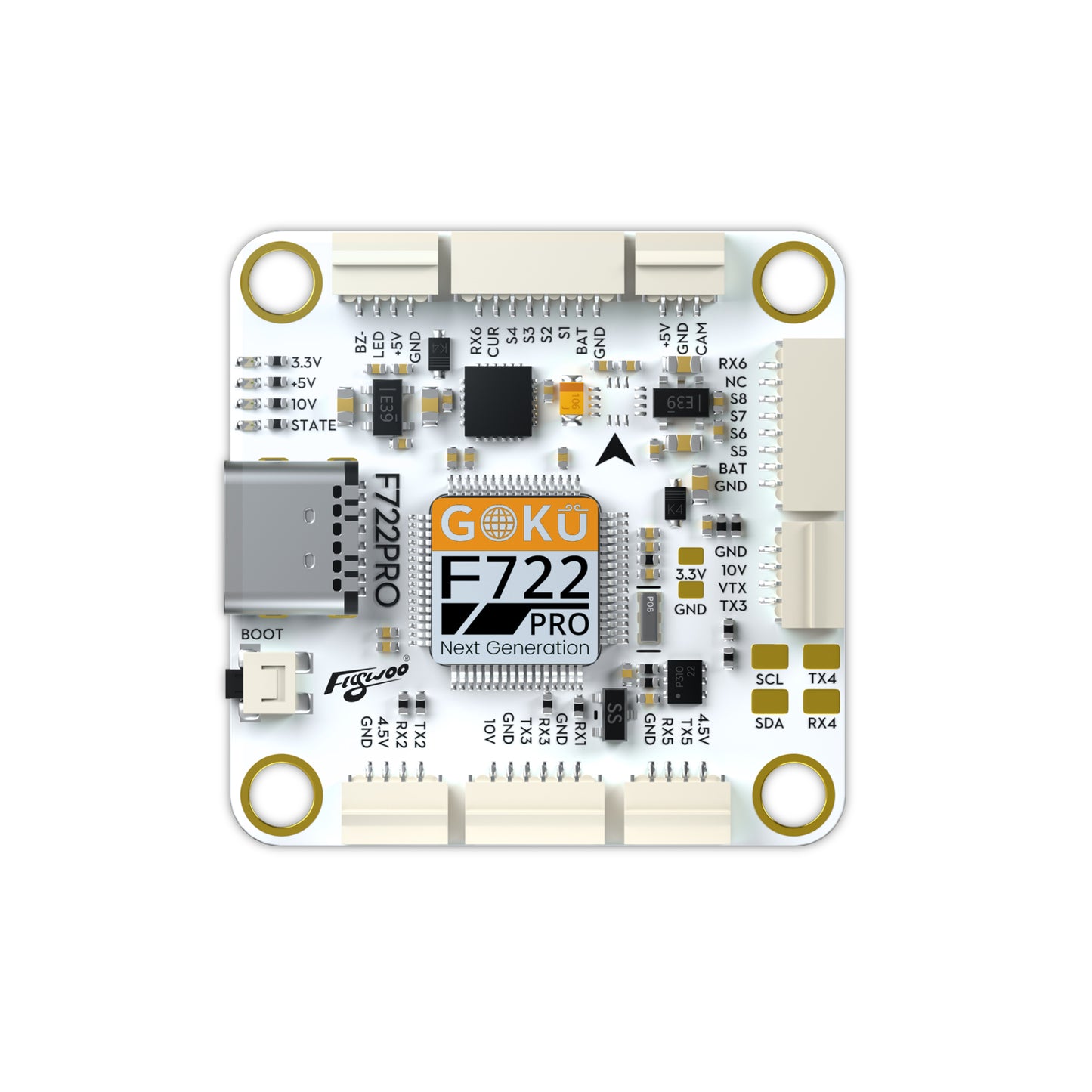

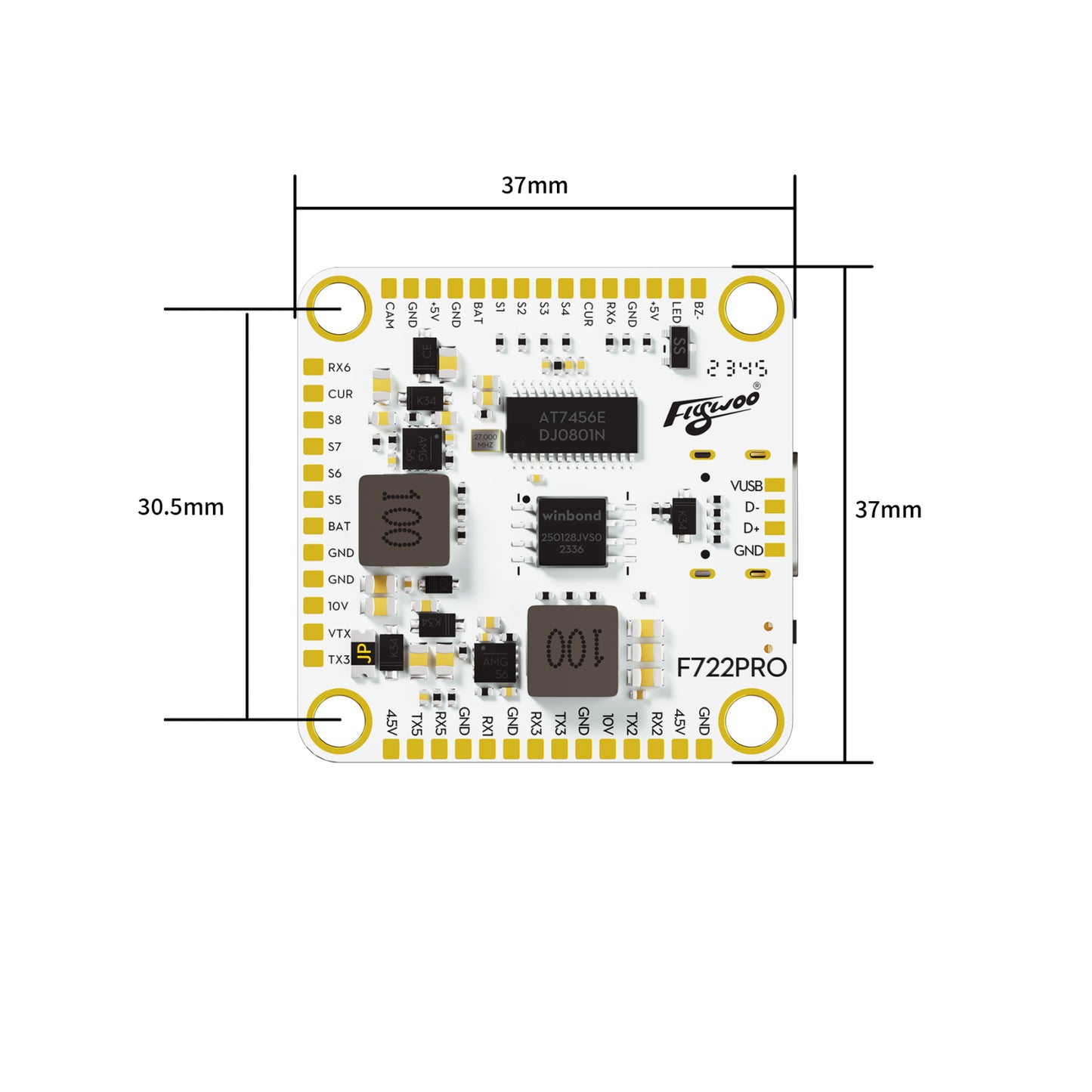

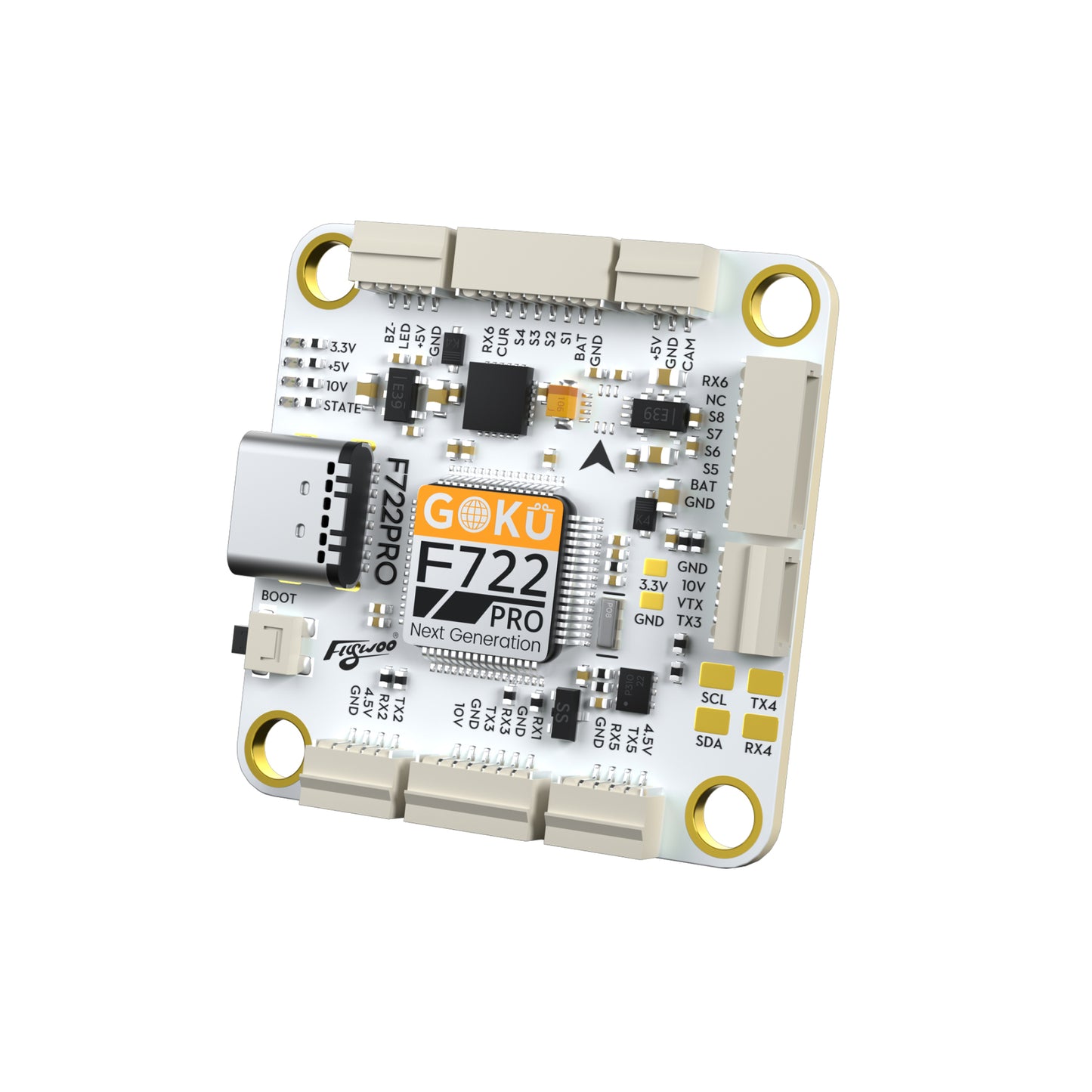

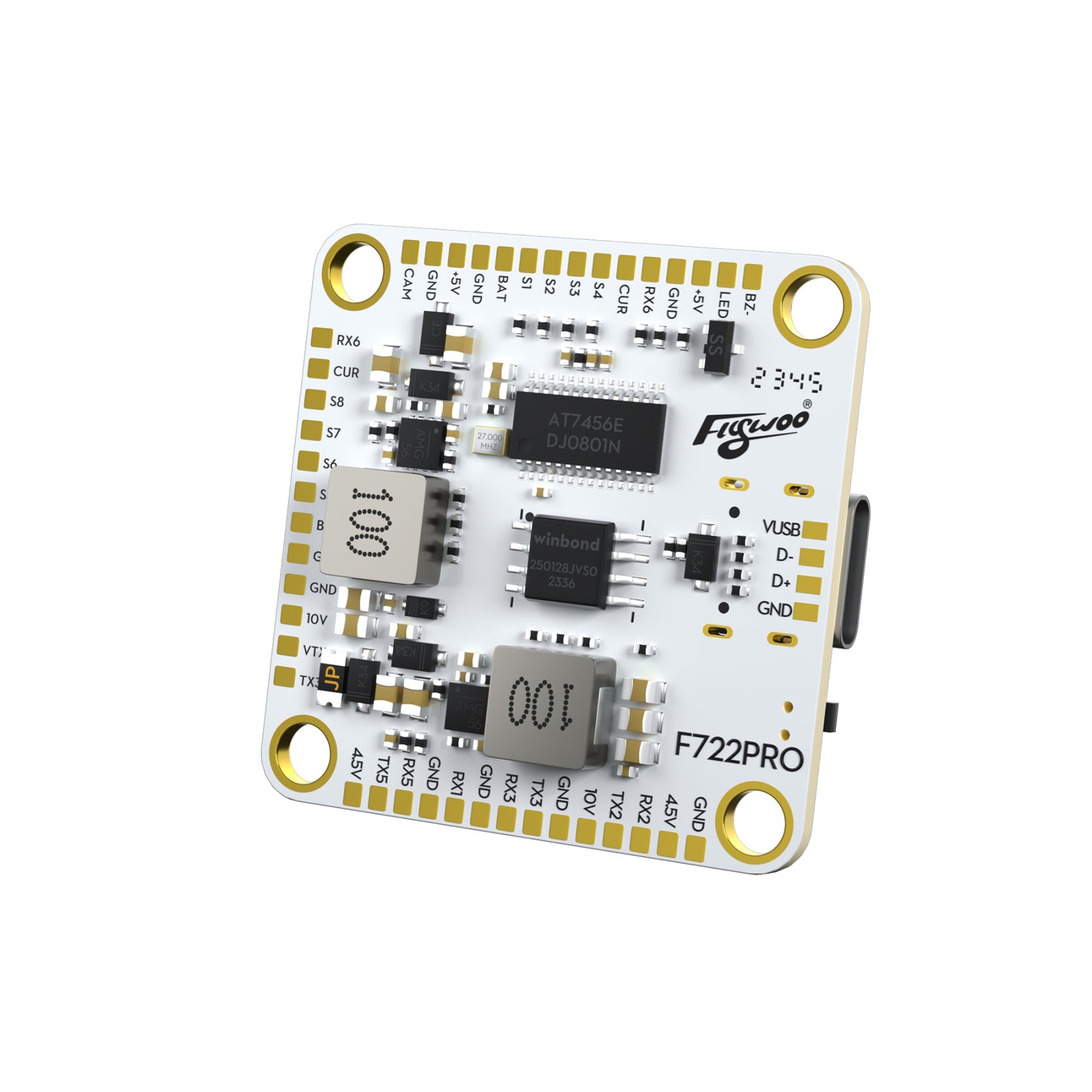

Flywoo GOKU F7 PRO V2 (30x30) (ICM42688) Flight Controller The Flywoo GOKU F7 PRO V2 brings flagship processing and connectivity to full-size FPV builds. Powered by the STM32 F722 MCU and a choice of ICM42688 or MPU6000 gyro, it delivers extremely responsive control for racing, freestyle, or cinematic footage. Eight motor outputs and two 4-in-1 ESC sockets support X8 or hex configurations, while each connector is available as either a female or a conventional solder pad—perfect for plug-and-play speed or custom wiring. Integrated 16 MB black box logging, two 10 V/5 V 3 A BECs, a barometer, and a dedicated DJI O3 Air Unit cable make this controller a powerful drop-in module for modern digital or analog drones. Specifications: MCU: STM32 F722 Gyro (selectable): ICM42688 / MPU6000 OSD: AT7456E Barometer: DPS310 / SPL06 Black Box Memory: 16 MB UART Ports: UART1-UART6 Motor Outputs: 8 (two 4-in-1 ESC sockets) Input Voltage: 7.4-26 V (2-6 S Li-Po) BEC Outputs: 10 V at 3 A / 5 V at 3 A Firmware Targets: Betaflight FLYWOO F722PRO / INAV FLYWOO F7 Dimensions: 37 × 37 × 8 mm Mounting Pattern: 30 × 30 mm (M3) Weight: 9.9 kg g Scope of delivery: 1 × Flywoo GOKU F7 PRO V2 (30x30) Flight Controller (ICM42688) 1 × FC and ESC Connection Cable 1 × Buzzer Connection Cable 1 × GPS Connection Cable 1 × DJI O3 Connection Cable 1 × Receiver Connection Cable 4 × M3 Shock Absorbing Balls 7 × M3 Rubber Rings 1 × Analog VTX Connection Cable 1 × Camera Connection Cable
