F411 4S 20A Brushless Flight Controller with Toothpick V5 BLHeli_S (BMI270)

F411 4S 20A Toothpick Brushless Flight Controller V5 uses BMI270 gyro instead of MPU6000 on V3 board. With two integrated plug&play ports for receiver and HD digital VTX, it is easy to install and requires less soldering. In addition, the board is a solid value for long-term use thanks to the high-quality PCB material and improved manufacturing process.

- The motor solder pads are reinforced with strong copper and edge plating technology, which allows lower resistance for higher current on the motors.
- F411 4S 20A FC V5 reserves the arrangement of UART ports, UART1 for RX, UART2 for DJI OSD or Analog VTX and UART6 for spare use, more convenient for pilots to solder.

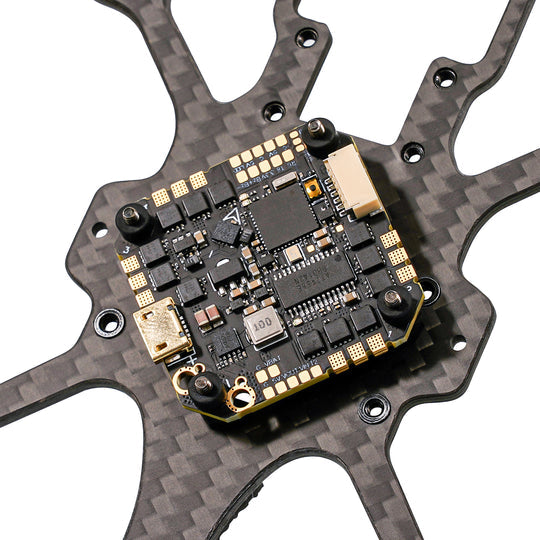

- Comes with a 25.5x25.5mm mounting pattern, this board can be added to both toothpick drone and film quadcopter frame like Pavo25 and X-knight 35.

Specifications:

Flight controller
CPU: STM32F411CEU6 (100MHz)
Six-Axis: BMI270 (SPI connection)
Mounting dimension: 25.5 x 25.5 mm (M2 Anti-vibration rubber damper available)
FC firmware: betaflight_4.3.x_BETAFPVF411
OSD: Built-in Betaflight OSD (OSD chip: AT7456E)
Receiver: SBUS/CRSF/DSMX receiver
BEC: 5V 3A
Built-in current sensor
Weight: 8.15g

ESC chip: SILABS EFM8BB21F16G-C
Support D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 25A
Firmware: G_H_20_REV16_7.HEX (default BLHeli_S), BLUEJAY (optional)
