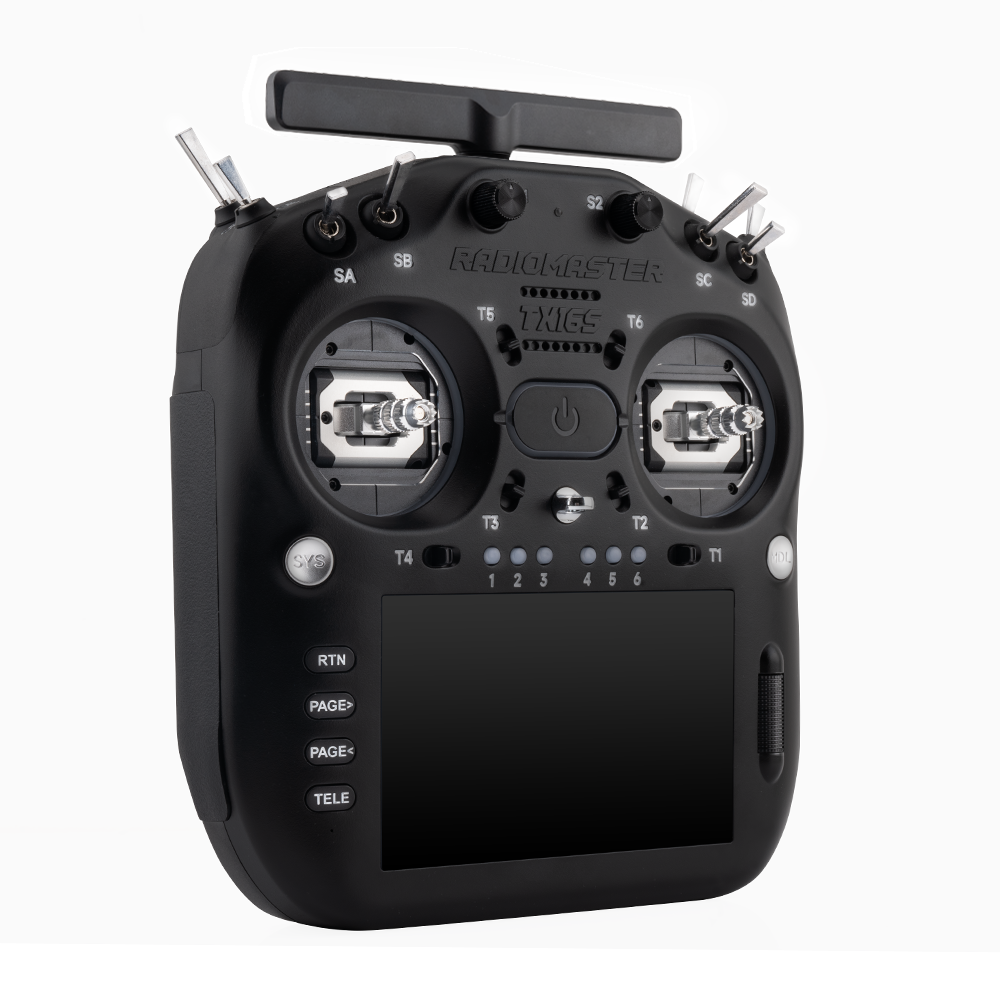

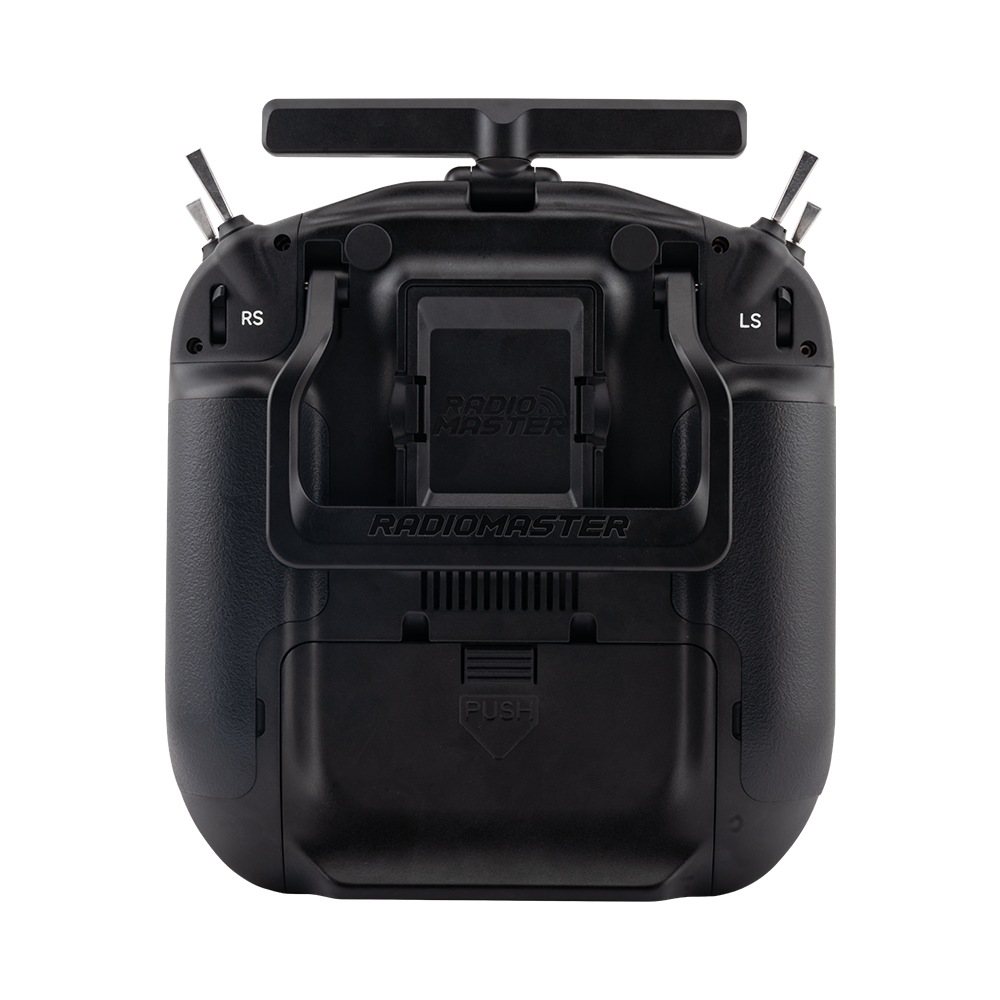

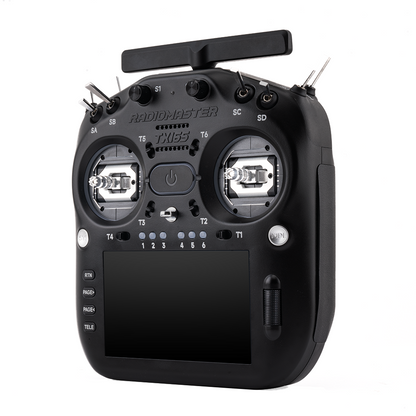

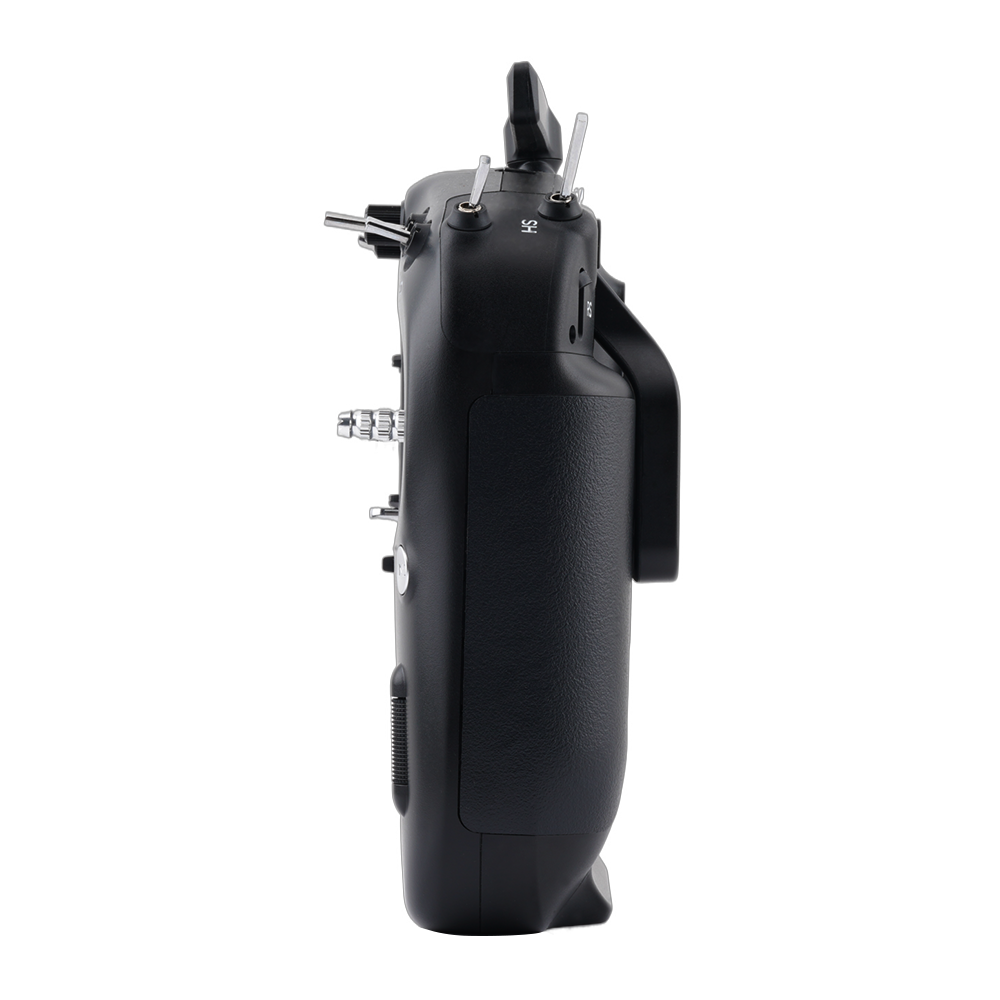

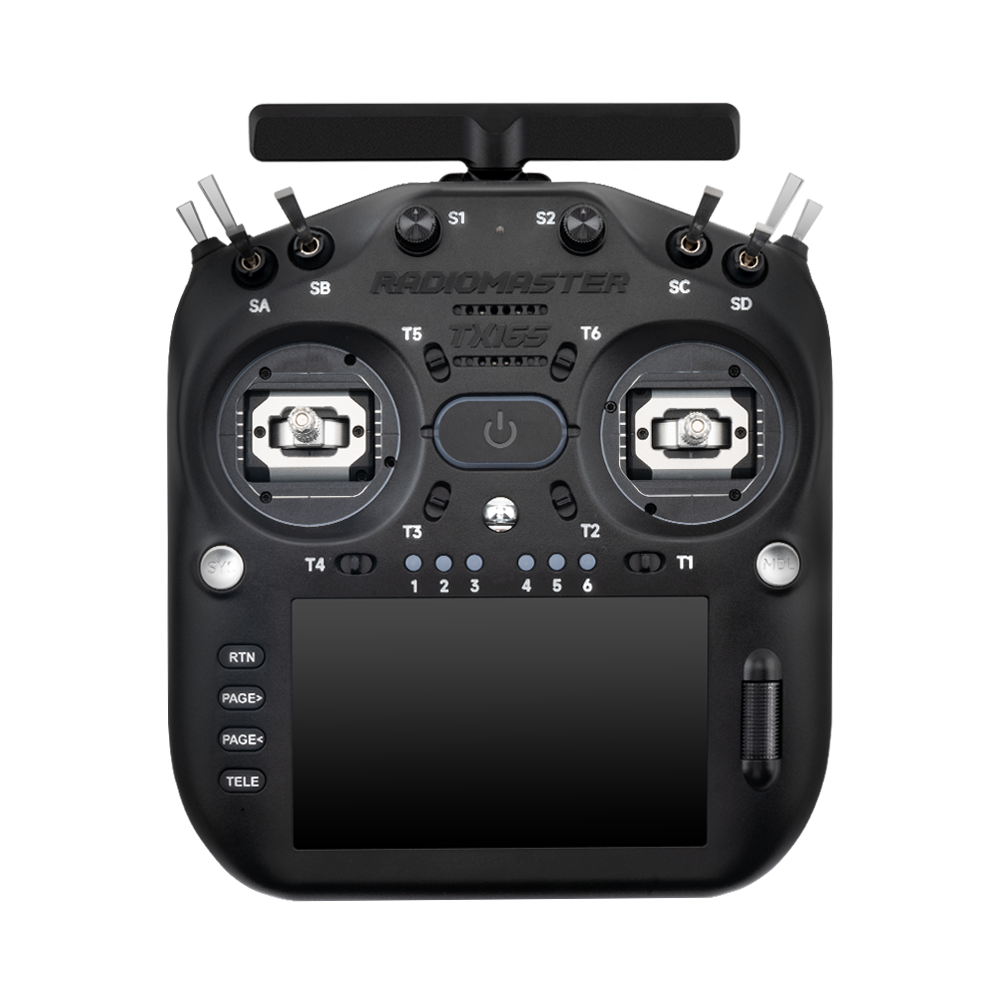

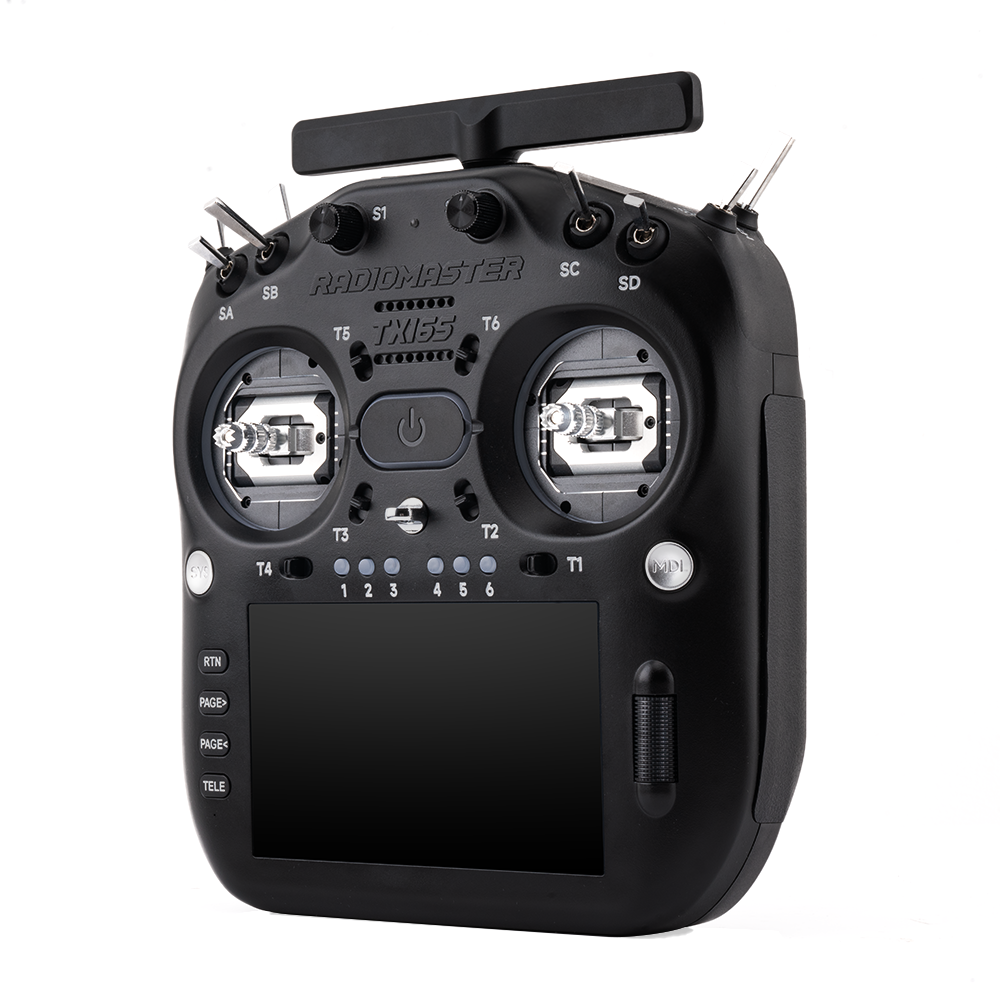

RadioMaster TX16S MK3 Black Controller The RadioMaster TX16S MK3 Black controller is a powerful and versatile transmitter designed for professional FPV pilots who demand precision, reliability, and flexibility. It features a high-performance STM32 H7 microcontroller and EdgeTX firmware, and has a dual-band ExpressLRS RF module that supports both 2.4 GHz and Sub-G 868/915 MHz for long-range control with low latency. The large 5-inch IPS touchscreen provides a clear display and intuitive navigation, while gimbals with V6 Hall sensors ensure ultra-smooth and precise stick response. With support for up to 16 channels, multiple battery options, JR-compatible module position expansion, and advanced cooling, the TX16S MK3 is designed for longer sessions and demanding flight conditions. Its robust construction, customizable controls, and modern features make it the ideal centerpiece of any high-end RC setup.

Features: - High-performance MCU: powered by STM32 H7 chip for maximum computing power - Touchscreen: 5-inch IPS touchscreen with 800 x 480 resolution for vivid colors and sharp details

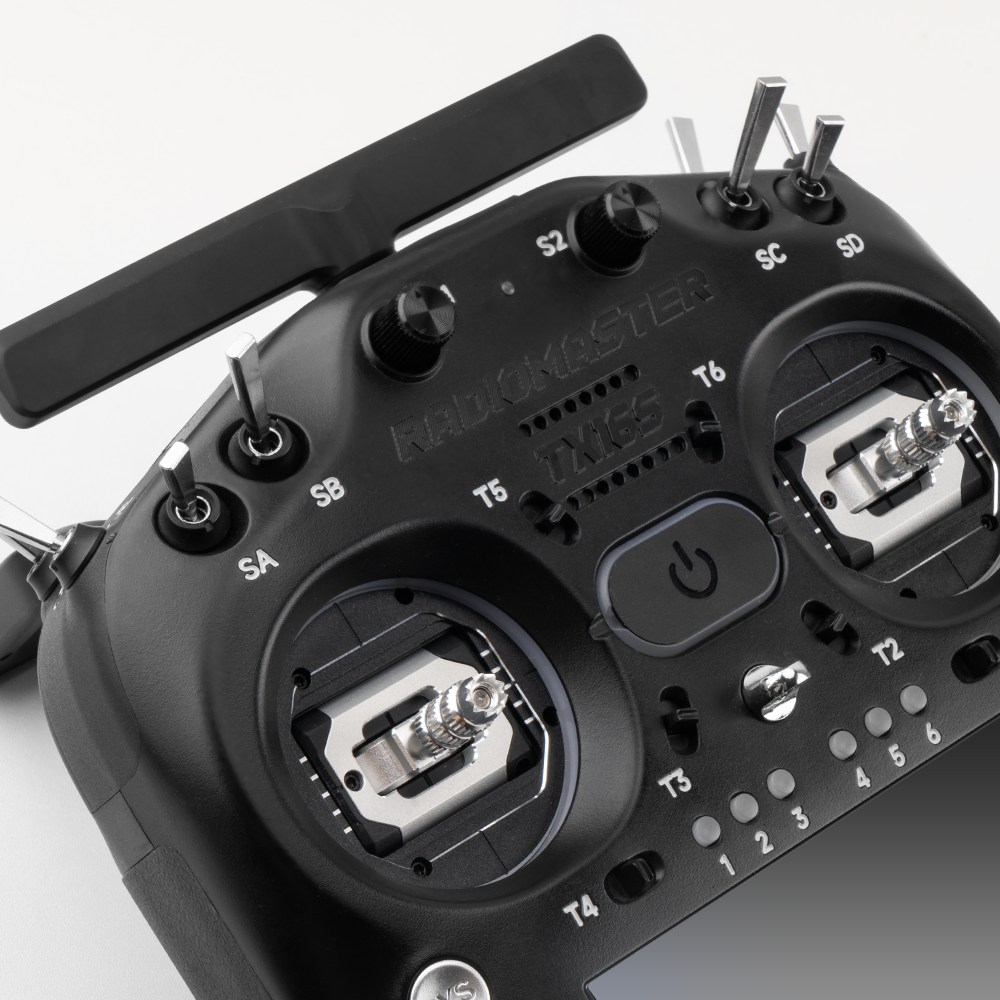

- Precise gimbals: four-bearing gimbals with V6 Hall sensor (compatible with AG02/AG01 CNC aluminum)
- Programmable RGB hinge light rings: LUA-controlled, customizable LED hinge lighting - Internal RF module: Dual-band Gemini 2.4 GHz and Sub-G 868/915 MHz
- Intelligent battery balancing circuit: Maximizes battery efficiency and life for better endurance - Powerful cooling system: Low-noise, high-performance fans and aluminum heat sink keep your radio cool even on the hottest days - Digital audio: Higher sound quality and reduced interference
- Two folding antennas: Compact and easy to store without reducing signal strength - Built-in microphone: For future feature expansion - Automatic backlight adjustment: Makes the screen easier to read indoors and outdoors

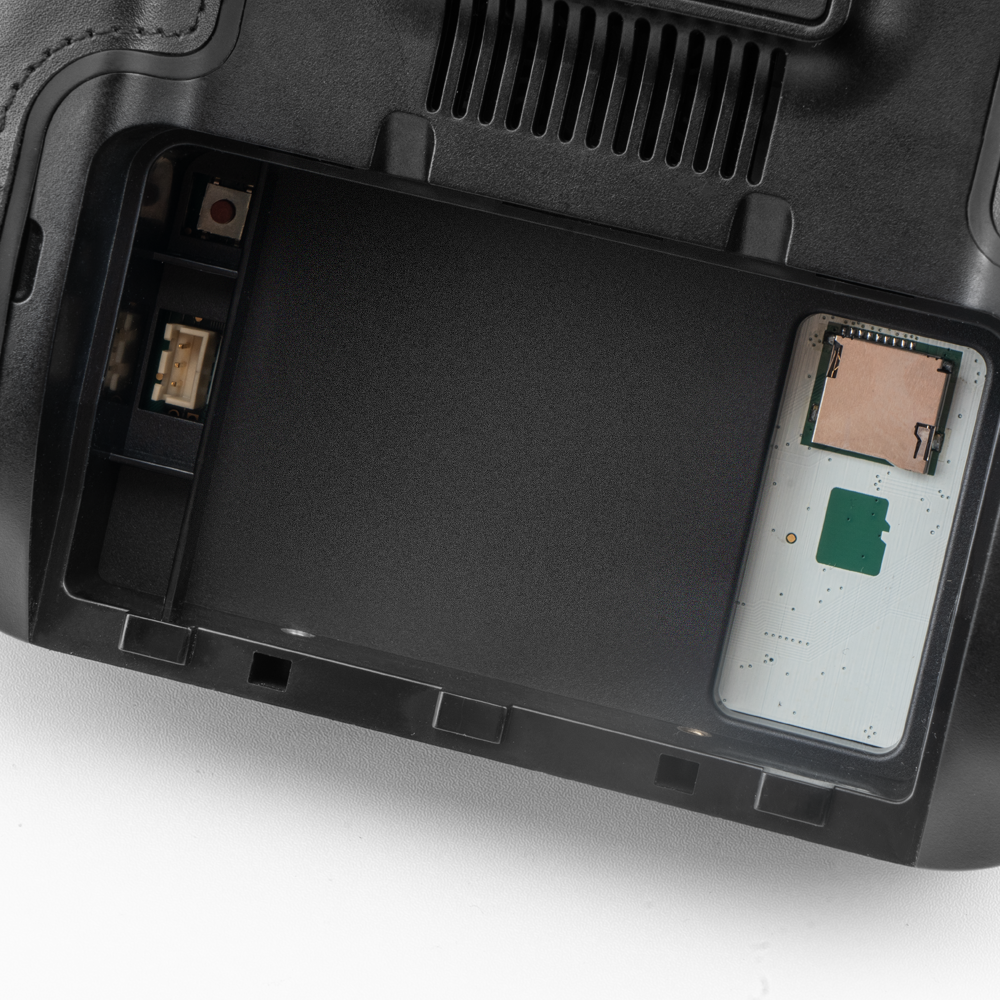

- Built-in motion sensor: Trigger switches, pan/tilt cameras, or trigger telemetry prompts simply by tilting the radio - Memory: Integrated 4GB flash memory and support for external MicroSD cards
- Removable shoulder switch panels: Customize your setup with modular switch panels Specifications: Color: Black Voltage range: 6.6–8.4 V DC Operating current: 1.10 A (at maximum RF output power)
Radio firmware: EdgeTX (requires 3.0.0 or higher) Built-in RF module: ExpressLRS 2 x LR1121 Frequency: ISM 2.4 GHz and Sub-G 868/915 MHz
Number of channels: up to 16 channels Gimbal: V6 Hall sensor gimbals (standard) MicroSD card slot: yes (card not included) Internal storage: integrated 4GB flash memory Display: 5-inch IPS touchscreen (800x480 resolution)
Battery: Two 3.7V 18650 lithium-ion cells / 21700 Li-ion 5000mAh battery / 2S 7.4V 6200mAh Lipo (batteries not included)

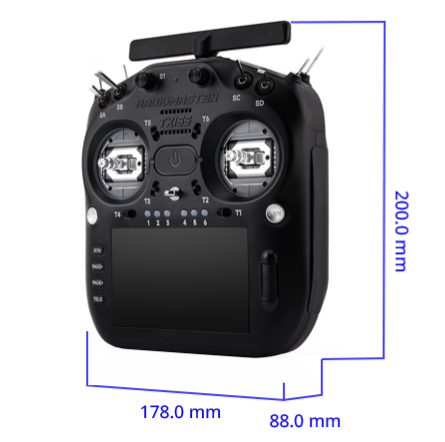

Update method: USB / EdgeTX Companion PC software Module slot: JR-compatible module slot for additional modules Dimensions: 200 x 178 x 88 mm Weight: 813 g (without battery) Note: Battery and MicroSD card are not included and must be purchased separately.

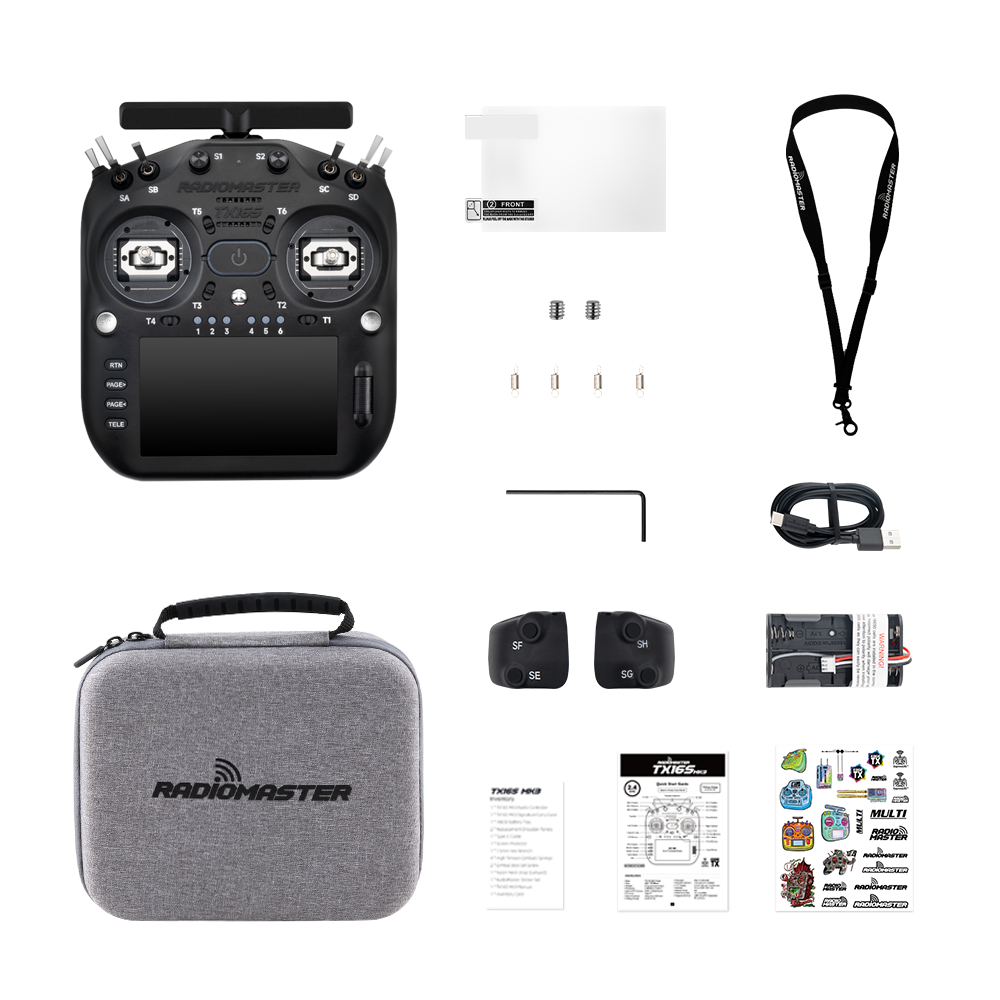

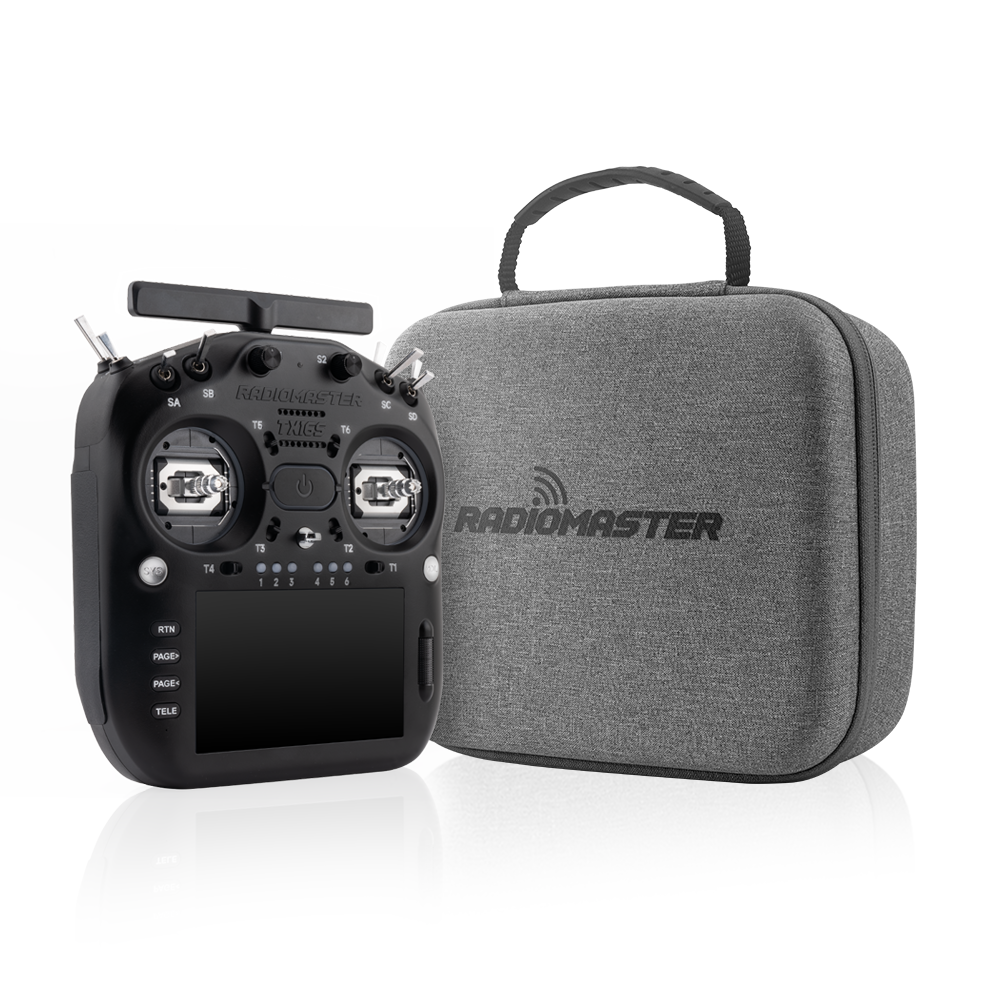

Package includes: 1x TX16S MK3 radio controller 1x TX16S MK3 Signature carrying case 1x 18650 battery tray 2x replacement shoulder panels 1x Type-C cable 1x display protector
1x 1.5mm hex key 4x low-tension gimbal springs 2x gimbal screws 1x nylon neck strap (cord) 1x set of RadioMaster stickers 1x TX16S MK3 manual 1x inventory card
