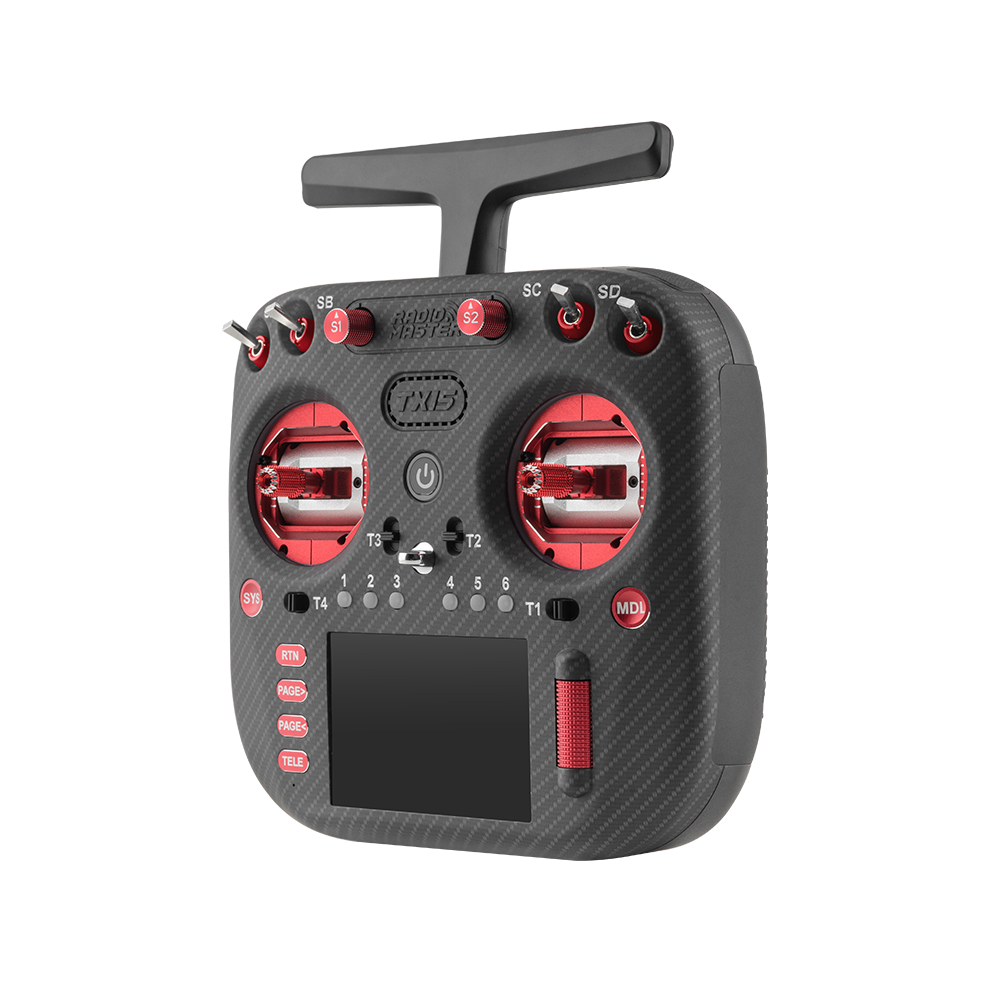

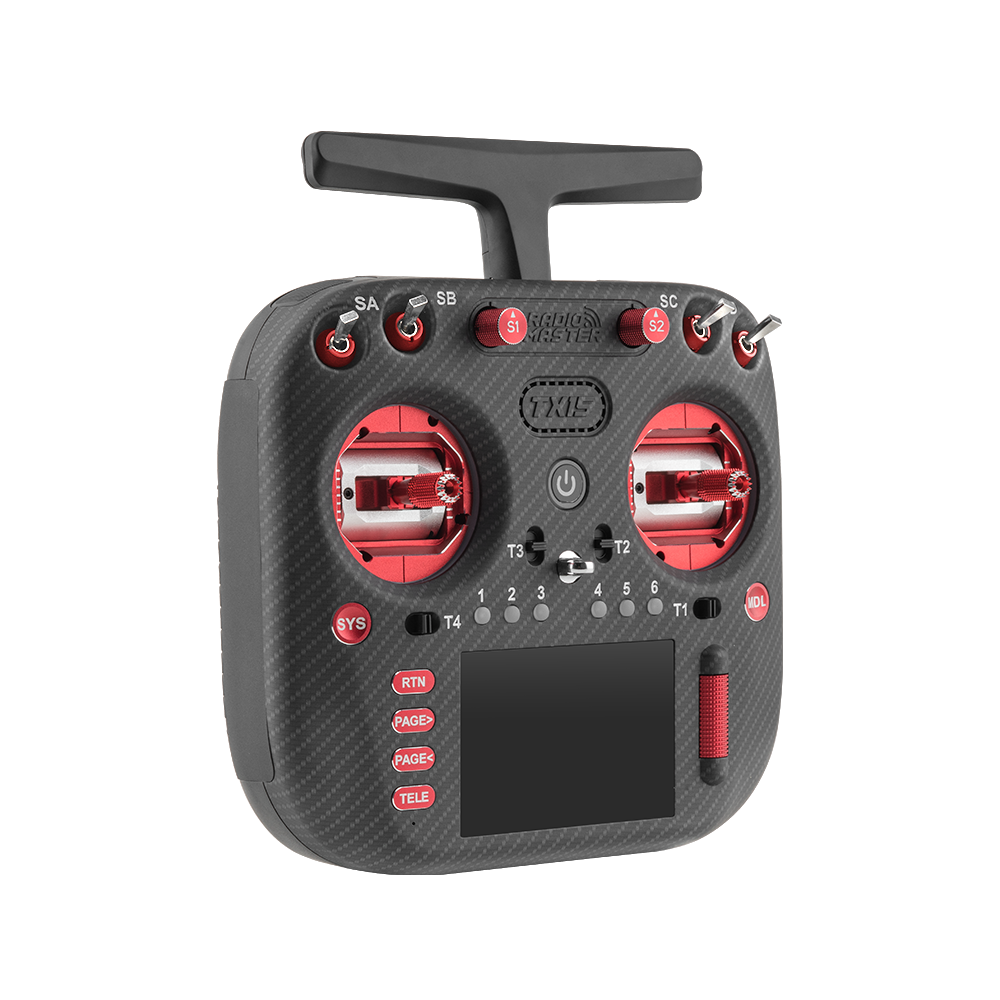

RadioMaster TX15 Max ExpressLRS Black Controller The RadioMaster TX15 MAX ExpressLRS Black is a powerful and compact radio controller designed for pilots who demand top performance in a portable design. Powered by a high-speed STM32 H7 processor, it provides ultra-smooth EdgeTX operation, fast model switching, and fast script execution. The built-in dual ExpressLRS system (2.4 GHz and 868/915 MHz) ensures low-latency control and high connection reliability even in challenging RF environments.

With a bright 3.5-inch IPS touchscreen display, premium CNC aluminum AG02 gimbals, customizable RGB lighting, and a refined gold finish, the TX15 MAX offers professional control and a premium feel. With intelligent power management, expandable storage, and advanced features such as a built-in gyroscope, it is an excellent choice for FPV pilots and RC enthusiasts who want uncompromising performance. Features:
- Lightning-fast performance: The STM32 H7 chip powers our fastest transmitter ever. - Touchscreen display: 3.5-inch IPS touchscreen with 480x320 resolution, vivid colors, and sharp details. - Precise gimbals: Premium AG02 gimbals for greater smoothness.
- Built-in ExpressLRS: ExpressLRS 2.4 GHz / 868/915 MHz integration for reliable long-range control.
- Intelligent battery balancing circuit: maximizes battery efficiency and life for longer flight times. - Powerful cooling system: low-noise, high-performance fans and aluminum heat sink keep the radio cool even on the hottest days.

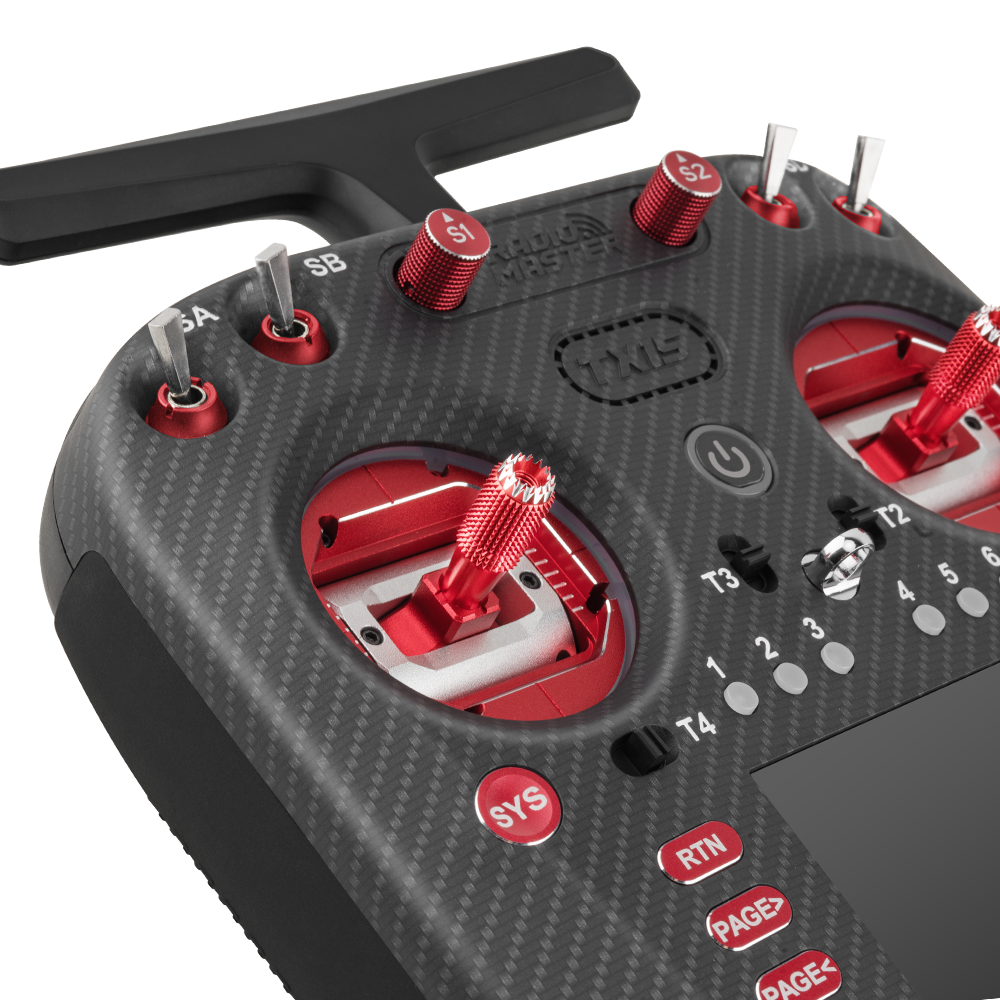

- AG02 gimbal: Over 20% weight reduction, with adjustable movement on both vertical and horizontal axes. - Customizable RGB gimbal light ring: Integrated RGB LED lights around the gimbals allow for customizable LUA-controlled lighting.
- Foldable antenna: Compact and easy to store without reducing signal strength. - Built-in microphone: For future feature expansion. - Built-in gyroscope: Trigger switches, rotate/tilt cameras, or telemetry prompts by simply tilting the radio.
- Memory: Integrated 4GB flash memory and external MicroSD card support. - Interchangeable shoulder switches: Customize the controls to suit your flying style. Specifications: Item: TX15 Max Radio Controller Dimensions: 178x168x81mm
Weight: 672 g (without battery) Frequency: 2.400 GHz OR Sub-G 868/915 MHz Internal RF: ELRS 2.4 GHz / Sub-G 68/915 MHz Supported protocols: Express-LRS Cooling fan: Yes
Transmitter module: Built-in ELRS Built-in flash memory size: 4 GB Built-in microphone: Yes (future expansion) Built-in gyroscope: Yes (ICM-42607-C) MicroSD card* (not included): 32 GB/FAT32 (inserting a MicroSD card deactivates the built-in flash memory) Antenna gain: 2 dB (adjustable transmit power) Current: 875 mA at maximum output power Voltage range: 6.6–8.4 V DC Radio firmware: EdgeTX (transmitter)
Module firmware: ExpressLRS Channels: max. 16 channels (depending on receiver) Display: 3.5-inch IPS touchscreen (480 x 320 resolution)

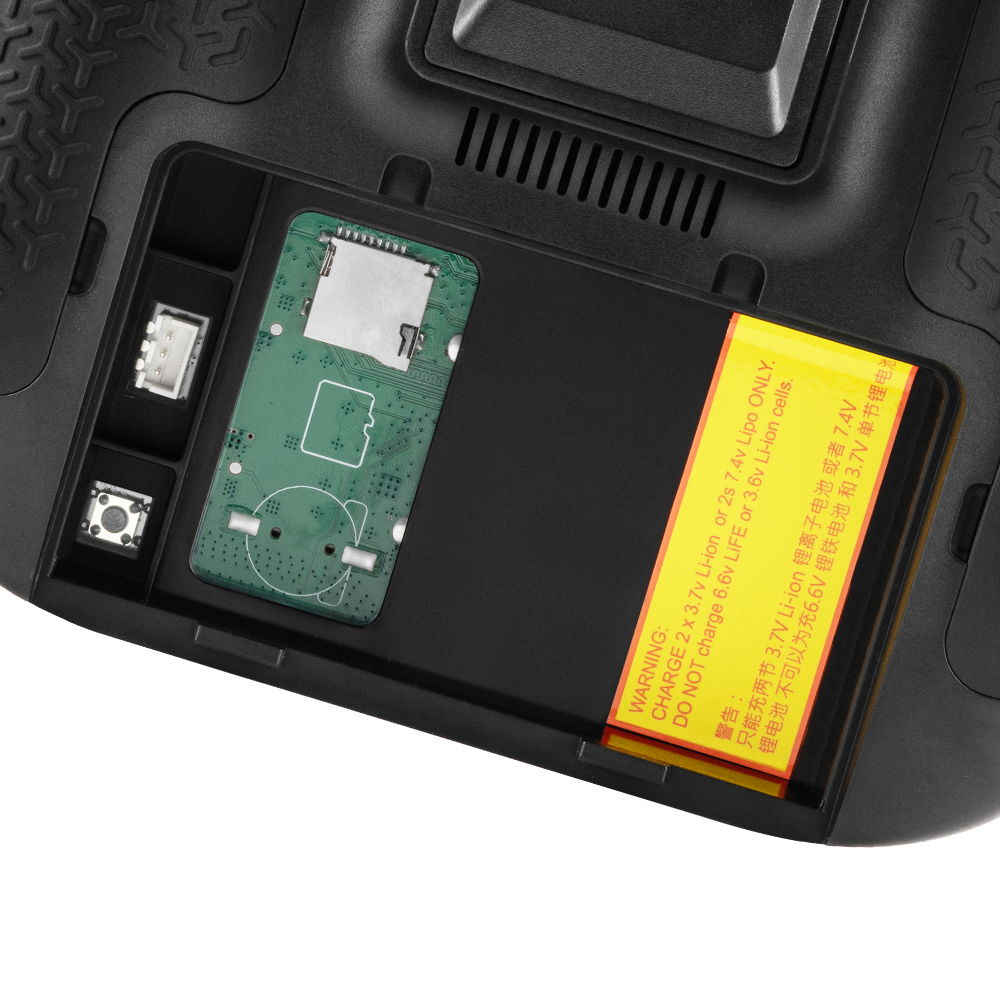

Battery: 7.4 V 2-cell lithium-polymer / two 3.7 V 18650 lithium-ion cells / 21700 5000 mAh battery (batteries not included) Connection: USB-C Gimbals: AG02 CNC Hall sensor gimbals
Gimbal levers: M4 Update method: USB-C (UF2) Module position: JR-compatible module position for additional modules Color: Black

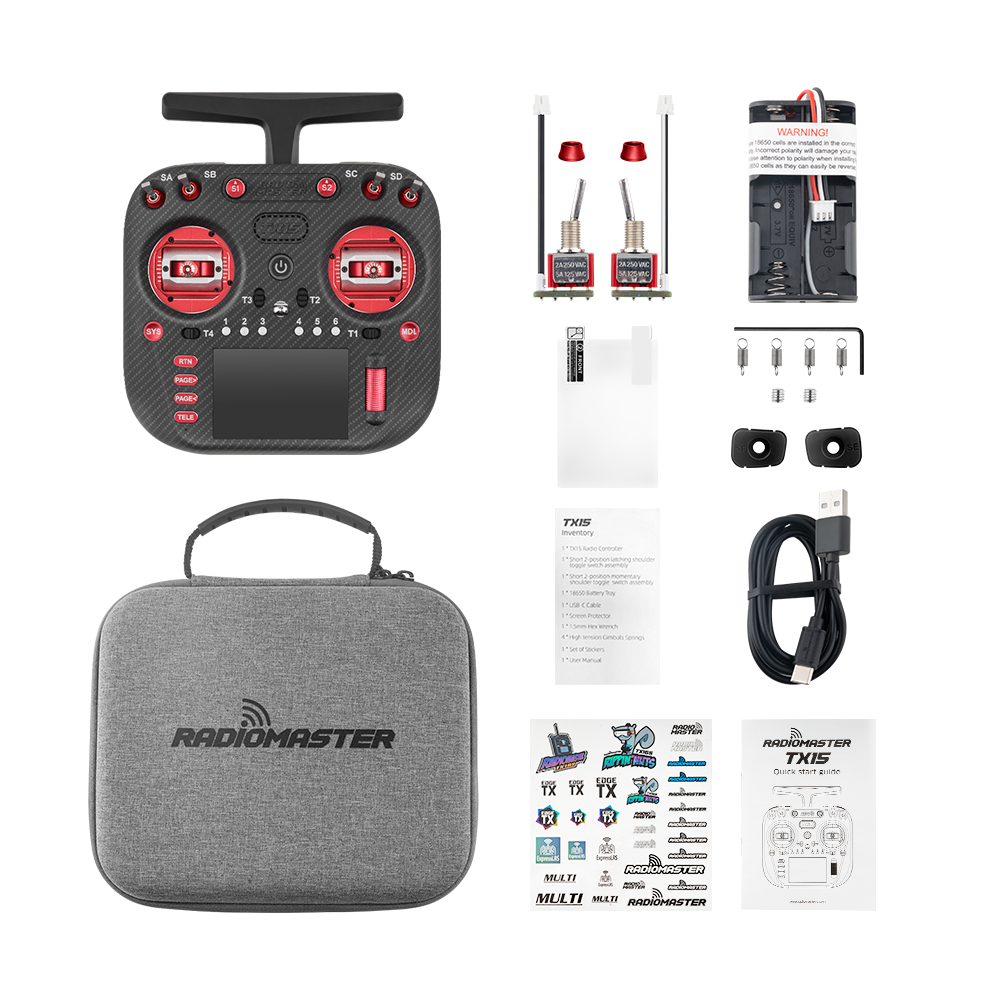

Note: Batteries and MicroSD card are not included and must be purchased separately. Package includes:

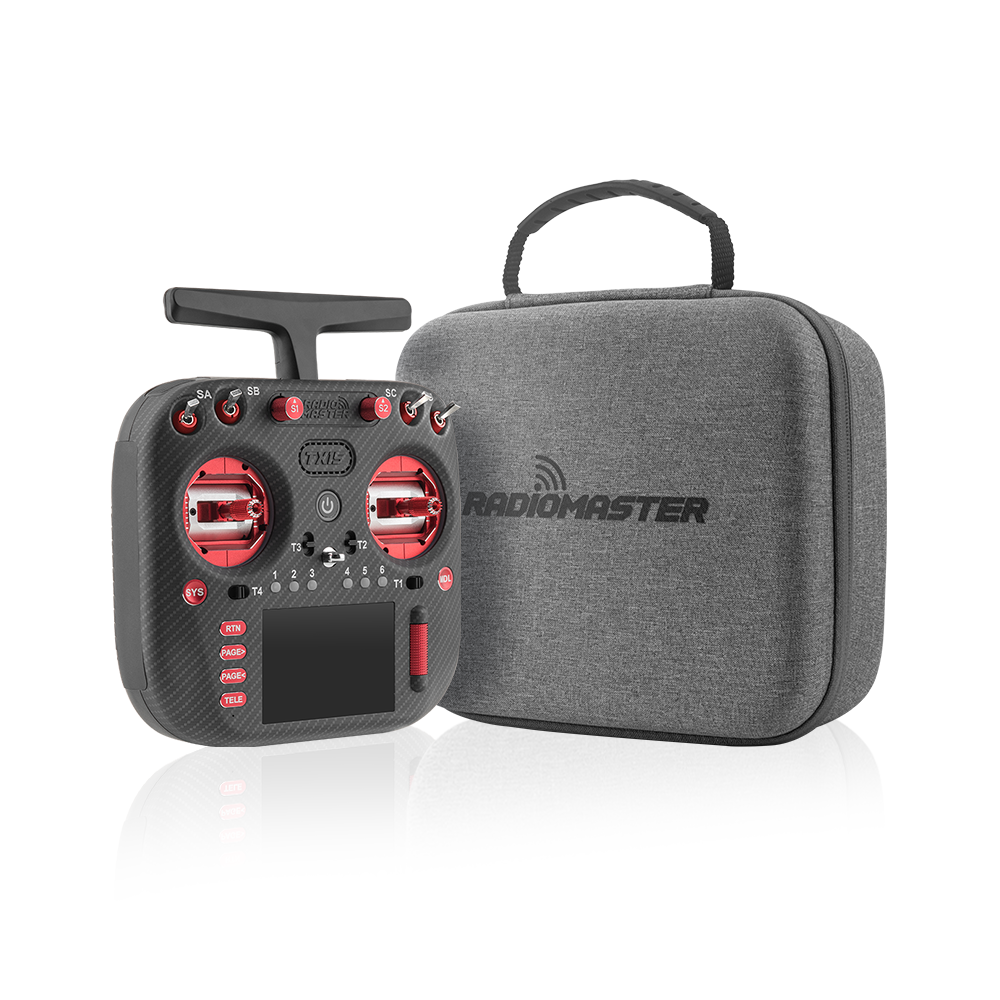

1x TX15 Max radio controller 1x signature carrying case 1x short 2-position shoulder switch with lock 1x short 2-position shoulder switch with momentary switch 1x 18650 battery tray
1x USB-C cable 1x display protector 1x 1.5mm hex key 4x high-tension gimbal springs 2x gimbal lever screws 1x sticker set 1x user manual 1x inventory card
