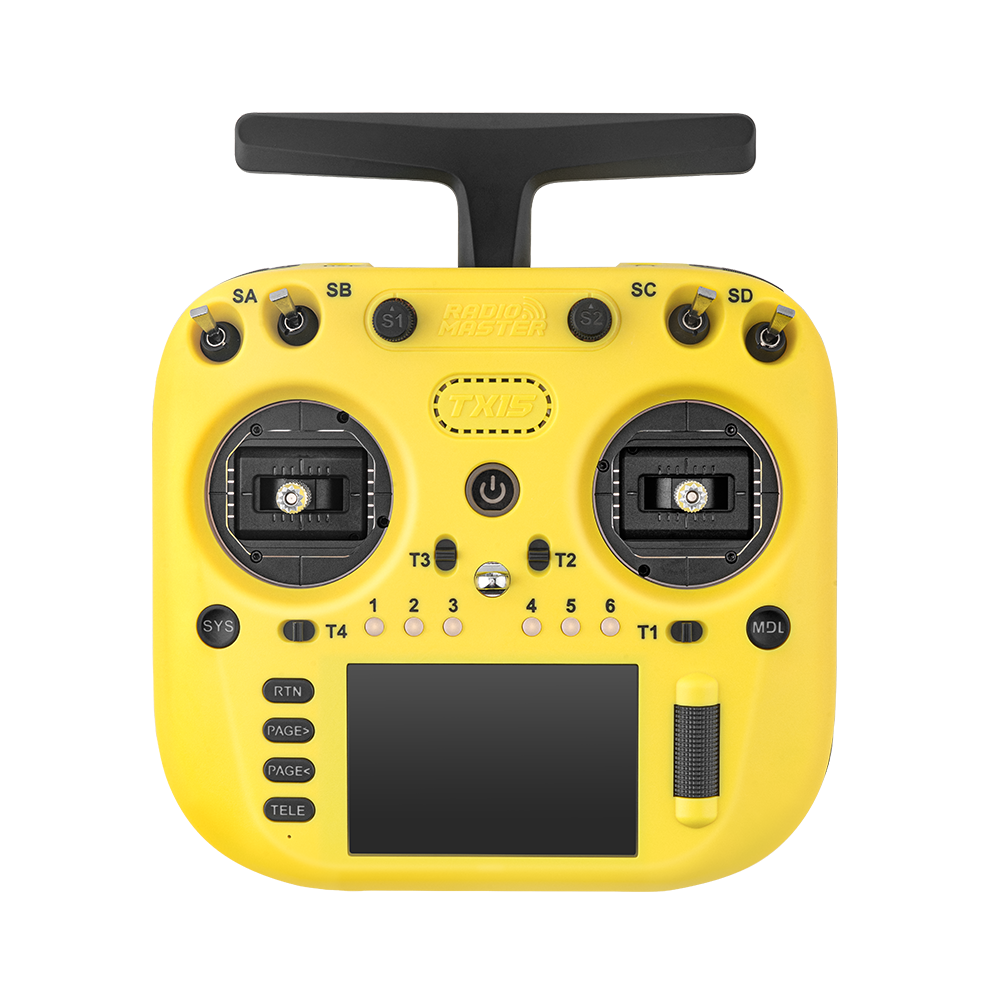

Controller RadioMaster TX15 ExpressLRS Yellow

1 8

Code: SKU:HP0157.0110-YEL-LBT

Controller RadioMaster TX15 ExpressLRS Yellow

Name: Controller RadioMaster TX15 ExpressLRS Yellow
Brand: Baltic Drones
SKU: HP0157.0110-YEL-LBT
Price: 184.79 EUR
Availability: InStock

Controller RadioMaster TX15 ExpressLRS Yellow

Brand: RadioMaster

€184,79

-% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

RadioMaster TX15 ExpressLRS Yellow Controller RadioMaster TX15 ExpressLRS is a versatile and compact radio controller designed for modern FPV and RC pilots who demand reliability and flexibility. Thanks to the powerful ExpressLRS protocol, it ensures ultra-low latency and reliable performance over long distances. The TX15 has an ergonomic design, a bright color display, smooth gimbals, and a customizable interface, making it comfortable and intuitive even during long periods of use. With support for multiple model profiles, open-source firmware, and compatibility with external modules, it is future-proof and adapts to your flying style. It is ideal for beginners and professional pilots who want high-performance radio communication in a sleek and portable design. Features:
- Lightning-fast performance: The STM32 H7 chip powers our fastest radio ever. - Touchscreen: 3.5-inch IPS touchscreen with 480 x 320 resolution, vivid colors, and sharp details.

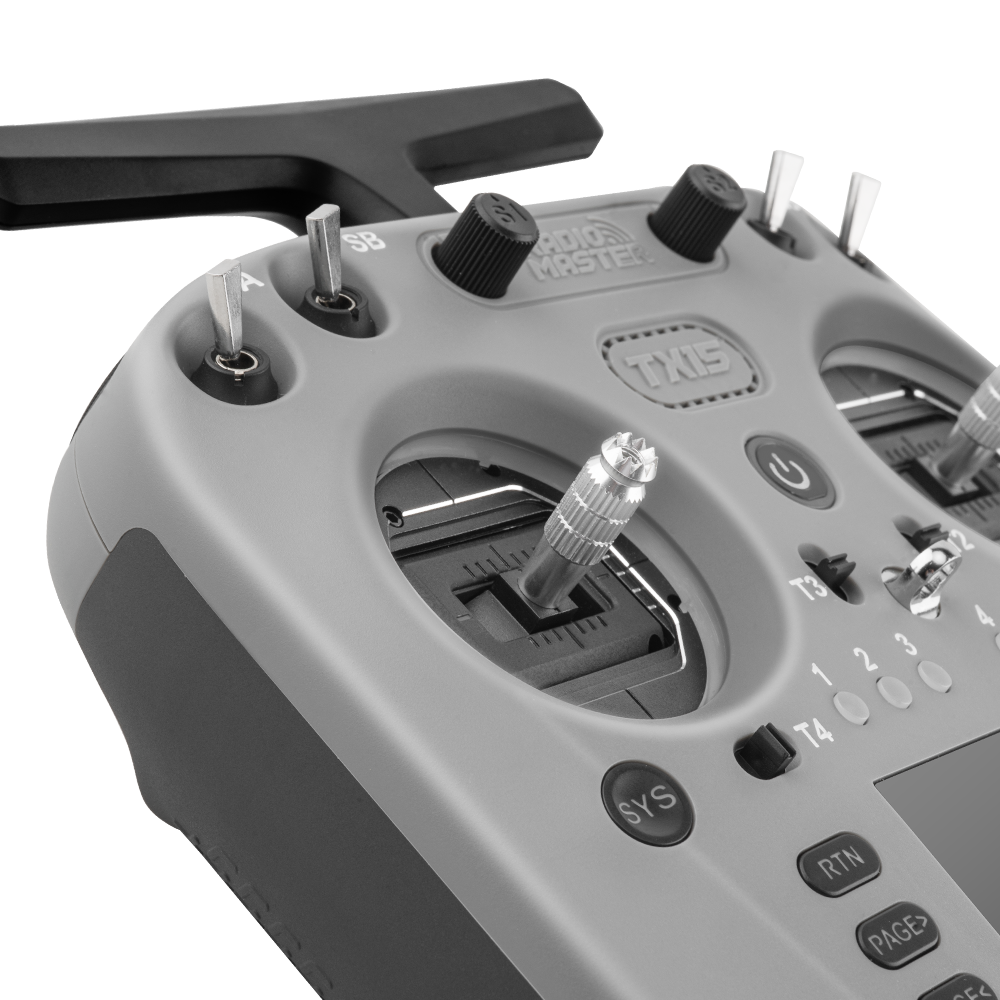

- Precise hinges: V5.0 Hall sensor hinges - Integrated ExpressLRS: 2.4 GHz / Sub-G 868/915 MHz ExpressLRS integration for reliable long-range control. - Intelligent battery balancing circuit: Maximizes battery efficiency and life for longer flight times.
- Powerful and efficient cooling system: Low-noise, high-performance fans and an aluminum heat sink keep the radio cool even on the hottest days. - Foldable antenna: Compact and easy to store without compromising signal strength.
- Built-in microphone: For future feature expansion. - Built-in gyroscope: Activate switches, rotate/tilt cameras, or call up telemetry data simply by tilting the radio. Memory: Integrated 4GB flash memory and support for external MicroSD cards.
Interchangeable shoulder switches: Customize the controls to suit your flying style. Specifications:
Item: TX15 Radio Controller Dimensions: 178 x 168 x 81 mm Weight: 605 g (without battery) Frequency: 2.400 GHz OR Sub-G 868/915 MHz Internal RF: ELRS 2.4 GHz / Sub-G 868/915 MHz
Supported protocols: Express-LRS Cooling fan: Yes Transmitter module: Built-in ELRS Built-in flash memory size: 4 GB Built-in microphone: Yes (future expansion) Built-in gyroscope: Yes (ICM-42607-C)
MicroSD card (not included): 32 GB/FAT32 (inserting a MicroSD card disables the built-in flash memory) Antenna gain: 2 dB (adjustable transmit power) Current: 875 mA at maximum output power Voltage range: 6.6–8.4 V DC
Radio firmware: EdgeTX (transmitter) Module firmware: ExpressLRS Channels: max. 16 channels (depending on receiver) Display: 3.5-inch IPS touchscreen (480 x 320 resolution)

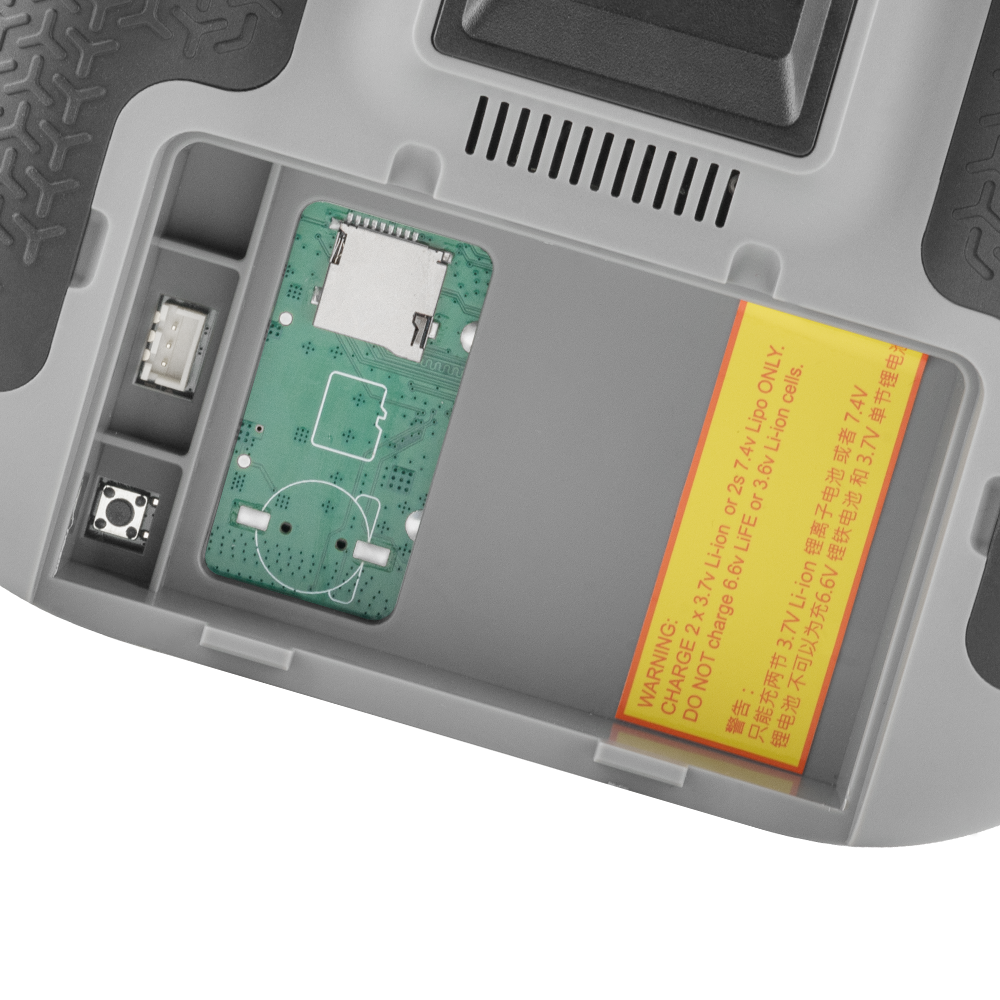

Battery: 7.4 V 2-cell lithium polymer / two 3.7 V 18650 lithium-ion cells / 21700 5000 mAh battery (batteries not included) Connection: USB-C
Gimbals: V5.0 Hall sensor gimbals (standard) Gimbal levers: M4 Update method: USB-C (UF2) Module position: JR-compatible module position for additional modules Color: yellow Package includes:

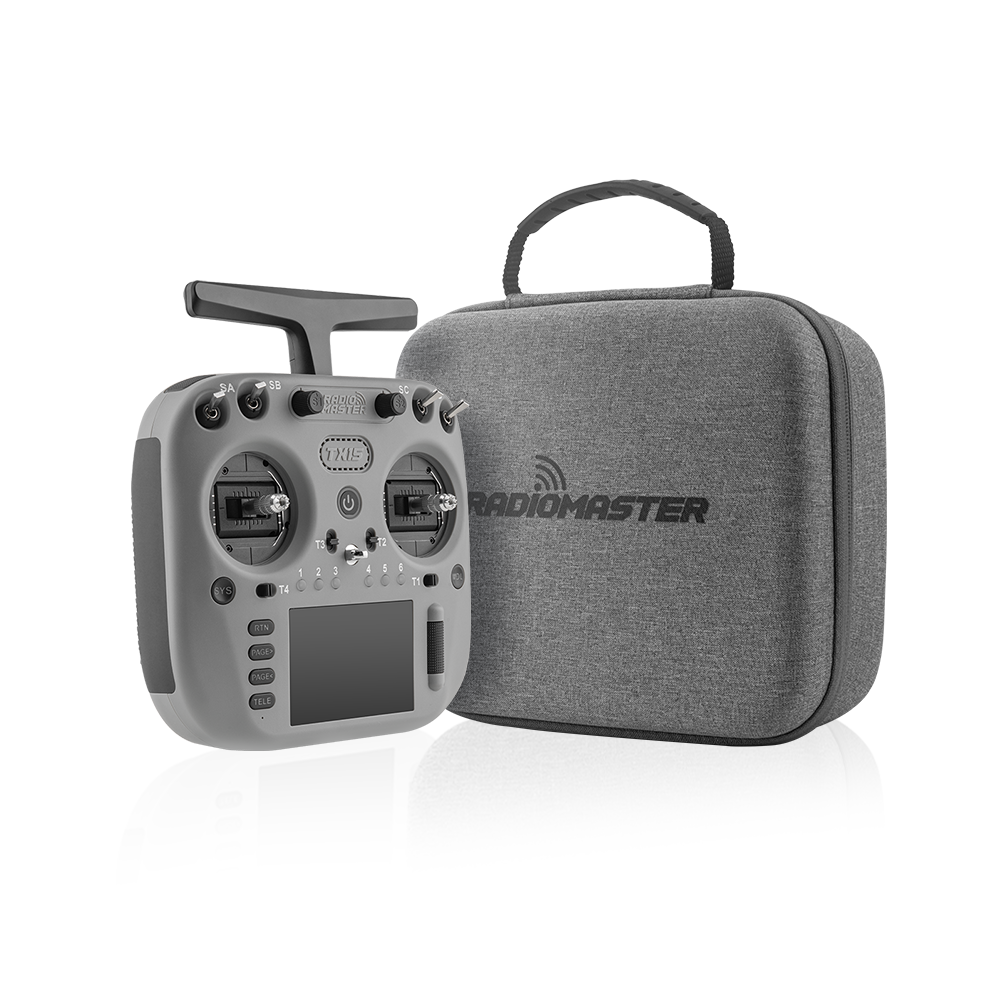

1x TX15 radio controller 1x original carrying case 1x short 2-position shoulder switch with lock 1x short 2-position shoulder switch with momentary switch 1x 18650 battery tray
1x USB-C cable 1x display protector 1x 1.5 mm hex key 4x high-tension gimbal springs 2x gimbal screws 1x sticker set 1x user manual 1x inventory card
