Connector FLYWOO XT30UP-F Red Pigtail 20awg Female(2 pcs)

Name: Connector FLYWOO XT30UP-F Red Pigtail 20awg Female(2 pcs)
Brand: Baltic Drones
SKU: FW19003776
Price: 3.33 EUR
Availability: InStock

Connector FLYWOO XT30UP-F Red Pigtail 20awg Female(2 pcs)

Brand: FLYWOO

€3,33

~~€3,56~~ €3,33

-6% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

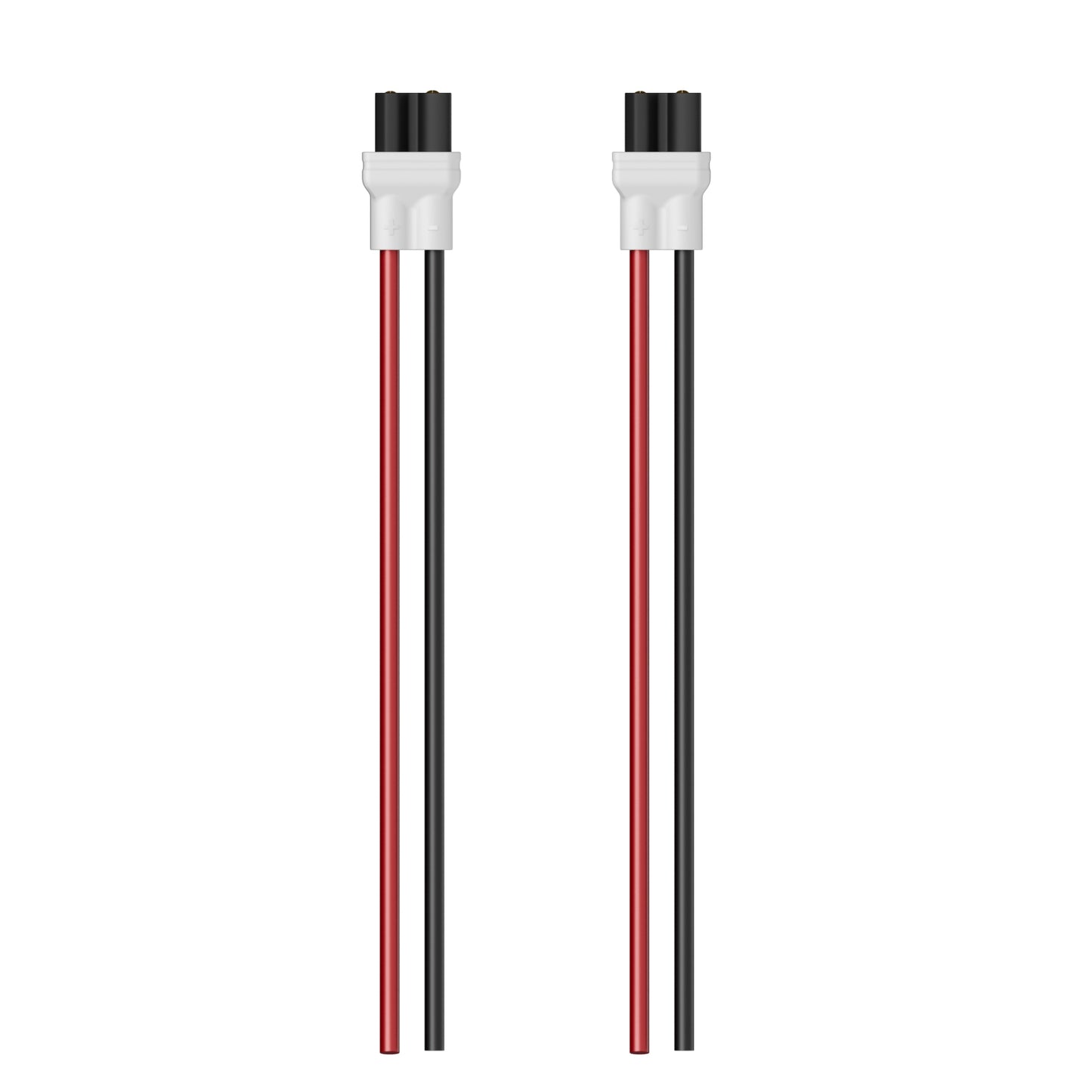

Connector FLYWOO XT30UP-F Red Pigtail 20AWG (2 pcs)

The FLYWOO XT30UP-F Red Pigtail Connector with 20AWG Silicone Wire is a lightweight and durable solution designed to eliminate common problems such as broken plugs and loose connections in FPV drones and RC models. Thanks to the original Amass XT30 case, it provides safe connection, comfortable handling and smooth movement when connecting and disconnecting. It is rated for 15 A of continuous current and up to 30 A of peak current, ensuring efficient power transfer in compact assemblies. Non-flammable PA insulation and low contact resistance (0.7 mΩ) ensure reliability and safe operation in a wide temperature range. Designed for up to 1000 connections.

Specifications:

Model: XT30UP-F
Wire gauge: 20AWG
Rated current: 15 A
Peak current: 30 A
Contact resistance: 0.7 mΩ
Breakdown resistance: 500 V DC
Operating temperature: -20 °C to 120 °C
Inflammability class: UL94-V0
Color: Red
Insulation material: PA (polyamide)
Recommended number of cycles: 1000+

The package contains:

2 × FLYWOO XT30UP-F pigtail connectors (20AWG)
