ISDT K2 Air Smart charger:
The ISDT K2 Air Smart charger is a compact and advanced charging solution designed for hobbyists and professionals using various types of batteries. Here is a comprehensive overview of its features and specifications:
Key Features

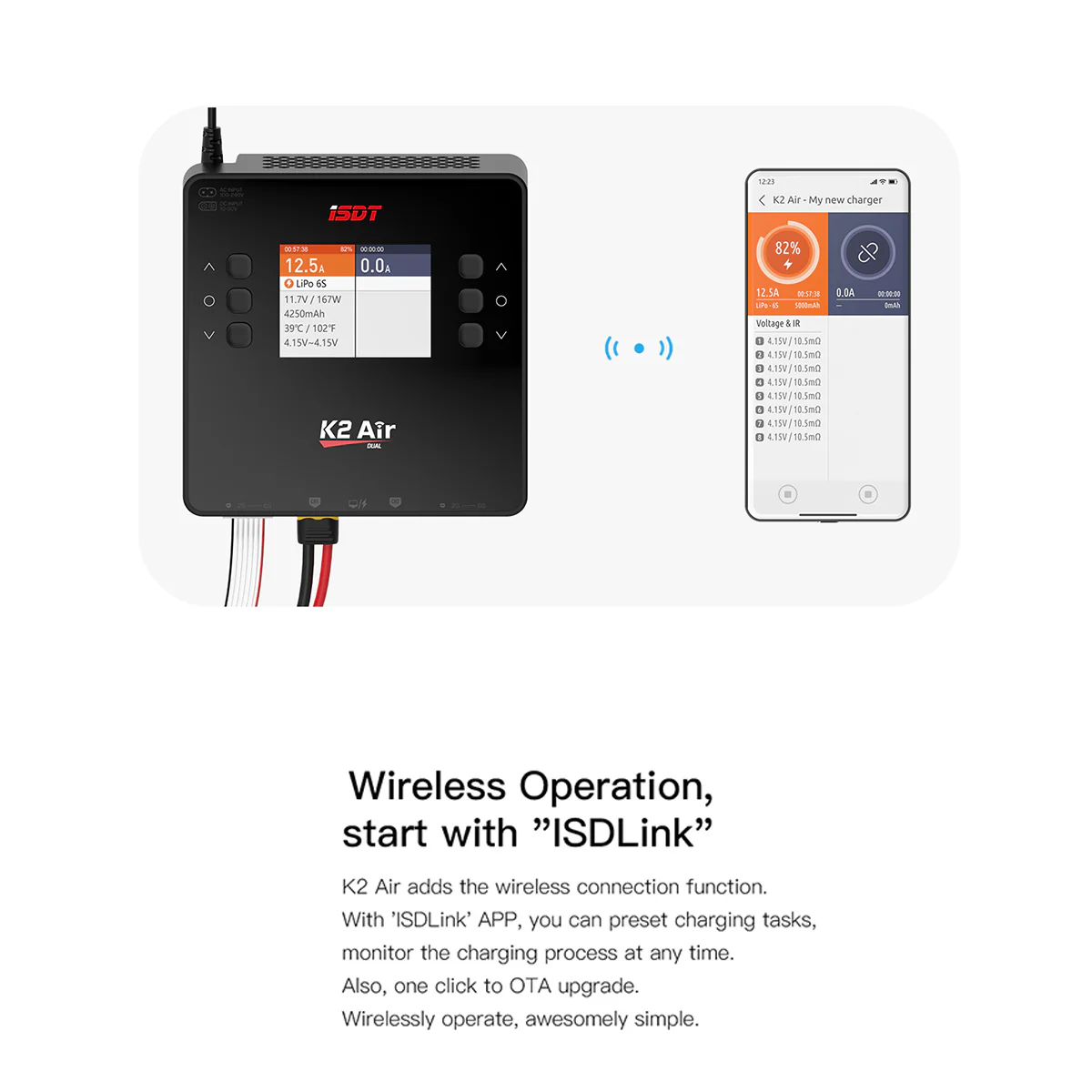

Bluetooth connection:
- Supports Bluetooth connection for remote control via ISD Link app, allowing users to conveniently adjust charging parameters from their smartphone.
Smart display:
- The color LCD display provides up-to-date information about the charging process, displaying voltage, current, charging time, mode, battery type, internal resistance and charged capacity.
- The large screen enhances the user experience with easy operation and manual settings.
Dual input modes:
- Offers AC (200W) and DC (500W) inputs with independent dual channels that support 20A charging currents per channel.
- The maximum input current is 40A, which ensures efficient charging.
Multifunctionality:
- Includes features such as Li-ion and LiPo equalization, fast charging, data storage, cycle charging and discharging.
- Automatically stops charging when batteries are fully charged, increasing safety.
Battery compatibility:
- Compatible with a wide range of battery types:
- LiFe, LiIon, LiPo (1-6S)
- LiHv (1-6S)
- Tide acid (Pb, 1-12S)
- NiMH/NiCd (1-16S)
- Automatic battery type recognition function and intelligent charging algorithms for efficient charging and discharging.
Robust design:
- Aluminum alloy construction ensures durability and elegant appearance.
- Advanced cooling air channel for highly efficient heat dissipation ensures optimal performance during long use.
Security features:
- It is equipped with alarms for abnormal voltage and incorrect setting of the number of cells, which provides a safer charging environment.
- Includes automatic adjustment of charging parameters and an automatic shutdown mechanism for increased safety.
Technical specifications
- Input voltage: AC 100-240V / DC 10-30V
- Output voltage: DC 1-30V
- Maximum input current: DC 35A
- Charging current: 0.2-20A per channel
- Discharge current: 0.2-1.5A per channel
- Balance current: 1.5A per cell (max)
- Maximum discharge power: 15W per channel
-
Maximum charging power:
- AC: 200W
- DC: 500W per channel
- Parallel charging power/current: 800W / 35A
- Parallel discharge power/current: 30W / 3A
- Working temperature: 0-40°C
- Storage temperature: -20 to 60°C
- Dimensions: 142 x 135 x 64 mm
- Weight: About 700g
Package contains
- 1x ISDT K2 Air charger
