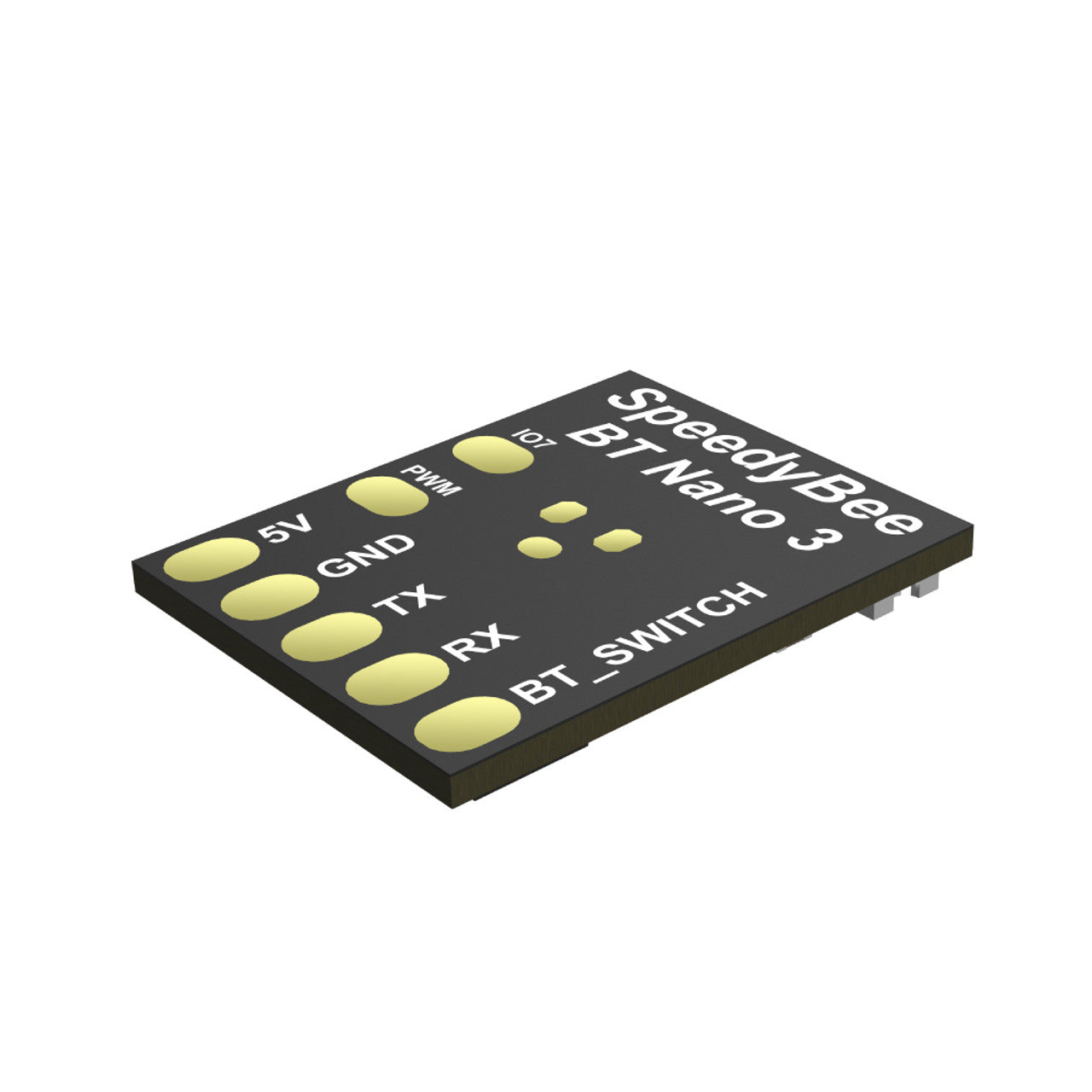

Configuration of SpeedyBee BT Nano 3 Wireless FC The SpeedyBee BT Nano 3 is a wireless Bluetooth module that allows you to easily control your flight controller settings via the SpeedyBee app. The module will automatically determine the "on/off" status of the controller to turn off Bluetooth during flight to avoid various interference and device signal interference. -Fully wireless flight controller setup -Bluetooth automatic shutdown to prevent interference -Password protection -Compact Nano size, light weight and easy installation Specifications: Product name: SpeedyBee BT Nano 3 Operating voltage: 5V Working current: MAX-87mA (5V) Bluetooth Low Energy: Supports WiFi: Supports. It turns on automatically only when the firmware of the module itself is upgraded. Communication port: UART Baud rate: 115200 Bluetooth Automatically Turns Off: Enabled by default, the module automatically detects FC arming/unarming status. During the flight of the drone, the Bluetooth function will be disabled to prevent the Bluetooth signal from interfering with other wireless devices. BT Switch Pad: The Bluetooth function will be disabled when it receives a weak signal. See the BT Switch section of the manual for detailed instructions Power indicator: Lights up red - Indicates that the module is powered. Working status indicator: - Blinking white: Indicates that UART communication with FC is abnormal, please check whether the connection and setting are correct. - White light: Indicates that the communication with the FC is normal, you can use the app to set wireless parameters - Flashing green: Indicates that a wireless signal is connecting - Green light: Indicates that the connection with the application has been successful Dimensions: 14 x 11 x 0.8 mm Weight: 5g
