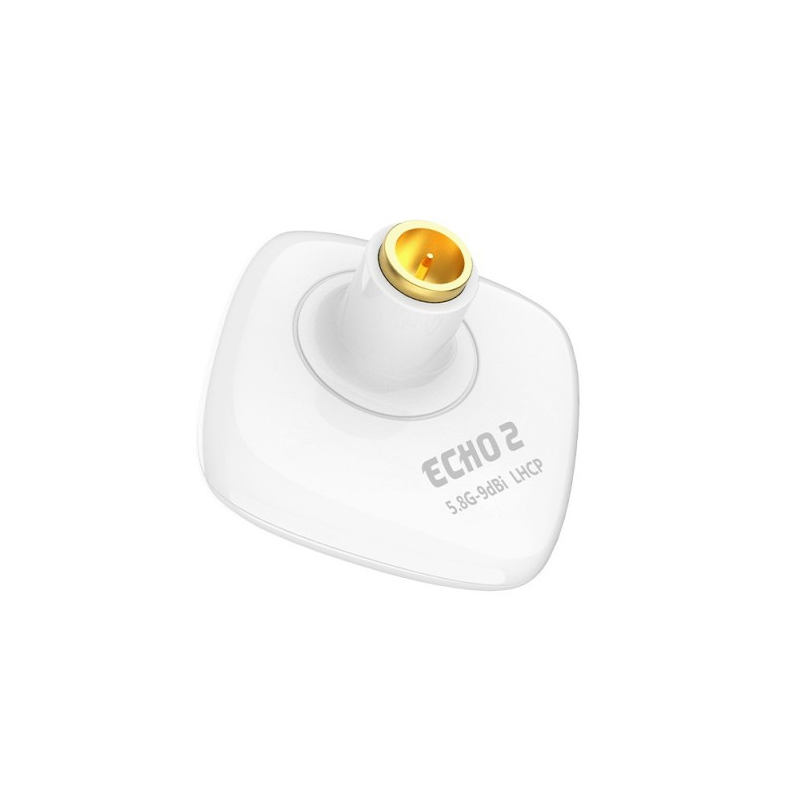

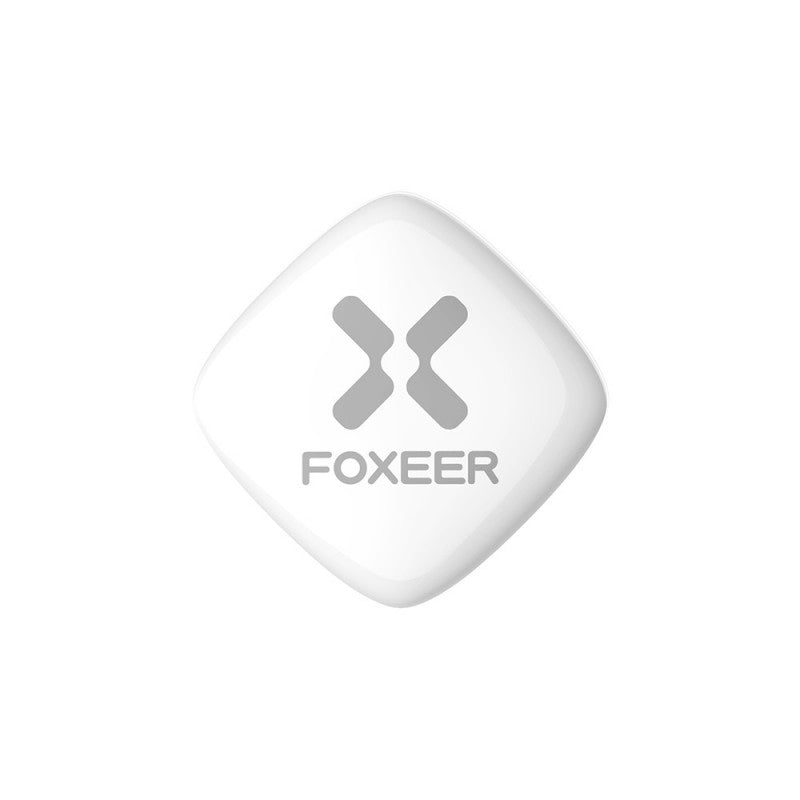

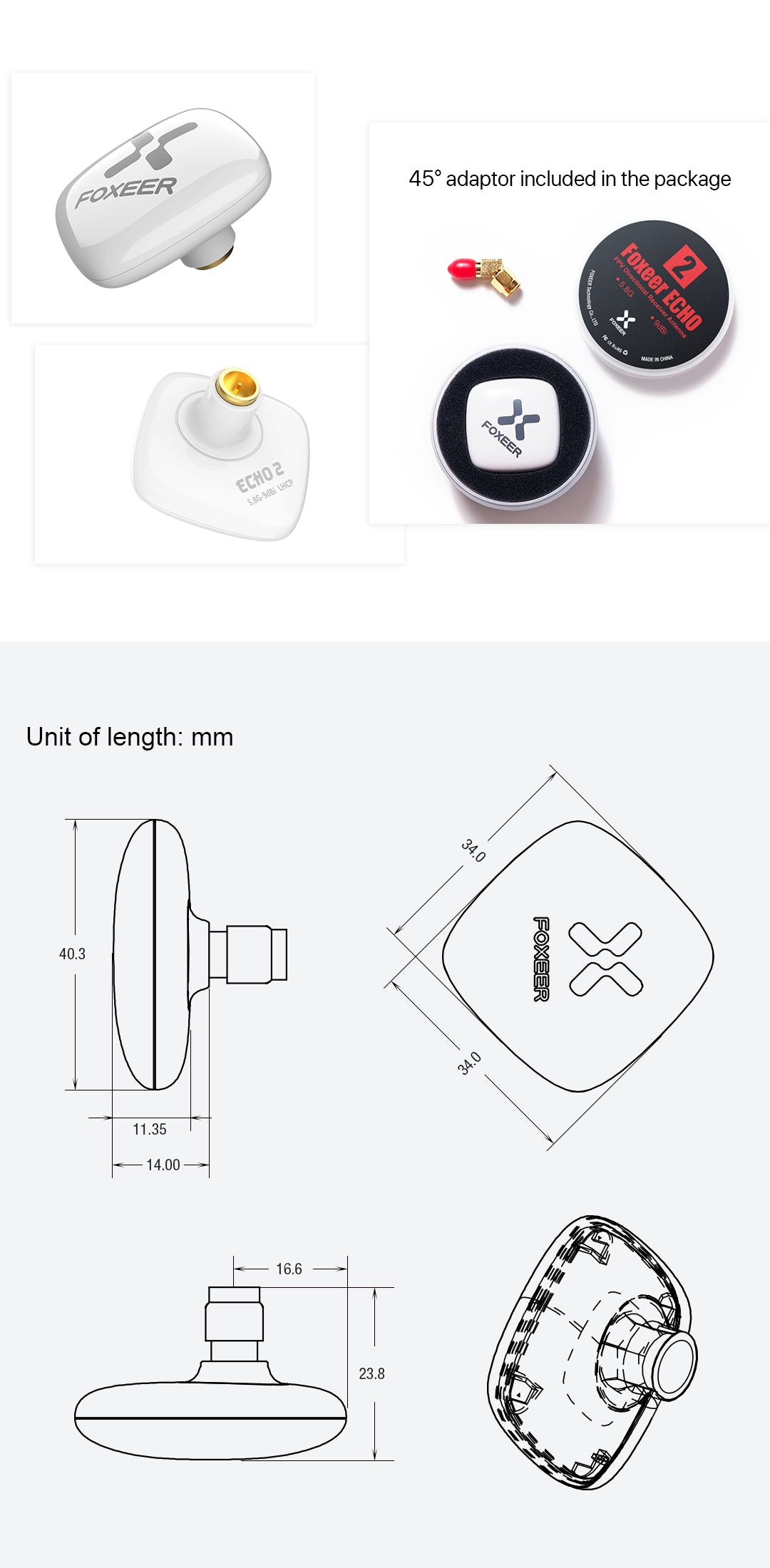

Patch antenna Echo 2 5.8G 9dBi (RHCP, SMA) Foxeer's new Echo Patch 2 5.8G antenna with dual layer plate and 9dBi gain. It has the same size as its predecessor, but better performance. Specifications: Center frequency: 5.8 GHz Gain: 9dBi Axial ratio: Close to 1 Bandwidth: 5.5G-6GHz Beam angle: 84.7° Radiation efficiency: 98% Impedance: 50Ω SWR: <1.25 at mid frequency Connector: SMA Size: 40*22 mm Polarization: RHCP Connector: SMA Color white Case material: PC Weight: 8g The package includes: 1x Echo Patch 2 5.8G antenna
