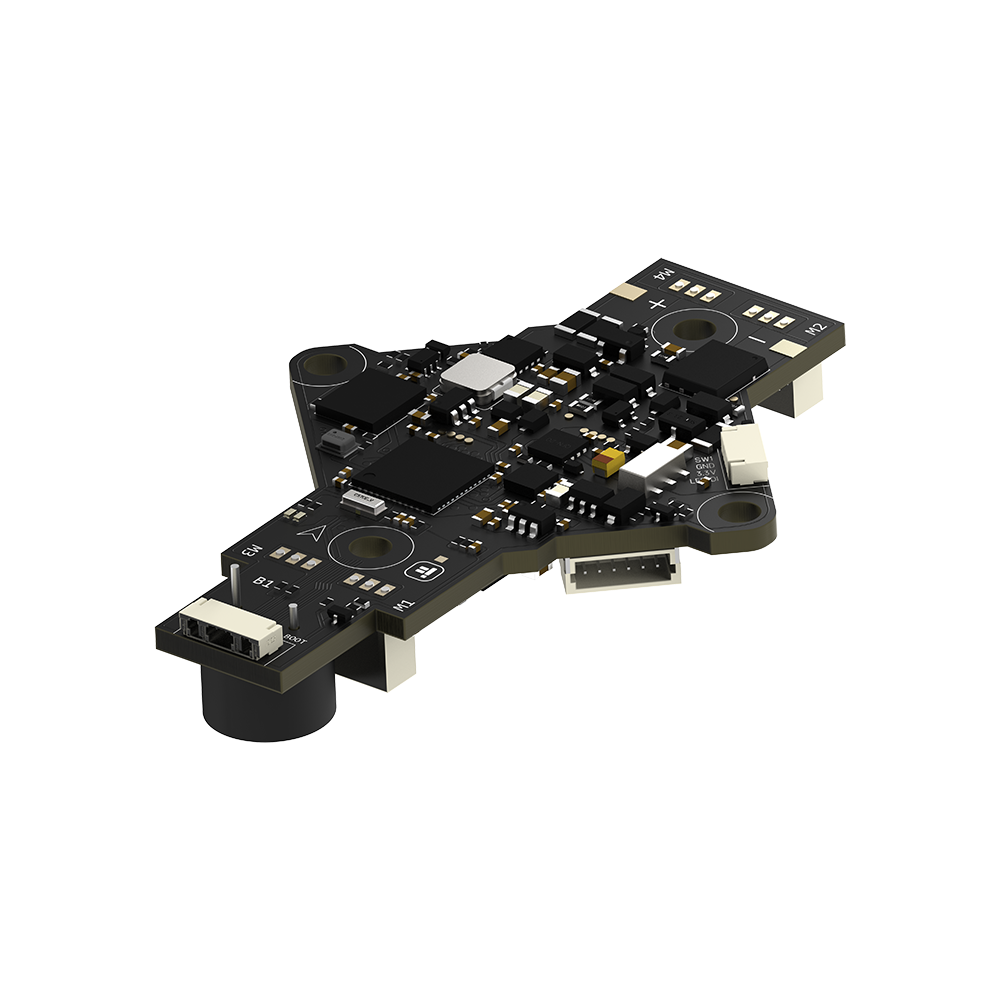

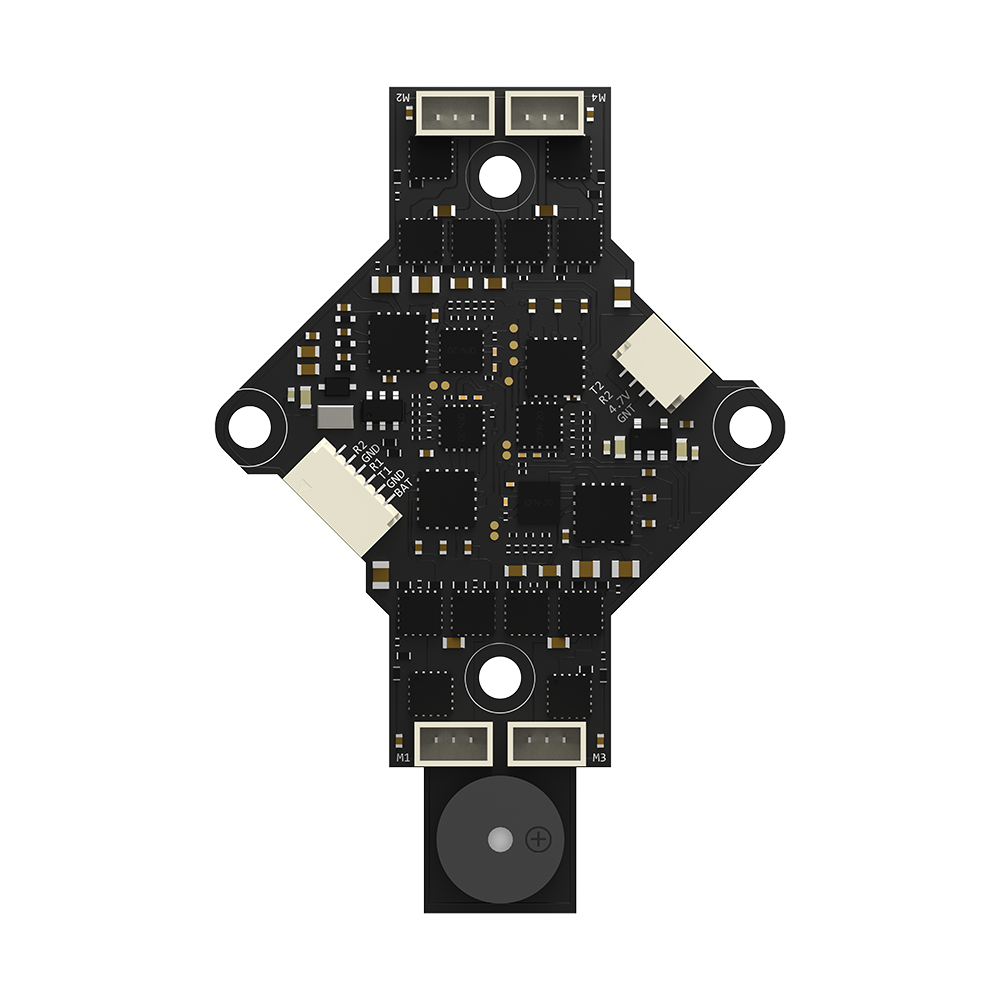

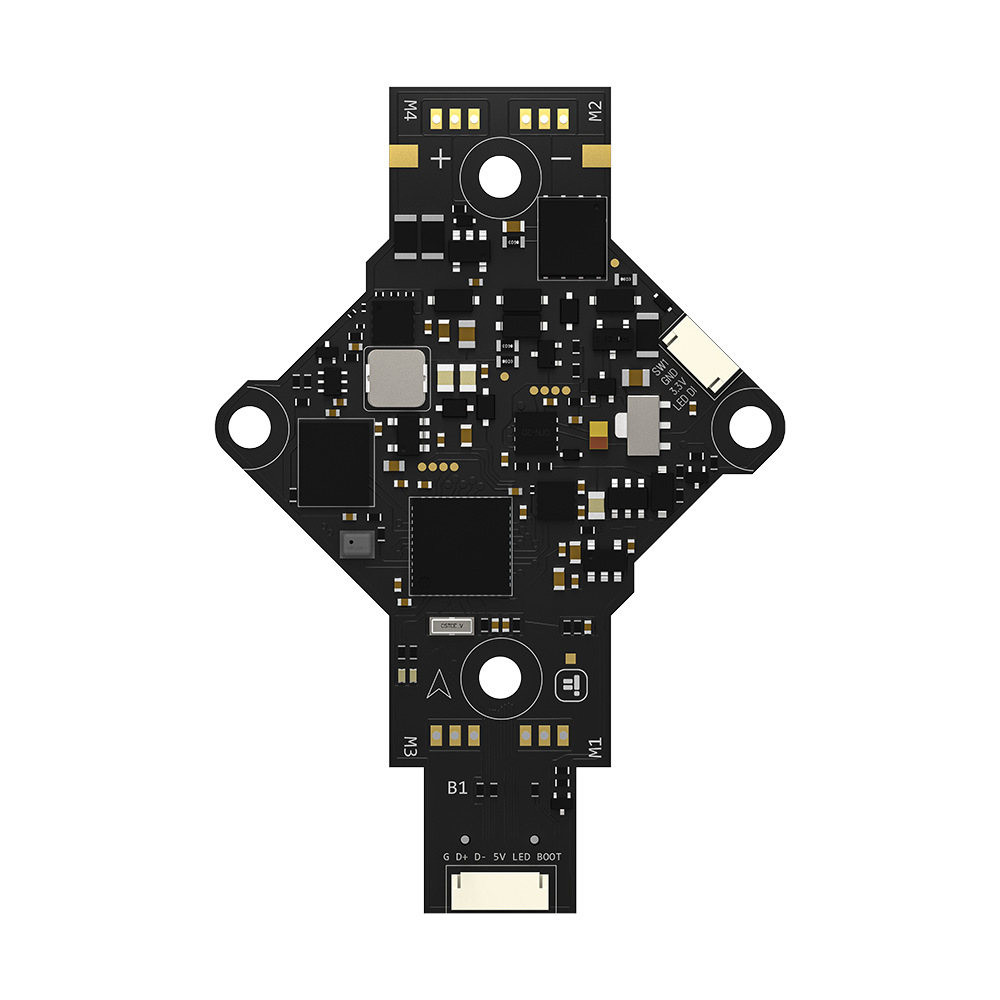

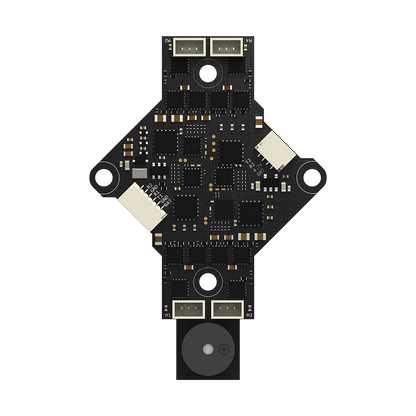

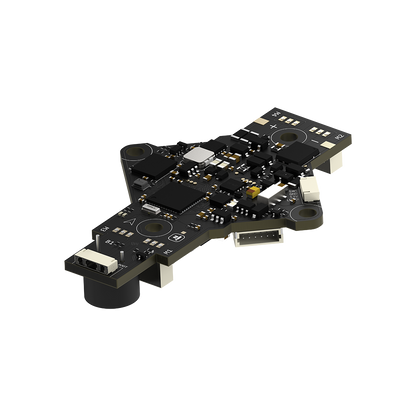

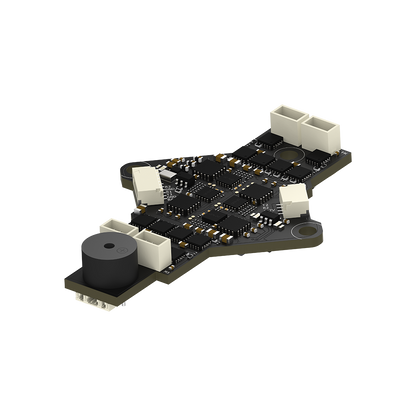

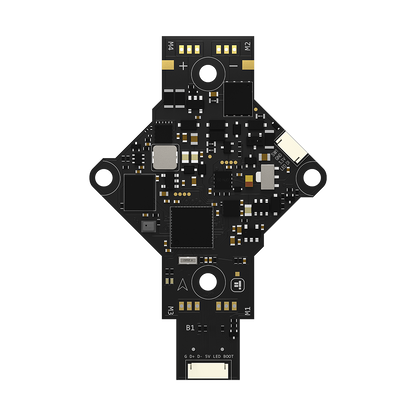

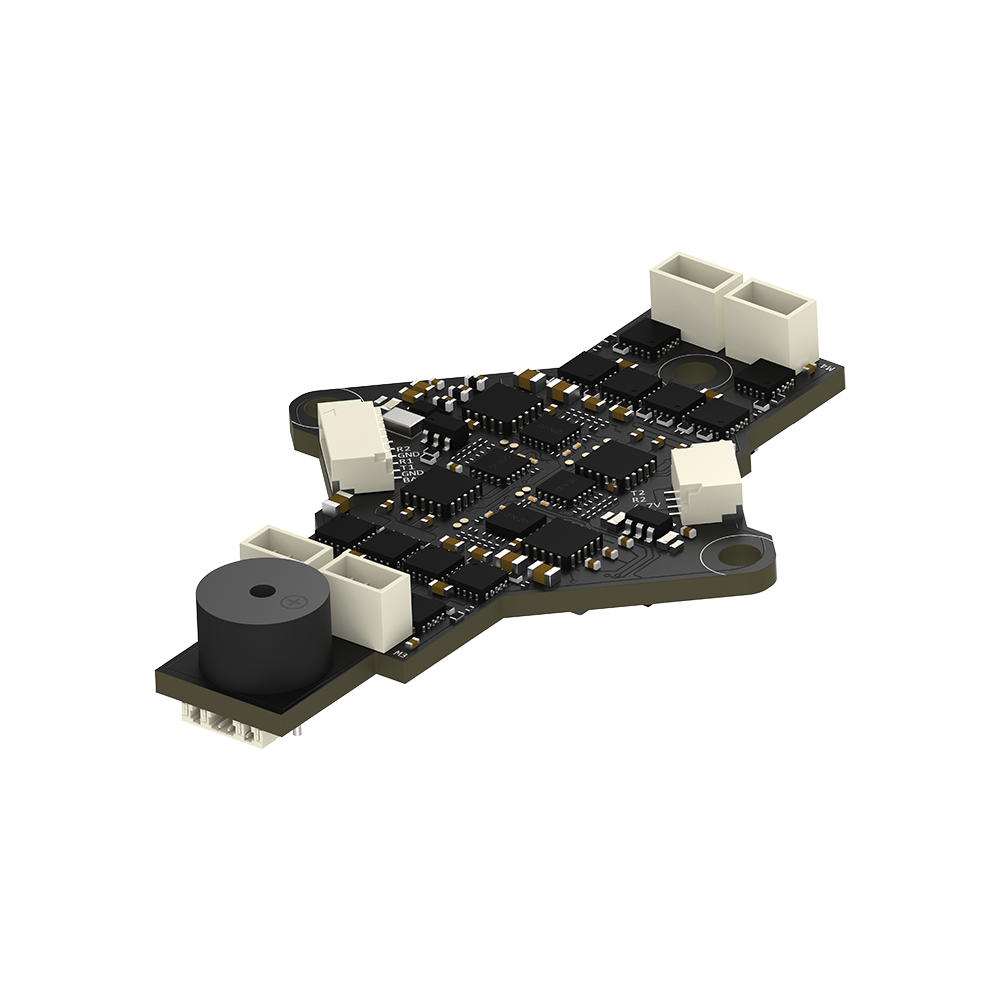

Defender 16/20 F411 AIO

The new generation F411 AIO is designed specifically for the Defender 16/20. This all-in-one FC is future proof and offers plenty of room for future flight firmware development. It is lightweight and has a compact design. Highlights include DJI O3 and Caddx Vista/Polar pass-through connector, HD VTX switch function, receiver protocol switching function and built-in buzzer.

FC Specifications:

MCU: STM32F411
Gyroscope: ICM42688
Blackbox: 16 MB integrated flash
BEC output: 5V 2A
WS2812 LED strip: Yes
Buzzer: Yes
Barometer: No
Connector: SH1.0 to Type C adapter
OSD: N/A (HD VTX version)
FC Firmware: IFLIGHT_Defender_F411
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 61*41mm
Input voltage: 2-3S, support LIHV battery

ESC Specifications:

ESC MCU: BB21
Driver: FD6288
Input voltage: 2-3S Support LIHV battery
Output current: 20A
ESC firmware: Q-H-50 - Bluejay, 0.16
Current sensor: 200 ratio (1/10 mV/A)
BEC: NO
ESC telemetry: Not supported
Two-way DShot: Yes
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

The package includes:
1 x Defender 16/20 F411 AIO
1 x set of cables
