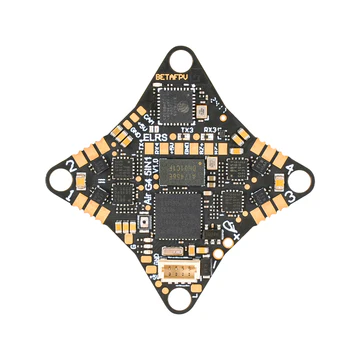

AIO FC BetaFPV Air Brushless (5 IN 1)
Air Brushless Flight Controller is the first 1S controller using the STM32G473CEU6 processor, which provides a 55% increase in computing speed and lightning response, surpassing the F411 controller. This module is equipped with a high-end gyroscope ICM42688P and an integrated 5.8G VTX with an output power of 25mW to 400mW. It offers a 5IN1 (3.6g), which takes your drone's movement accuracy and stability to a new level, perfect for the ultra-light 1S whoop drones of the future. With fingertip control, this module delivers a unique price-performance ratio, leaving most of the competition behind.
Specifications
Control unit (FC)

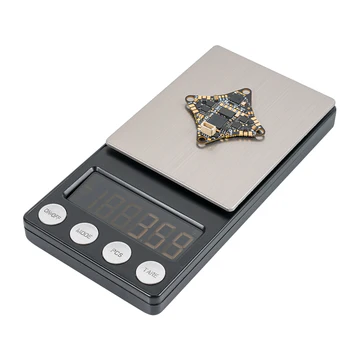

- Weight: 3.6g (5IN1 version)
- Mounting Hole Size: 26mm x 26mm
- CPU: STM32G473CEU6 (168 MHz)
- Six-axis gyro: ICM42688P (SPI connection)
- Blackbox memory: 16 MB
- Sensors: Voltage and Current
- 5V BEC: 5V 3A
- USB port: SH1.0 4-Pin
- Integrated ESC: 5A continuous
- Receiver (RX): Serial ELRS 2.4G (V3.4.3) (5IN1 version only)
- 5IN1 version: FC + ESC + OSD + VTX + RX
Electronic Speed Controller (ESC)
- Input voltage: 1S
- Firmware FC: Betaflight_4.5.0_BETAFPVG473
- ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay Hardware
- Supported signals: D-shot300, D-shot600
Video transmitter (VTX)
- Output power: 25/100/200/400/PIT
- Frequency: 5.8 GHz, 48 channels (Raceband: 5658~5917 MHz)
- Channel Selection: SmartAudio2.0
- Modulation: FM
- Frequency control: PLL
- Frequency stability: ±100 kHz (Typ.)
- Frequency accuracy: ±200 kHz (Typ.)
- Channel carrier deviation: ±1.5 dB
- Antenna port: 50 Ω
- Operating temperature: -10 ℃ to +80 ℃
Package contents
- 1 x Air Brushless Flight Controller
- 1 x 2.4g Antenna (5IN1 version only)
- 1 x Type-C to SH1.0 adapter
- 1 x SH1.0 4-Pin adapter cable
- 1 x 5.8g VTX antenna
- 1 x BT2.0 U Whoop Cable Pigtail (40mm)
- 4 x Self-tapping screws M1.4*4
- 4 x Dampers
